Place of Origin:
Hunan, China
Brand Name:
PINSHENG ENERGY
Model Number:
PE-ESS-08
Document:
| Model | LS51100-FP5 | LS51200-FP5 | LS51300-FP5 | LS51400-FP5 | LS51500-FP5 | LS51600-FP5 |
|---|---|---|---|---|---|---|
| Inverter Parameters | ||||||
| PV Input Power | 4000W | |||||
| PV Max Charge Current | 80A | |||||
| Max PV Voltage | 145VDC | |||||
| MPPT Voltage Range | 64~130VDC | |||||
| Number of MPPT | 1 | |||||
| EPS Output Power | 5000W | |||||
| EPS Output Voltage | 230VAC | |||||
| EPS Output Current | 21.7A | |||||
| EPS Output Frequency | 50/60HZ | |||||
| EPS Transfer Time | ≤ 20ms | |||||
| Waveform | Pure Sine Wave | |||||
| AC Charge Current | 60A | |||||
| Battery Parameters | ||||||
| Battery Type | LiFePo4 | |||||
| Rated Voltage | 51.2V | |||||
| Rated Capacity | 100AH | 200AH | 300AH | 400AH | 500AH | 600AH |
| Energy (25°C, 0.5C) | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh |
| Safety Standard | IEC62619, UN38.3, MSDS | |||||
| System Parameters | ||||||
| Display | 7 inch touch LCD | |||||
| Operating Temperature | -10°C~60°C | |||||
| Humidity | 15%~85% (No condensation) | |||||
| Size (W*D*H) | 640*400*1068mm | 640*400*1336mm | 640*400*1604mm | 640*400*1872mm | 640*400*2140mm | 640*400*2408mm |
| Weight | 88kg | 136kg | 184kg | 232kg | 280kg | 328kg |
Hunan Pinsheng Energy Technology Co., LTD located in Changsha City, Hunan Province, focuses on developing and producing Li-ion batteries and battery system integration. Through years of development and research, we have formed a complete industry chain from research and production to sales. Our lithium-ion batteries feature longer cycle life, higher security and reliability, higher energy density, and superior performance. Products are widely used in electric bikes, E-scooters, electric motorcycles, electric tricycles, golf carts, forklifts, electric vehicles, UPS systems, telecommunication systems, and off-grid wind solar energy storage.
Pinsheng Energy Battery products sell well at home and abroad, with strict quality guarantee systems to ensure high-quality products. We prioritize customers' needs and continuously improve product quality and services. With our own R&D team, we offer customized products and have become a competitive manufacturer dedicated to being a top OEM/ODM provider in China.
We use high-hardness custom sponge to strengthen battery protection during shipping.

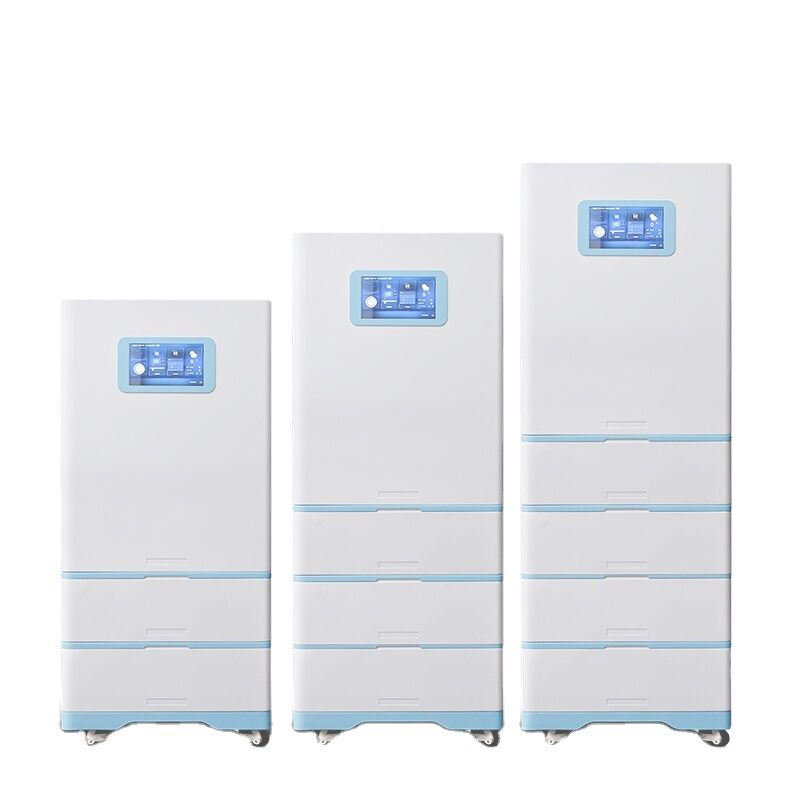

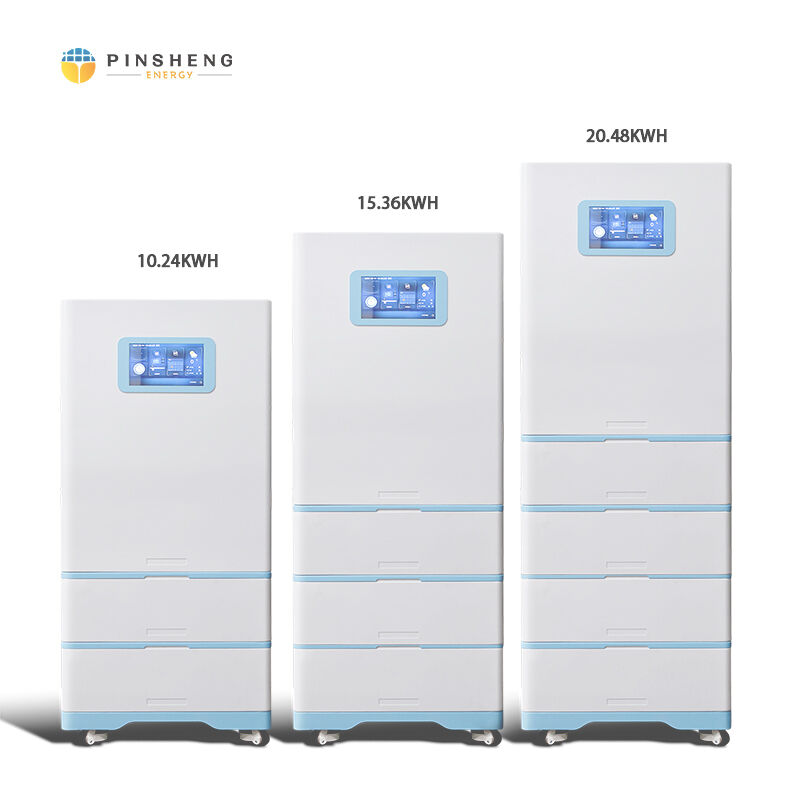

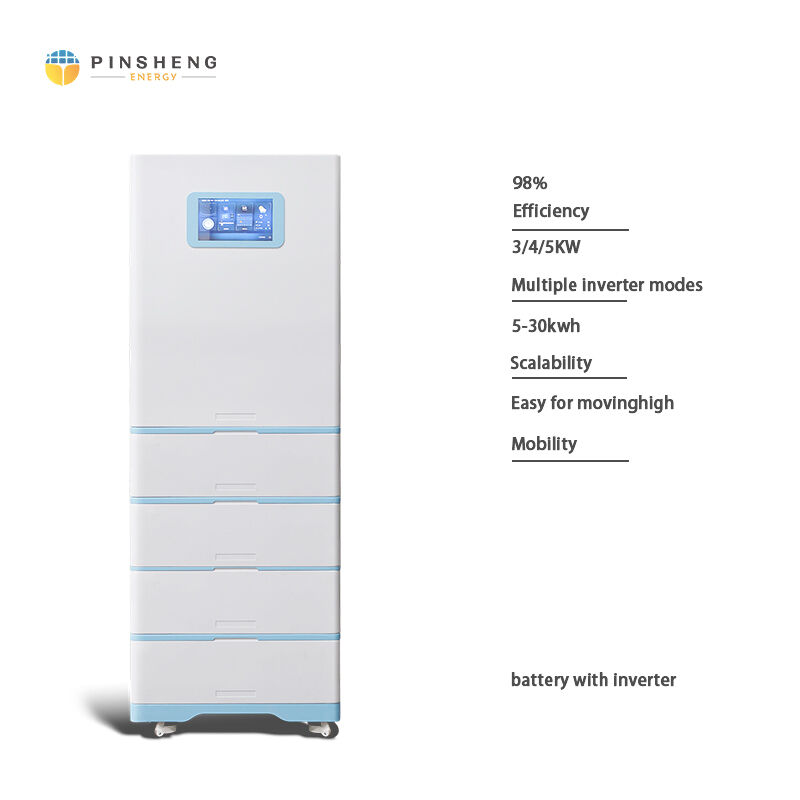

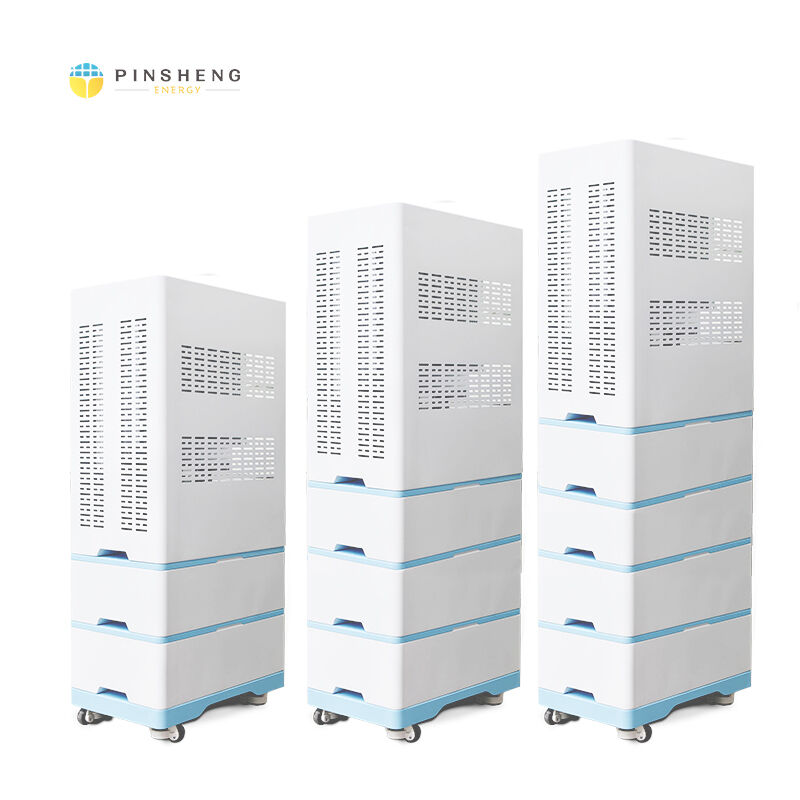

Competitive price residential home use solar power LiFePO4 lithium 10-30kWh energy systems and energy storage batteries.
