Name: Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: PE-S10
Price: 6.00 USD
Availability: InStock

Home > Products > Energy Storage Lithium Battery >

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

48v lifepo4 solar battery

stacked energy storage system

long cycle life lithium battery

Place of Origin:

HUNAN

Brand Name:

Pinsheng

Model Number:

PE-S10

Document:

Product Brochure PDF

Request A Quote

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Product Details

Max Load Quantity(cells):

Battery Type:

Semi-solid State

Cycle Life:

6000 Cycles

Dimension (L*W*H):

1050*600*420

Application:

Home Appliances, Electric Power Systems, Solar Energy Storage Systems

Weight:

Customize

Operating Temperature(℃):

-20-60

Cathode Materials:

LiFePO4

Battery Type:

Lifepo4/lithium Battery

Voltage:

48V/51.2V

Capacity:

50ah 100ah Etc

Cycle Life:

6000 Times

Size:

Customized Flexible Size

Apllication:

Household Energy Storage

Protection:

Built-in Smart BMS

OEM/ODM:

Accepatable

MOQ:

1 Pcs

Warranty:

10YEARS

Payment & Shipping Terms

Minimum Order Quantity

Price

CN¥6,158.16-6,648.01

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Get Best Price

Wholesale Price Solar 48v 5120wh 10kwh ess All in One Stackable Lithium Battery Includes Inverter Home Energy Storage System

Get Best Price

PINSHENG Wholesale Lifepo4 5kw Camping Tragbare Powerstation Solar Generator Waterproof Portable Power Station 5000w Industry

Get Best Price

Factory 5kw Camping Tragbare Power Station Lifepo4 Battery Portable Solar Generator Industry Waterproof Powerstation 5000w

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

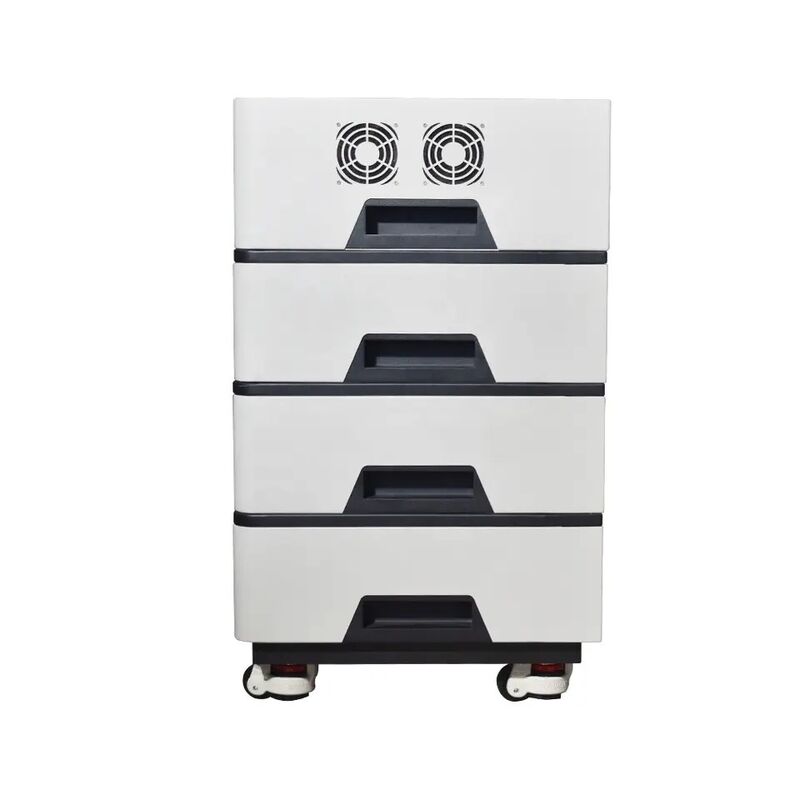

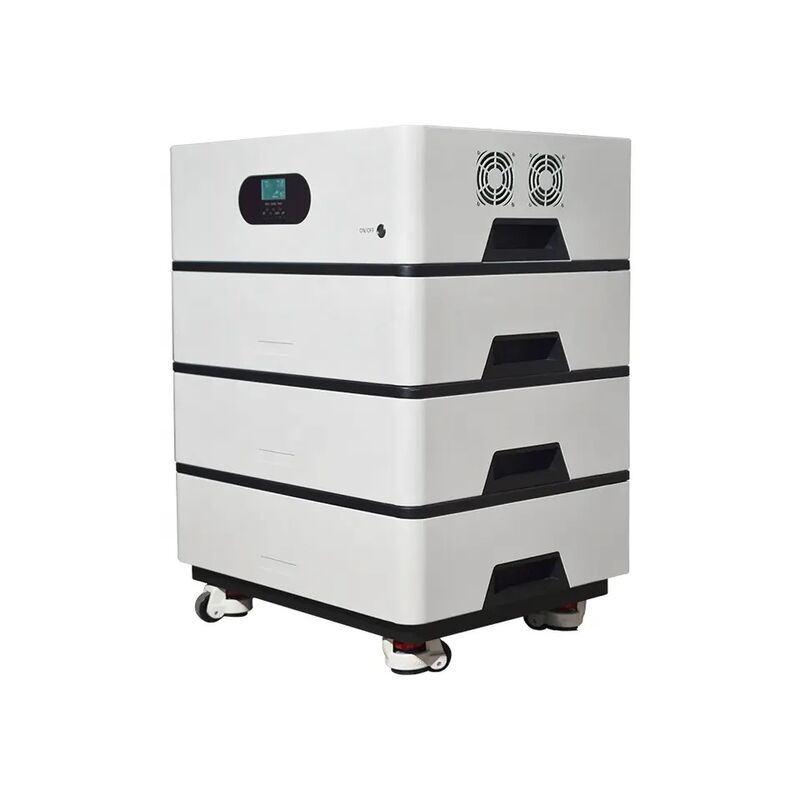

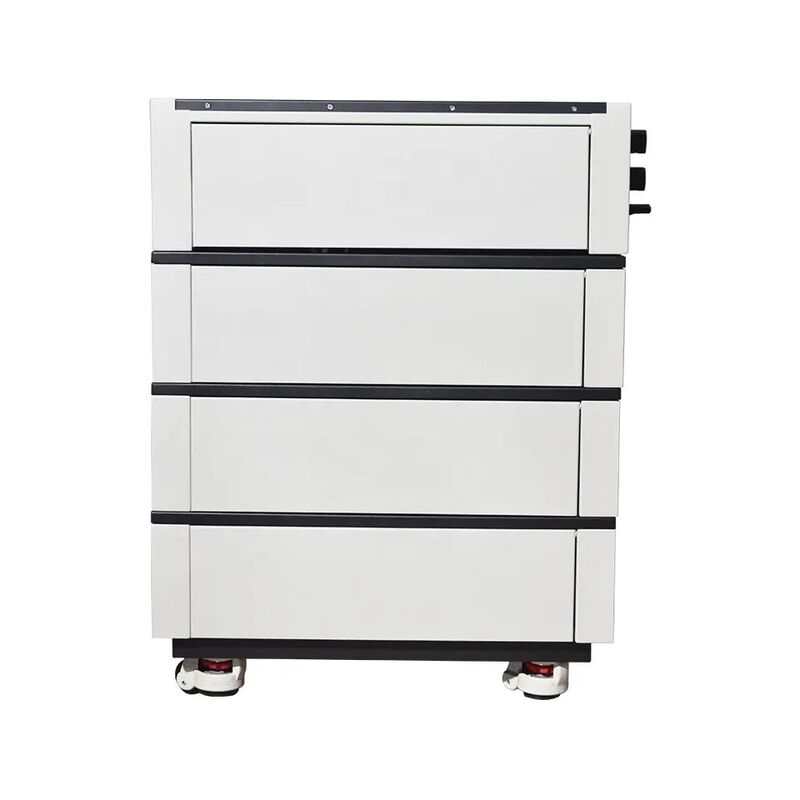

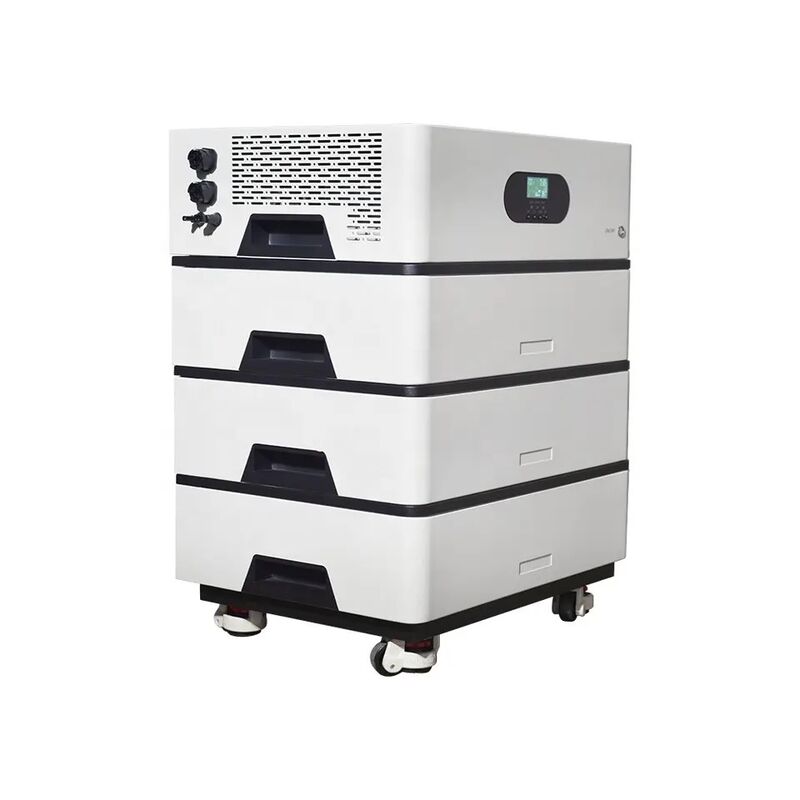

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Product Overview

Technical Specifications

Performance Parameters	10KW	15KW	20KW	25KW
Output Power	10KW	15KW	20KW	25KW
Phase	Simplex	Simplex	Simplex	Simplex
Maximum Output Power	3KW/4KW/5KW optional	3KW-5KW optional	3KW-5KW optional	3KW-5KW optional
Rated Voltage	51.2V	51.2V	51.2V	51.2V
Rated Capacity	200AH	300AH	400AH	500AH
Continuous Discharge Current	100A	100A	100A	100A
Peak Maximum Discharge Current	110A/10S	110A/10S	110A/10S	110A/10S
Standard Charging Current	50A	50A	50A	50A
Fast Charge Current	100A	100A	100A	100A
Number of Expandable Batteries	2~15	3-15	4-15	5-15
Optional Capacity Range	10.24~76.8KWH	15.36-76.8KWH	20.48-76.8KWH	25.6-76.8KWH
Cooling Method	Self-cooling	Self-cooling	Self-cooling	Self-cooling
Battery Type	Lithium Iron Phosphate	Lithium Iron Phosphate	Lithium Iron Phosphate	Lithium Iron Phosphate
Design Life	＞15 years@25℃	＞15 years@25℃	＞15 years@25℃	＞15 years@25℃
Cycle Life	≈10000 times	≈10000 times	≈10000 times	≈10000 times
Frequency	50HZ/60HZ auto detect	50HZ/60HZ auto detect	50HZ/60HZ auto detect	50HZ/60HZ auto detect
Grid Voltage Range	230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%	230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%	230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%	230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2%
PV Maximum Input Power	4200W	4200W	4200W	4200W
MPPT Voltage Range	60-115Vdc	60-115Vdc	60-115Vdc	60-115Vdc
Charging and Discharging Efficiency	>92%	>92%	>92%	>92%
Battery Voltage Range	40.0Vdc~60Vdc ± 0.6Vdc (LCD screen configurable)	40.0Vdc~60Vdc ± 0.6Vdc (LCD screen configurable)	40.0Vdc~60Vdc ± 0.6Vdc (LCD screen configurable)	40.0Vdc~60Vdc ± 0.6Vdc (LCD screen configurable)
Warranty	Battery (10 years) Inverter (5 years)	Battery (10 years) Inverter (5 years)	Battery (10 years) Inverter (5 years)	Battery (10 years) Inverter (5 years)
Inverter Size/Weight	602403319mm/15KG	602403139mm/15KG	602403139mm/15KG	602403139mm/15KG
Battery Size/Weight	602403200mm/55KG (single layer)	602403200mm/55KG (single layer)	602403200mm/55KG (single layer)	602403200mm/55KG (single layer)
Chassis Size/Weight	60240382mm/6KG	60240382mm/6KG	60240382mm/6KG	60240382mm/6KG
Installation Method	Stacked	Stacked	Stacked	Stacked

Certifications

Certified Product: CE, UN38.3, MSDS, Shipping, Dangerous Package

Cell Certification: CE, UL, IEC 62109-1 & -2, IEC 62477, EN61000, UN38.3

Packaging: Carton Package, Wooden Case

Company Profile

Hunan Pinsheng Energy Technology Co., LTD is located in Changsha City, Hunan Province. We focus on developing and producing Li-ion battery and battery system integration. Through many years of development and research, we have formed a complete industry chain from research, production to sales.

Our lithium ion batteries feature longer cycle life, higher security and reliability, higher energy density, and other superior performance. Our products are widely used in:

Electric bikes, E-scooters, electric motorcycles, electric tricycles
Golf carts, forklifts, electric vehicles
UPS systems, telecommunication systems

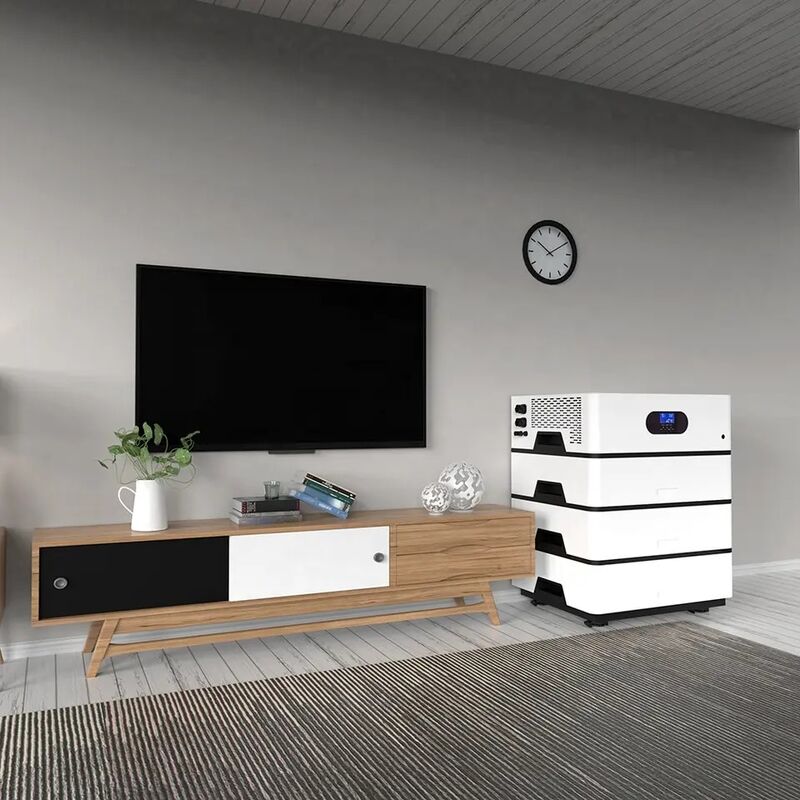

Off-grid wind & solar energy storage systems

Pinsheng Energy Battery products sell well both domestically and internationally. We maintain a strict quality guarantee system to ensure high-quality products. We prioritize customers' needs and continuously improve our product quality and services.

With our own R&D team, we can accommodate customized product requirements. Pinsheng Energy has become a competitive manufacturer in China, dedicated to being a top OEM & ODM manufacturer.
