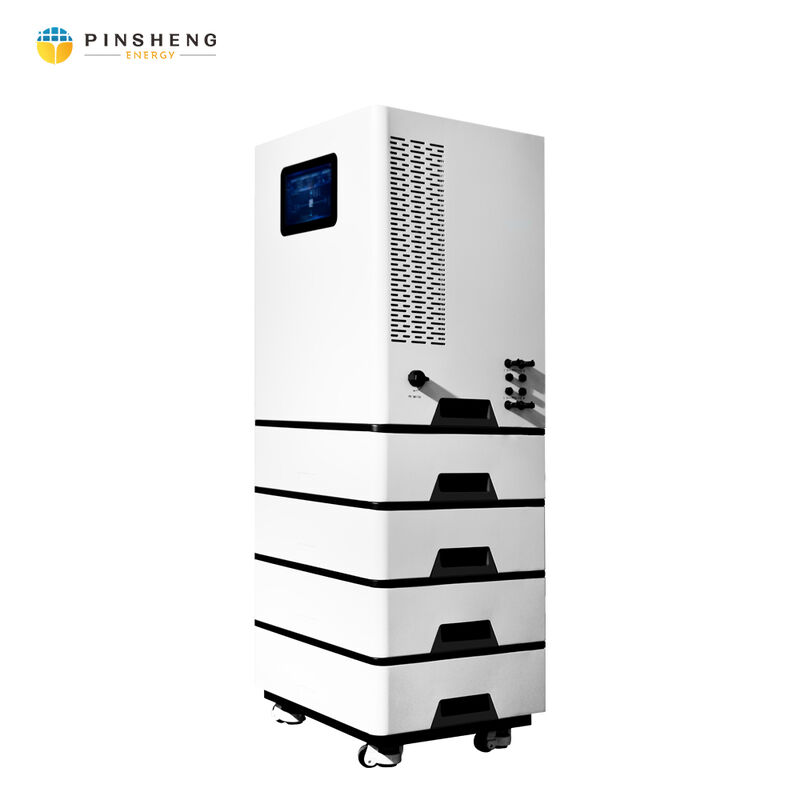

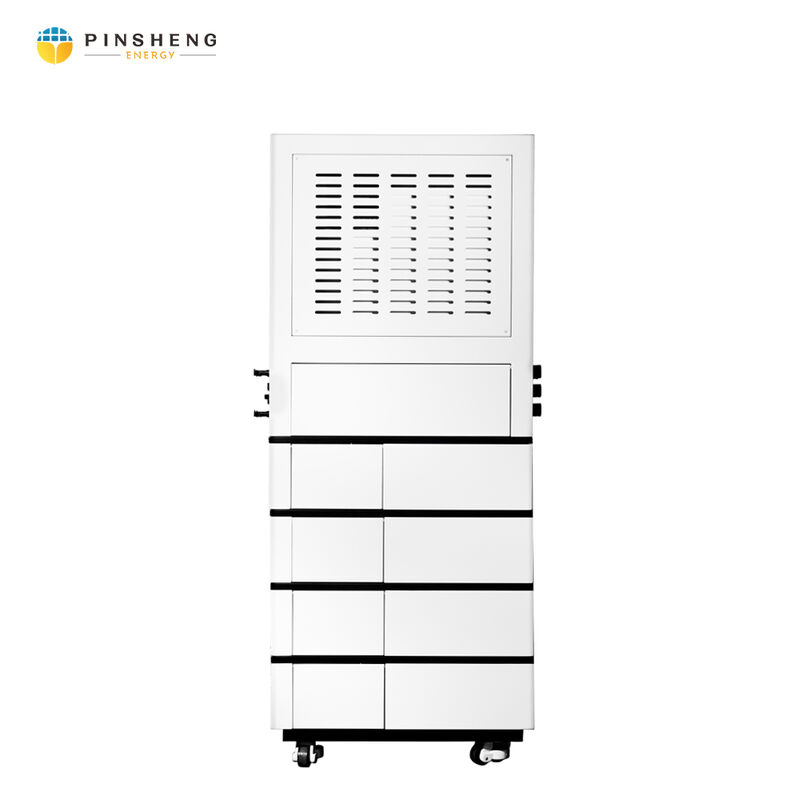

Advanced home energy storage system featuring stackable 25kWh LiFePO4 lithium ion battery cabinets with 3-phase capability for reliable industrial backup power solutions.
| Model | LS51100-FP5 | LS51200-FP5 | LS51300-FP5 | LS51400-FP5 | LS51500-FP5 | LS51600-FP5 |
|---|---|---|---|---|---|---|
| Inverter Parameters | ||||||
| PV Input Power | 4000W | |||||
| PV Max Charge Current | 80A | |||||
| Max PV Voltage | 145VDC | |||||
| MPPT Voltage Range | 64~130VDC | |||||
| Number of MPPT | 1 | |||||
| EPS Output Power | 5000W | |||||
| EPS Output Voltage | 230VAC | |||||
| EPS Output Current | 21.7A | |||||
| EPS Output Frequency | 50/60HZ | |||||
| EPS Transfer Time | ≤ 20ms | |||||
| Waveform | Pure Sine Wave | |||||
| AC Charge Current | 60A | |||||
| Battery Parameters | ||||||
| Battery Type | LiFePO4 | |||||
| Rated Voltage | 51.2V | |||||
| Rated Capacity | 100AH | 200AH | 300AH | 400AH | 500AH | 600AH |
| Energy (25°C, 0.5C) | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh |
| Safety Standard | IEC62619, UN38.3, MSDS | |||||
| System Parameters | ||||||
| Display | 7 inch touch LCD | |||||
| Operating Temperature | -10°C~60°C | |||||
| Humidity | 15%~85% (No condensation) | |||||
| Size (W*D*H) | 640*400*1068mm | 640*400*1336mm | 640*400*1604mm | 640*400*1872mm | 640*400*2140mm | 640*400*2408mm |
| Weight | 88kg | 136kg | 184kg | 232kg | 280kg | 328kg |
Hunan Pinsheng Energy Technology Co., LTD, located in Changsha City, Hunan Province, specializes in developing and producing Li-ion batteries and battery system integration. Through years of development and research, we have established a complete industry chain from research and production to sales.
Our lithium ion batteries feature longer cycle life, enhanced security, superior reliability, and higher energy density. Products are widely used in electric bikes, e-scooters, electric motorcycles, electric tricycles, golf carts, forklifts, electric vehicles, UPS systems, telecommunication systems, and off-grid wind & solar energy storage applications.
Pinsheng Energy Battery products sell well both domestically and internationally, supported by a strict quality guarantee system. We prioritize customer needs and continuously improve product quality and services through our dedicated R&D team, offering customized OEM & ODM solutions.
All batteries are protected with high-hardness custom sponge reinforcement to ensure safe transportation and delivery.
