Name: All-in-one 48v Lifepo4 10kwh 15kwh 20kwh 25kwh 30kwh Battery Solar Inverter and Battery Energy Storage System for Home
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: PSWAIO48100
Price: 6.00 USD
Availability: InStock

Home > Products > Energy Storage Lithium Battery >

All-in-one 48v Lifepo4 10kwh 15kwh 20kwh 25kwh 30kwh Battery Solar Inverter and Battery Energy Storage System for Home

48V LiFePO4 solar battery storage

home energy storage system with inverter

10kWh to 30kWh lithium battery backup

Place of Origin:

Hunan, China

Brand Name:

Pinsheng

Model Number:

PSWAIO48100

Document:

Product Brochure PDF

Request A Quote

All-in-one 48v Lifepo4 10kwh 15kwh 20kwh 25kwh 30kwh Battery Solar Inverter and Battery Energy Storage System for Home

Product Details

Battery Type:

Lithium Ion

Output Power Range:

10~20 KWh

System Type:

Stackable

Communication Port:

RS-232, Rs485

Protection Class:

IP64

Grid Connection:

Hybrid Grid

Product Name:

All In One Home Energy Storage System

Nominal Voltage:

48V

Nominal Capacity:

50Ah,100Ah,200Ah, 400Ah, 1000Ah

Battery Type::

Lithium Ion Battery

OEM/ODM:

Avaiable

Warranty:

5Years

Cycle Life:

6000 Times

Payment:

Paypal/TT/Western Union

Shipping:

UPS DHL Fedex TNT

Apllication:

Home Solar Energy Storage Sysytem

Payment & Shipping Terms

Minimum Order Quantity

Price

CN¥6,850.95-7,690.70

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Get Best Price

Wholesale Price Solar 48v 5120wh 10kwh ess All in One Stackable Lithium Battery Includes Inverter Home Energy Storage System

Get Best Price

PINSHENG Wholesale Lifepo4 5kw Camping Tragbare Powerstation Solar Generator Waterproof Portable Power Station 5000w Industry

Get Best Price

Factory 5kw Camping Tragbare Power Station Lifepo4 Battery Portable Solar Generator Industry Waterproof Powerstation 5000w

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

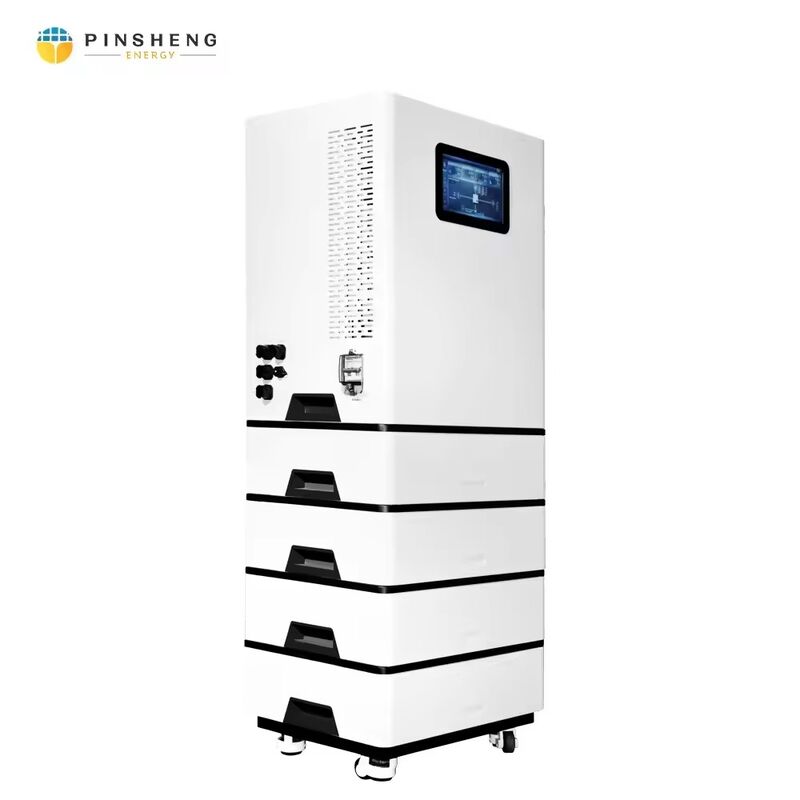

All-in-one 48V LiFePO4 Solar Inverter and Battery Energy Storage System

System Overview

Complete energy storage solution integrating solar inverter and LiFePO4 battery technology for residential applications.

Basic Parameters

Battery Type	LiFePO4
Communication Port	RS485 WIFI or WAN
Protection Level	IP20
Operating Temperature	-20°C - 55°C
Cooling Method	Intelligent air cooling
Built-in Interface	RS485
Installation Way	Stackable
Noise	<25dB
Parallel Configuration	Up to 48-112 battery packs in parallel

Battery Specifications

Power	15kWh	20kWh	35kWh
Battery Module Voltage Range	48-112V/85-400V
Battery Rated Voltage	51.2V
Battery Module Quantity	1	2	3
Max Charge/Discharge Current	50A/100A

Cabinet Dimensions

15kWh (excluding bottom wheel)	620 × 438 × 475mm
20kWh (excluding bottom wheel)	640 × 438 × 624mm
35kWh (excluding bottom wheel)	640 × 438 × 791mm

Inverter Specifications

Inverter Output	7kW	10kW	15kW
Rated Output Power	7600VA	11000W	16500W
Rated Output Voltage	230Vac (L/N/PE single-phase)
Output Waveform	Pure sine wave
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Protection Grade	IP20, indoor use
Ambient Temperature	-20°C - 55°C	-10°C - 55°C, >45°C Derating
