Product Description

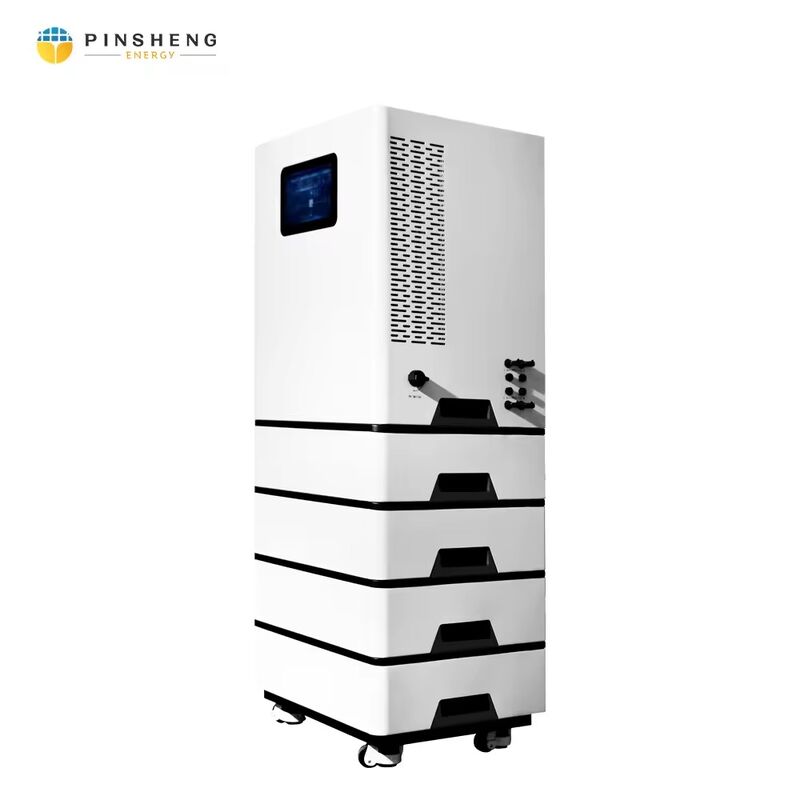

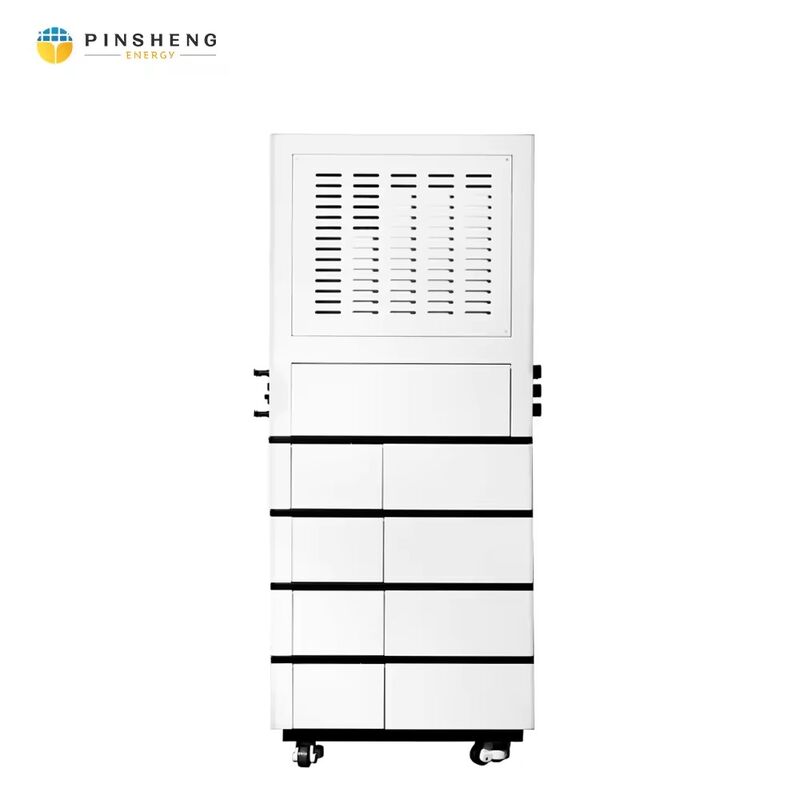

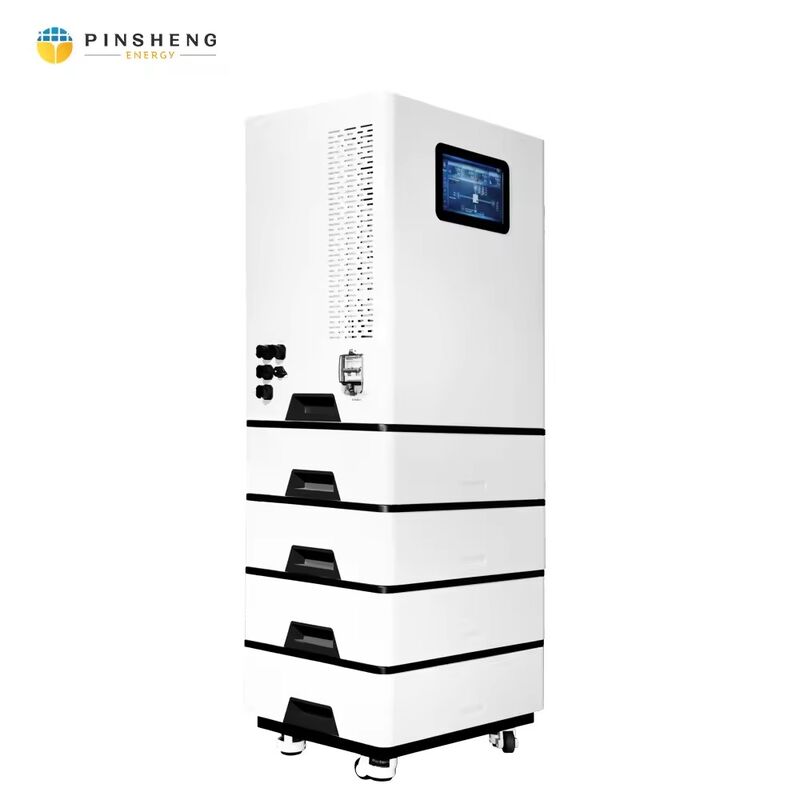

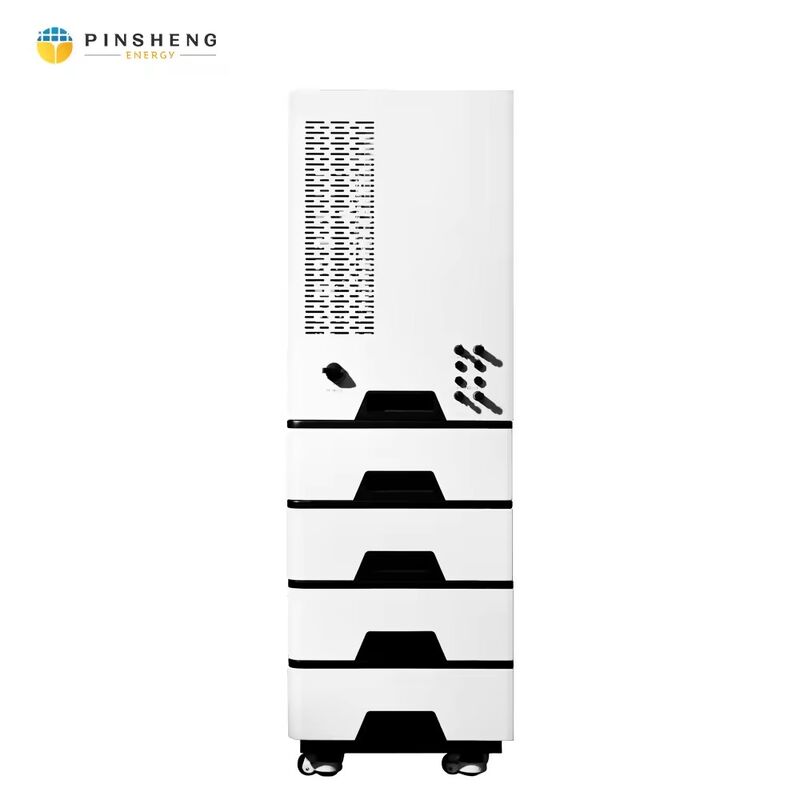

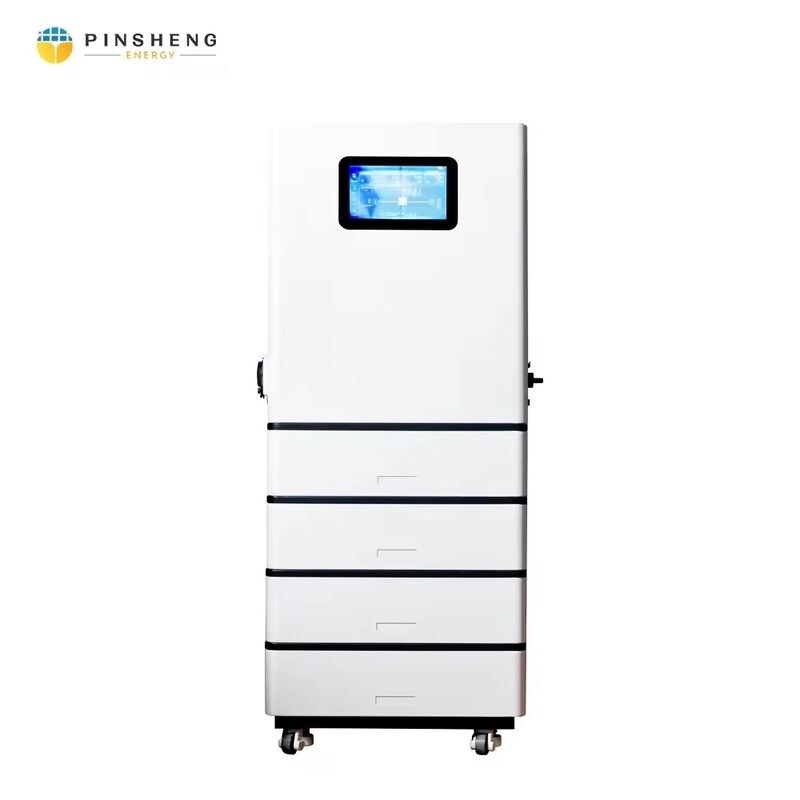

Industrial ESS Inverter Solar Home Energy Storage System All in One Stack

System Overview

Advanced all-in-one energy storage solution featuring stackable design with capacities ranging from 15KWH to 35KWH. Ideal for industrial and residential solar applications with flexible parallel configuration options.

Configuration Flexibility: Supports parallel connection of up to 48-112 battery packs for scalable energy storage capacity.

Basic Parameters

Battery Type	LiFePO4
Communication Port	RS485 WIFI or WAN
Protection Level	IP20
Operating Temperature	-20°C - 55°C
Cooling Method	Intelligent Air Cooling
Built-in Interface	RS485
Installation Way	Stackable
Noise Level	<25dB

Battery Specifications

Parameter	15KWH	20KWH	35KWH
Power	15kwh	20kwh	35kwh
Battery Module Voltage Range	48-112V / 85-400V
Battery Rated Voltage	51.2V
Battery Module Quantity	1	2	3
Max Charge/Discharge Current	50A / 100A
Dimensions (excluding bottom wheel)	620×438×475mm	640×438×624mm	640×438×791mm

Inverter Specifications

Parameter	7KW	10KW	15KW
Inverter Output	7kw	10kw	15kw
Rated Output Power	7600VA	11000W	16500W
Rated Output Voltage	230Vac (L/N/PE single-phase)
Output Waveform	Pure Sine Wave
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Protection Grade	IP20, Indoor Use
Ambient Temperature	-20°C - 55°C (-10°C - 55°C, >45°C Derating)

Key Features

Stackable design for flexible capacity expansion
Advanced LiFePO4 battery technology for safety and longevity
Multiple communication options including RS485, WIFI, and WAN
Intelligent air cooling system for optimal thermal management
Pure sine wave output for clean power delivery
Low noise operation (<25dB) suitable for residential areas
Wide operating temperature range for various environments
