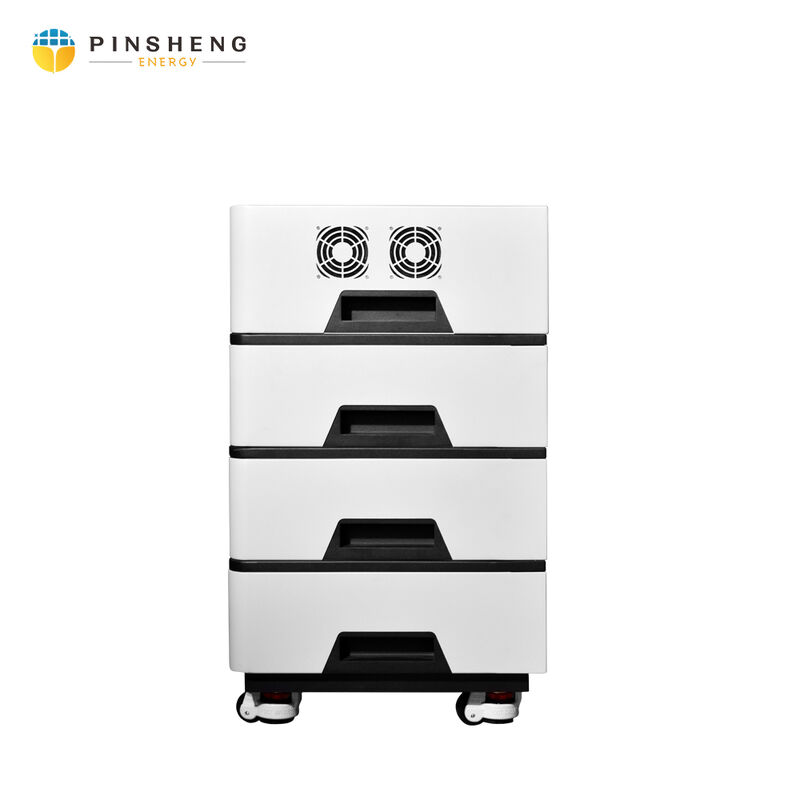

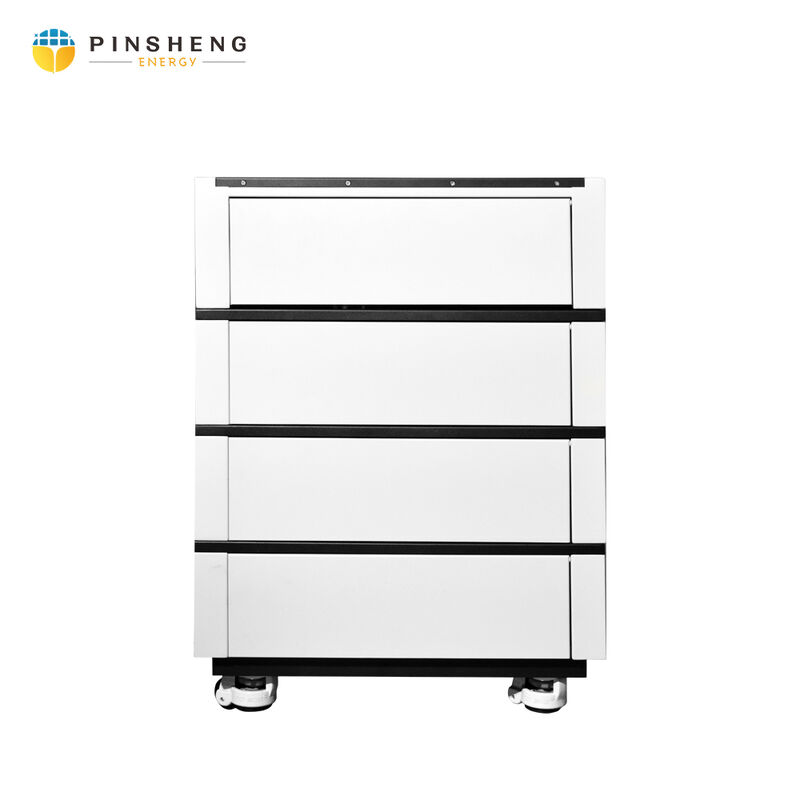

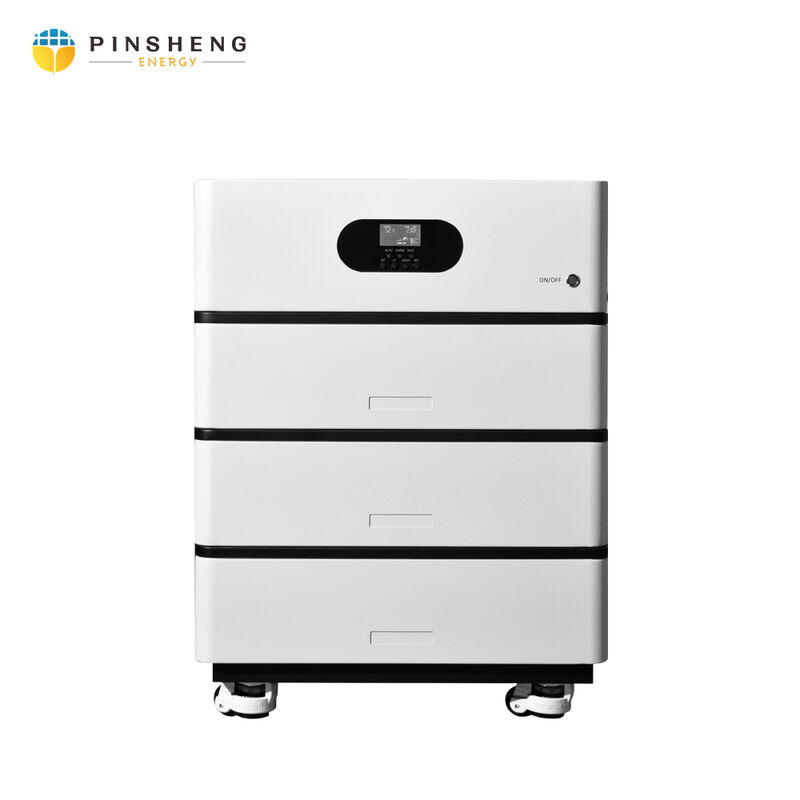

Name: Home Solar Energy System Rack All in One Lithium Ion Battery 10kw 15kwh 20kwh Solar Power Energy Lithium Battery
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: PE-C48V200AH
Price: 161.00 USD
Availability: InStock

Home > Products > Energy Storage Lithium Battery >

Home Solar Energy System Rack All in One Lithium Ion Battery 10kw 15kwh 20kwh Solar Power Energy Lithium Battery

10kw solar power lithium battery

15kwh home solar energy system

20kwh energy storage lithium battery

Place of Origin:

Hunan, China

Brand Name:

Picell

Model Number:

PE-C48V200AH

Document:

Product Brochure PDF

Request A Quote

Home Solar Energy System Rack All in One Lithium Ion Battery 10kw 15kwh 20kwh Solar Power Energy Lithium Battery

Product Details

Battery Type:

Lithium Ion, LiFePO4

Output Power Range:

10~20 KWh

Dimension (L*W*H):

Weight:

/, 360kgs

System Type:

Stackable

Type:

Split

Communication Port:

CAN, RS-232, Rs485

Protection Class:

IP54, IP64, IP65, IP55

Grid Connection:

Off Grid, Hybrid Grid

Discharging Temperature:

-20~60℃

Cycle Life:

6000 Cycles

Solar Output Power:

5kw To 20kw,customized

External Module:

Wi-Fi

Size:

1600*800*600(mm)

Inverter Type:

Grid Hybrid Solar Inverter

Warranty:

5 Years

Application:

Solar Energy Storage Systems

Payment & Shipping Terms

Minimum Order Quantity

Price

CN¥5,318.41

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Get Best Price

Wholesale Price Solar 48v 5120wh 10kwh ess All in One Stackable Lithium Battery Includes Inverter Home Energy Storage System

Get Best Price

PINSHENG Wholesale Lifepo4 5kw Camping Tragbare Powerstation Solar Generator Waterproof Portable Power Station 5000w Industry

Get Best Price

Factory 5kw Camping Tragbare Power Station Lifepo4 Battery Portable Solar Generator Industry Waterproof Powerstation 5000w

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

Home Solar Energy System Rack All-in-One Lithium Ion Battery

Complete solar power energy storage solution with capacities of 10kW, 15kWh, and 20kWh.

Product Overview

Technical Specifications

Basic Parameters
Battery Type	LiFePO4
Communication Connector	RS485
Protection Level	IP20
Operating Temperature	-15°C to 55°C
Cooling Method	Intelligent air cooling
Built-in Interface	RS485
Installation Way	Stackable
Noise	<60dB
Statement	Up to 16 battery packs in parallel

Battery Parameters
Power	5.12kWh	10.24kWh	15.36kWh
Battery Voltage	40-58.4V
Battery Rated Voltage	51.2V
Battery Module Quantity	1	2	3
All-in-One ESS Cabinet Dimensions	620×438×475mm	640×438×624mm	640×438×791mm
Max Charge/Discharge Current	50A/100A

Inverter Parameters
Inverter Output	5kW	8kW	10kW
Rated Output Power	10000VA	8000W	10000W
Rated Output Voltage	230Vac (L/N/PE single-phase)
Load Bearing Motor Capacity	4HP	5HP	6HP
Output Waveform	Pure sine wave
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Protection Grade	IP20, indoor use
Ambient Temperature	-15°C to 55°C (-10°C to 55°C, >45°C derating)

Photovoltaic Input
Max Input Power	4,400W	11000W
Max Input Current	50A	22/22A
Max Open Circuit Voltage	145Vdc	500Vdc
MPPT Operating Voltage Range	60-115Vdc	125-425Vdc
MPPT Paths	1	2

Mains/Generator Input
Max Mains/Generator Charging Current	60A	100A	120A
Rated Frequency	50Hz/60Hz
Bypass Overload Current	40A	63A

Company Profile

Pinsheng Energy, with R&D located in Changsha City, Hunan Province near Guangzhou, is a High-Tech Enterprise with 4,000 square meters of workshop space and 121 staff members. We specialize in developing and producing lithium batteries and battery system integration. After years of development and research, we have formed a complete industry chain from research and production to sales.

Longer cycle life and higher security
Enhanced reliability and energy density
Wide applications in energy storage and power systems
Strict quality guarantee system
Dedicated to becoming a top OEM & ODM lithium battery manufacturer
