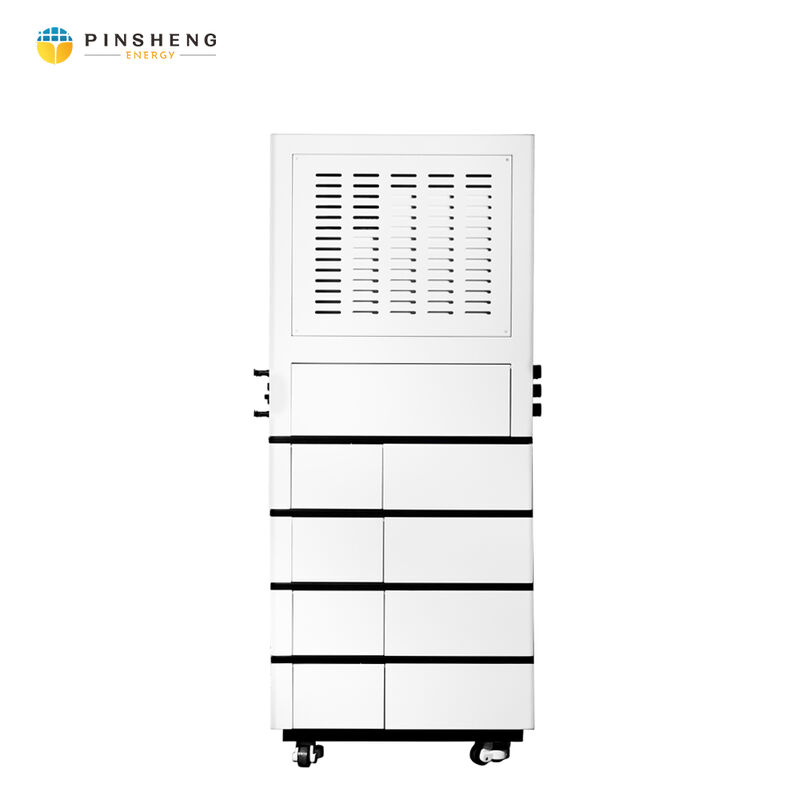

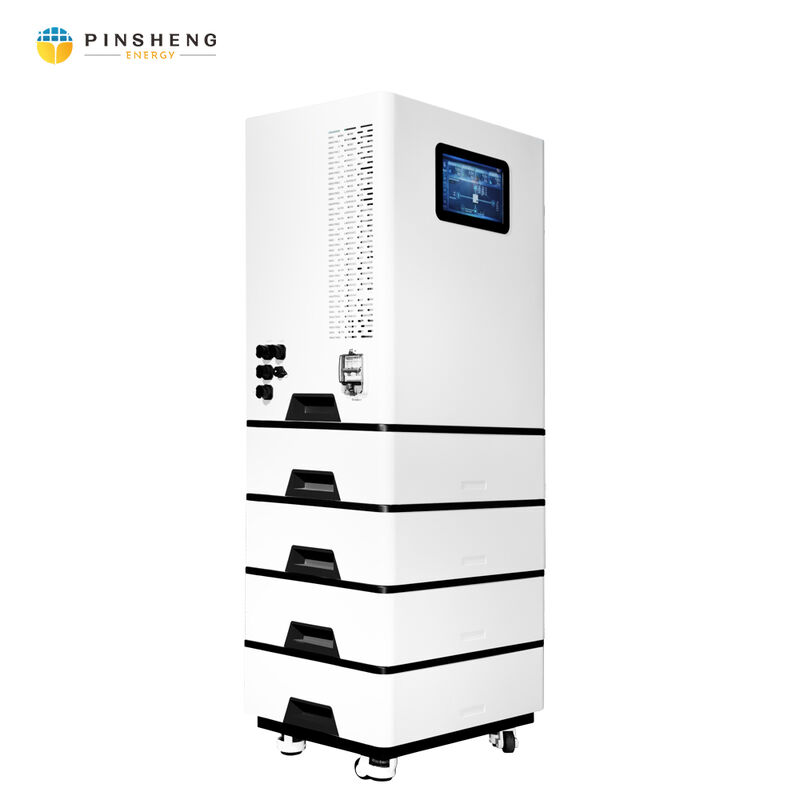

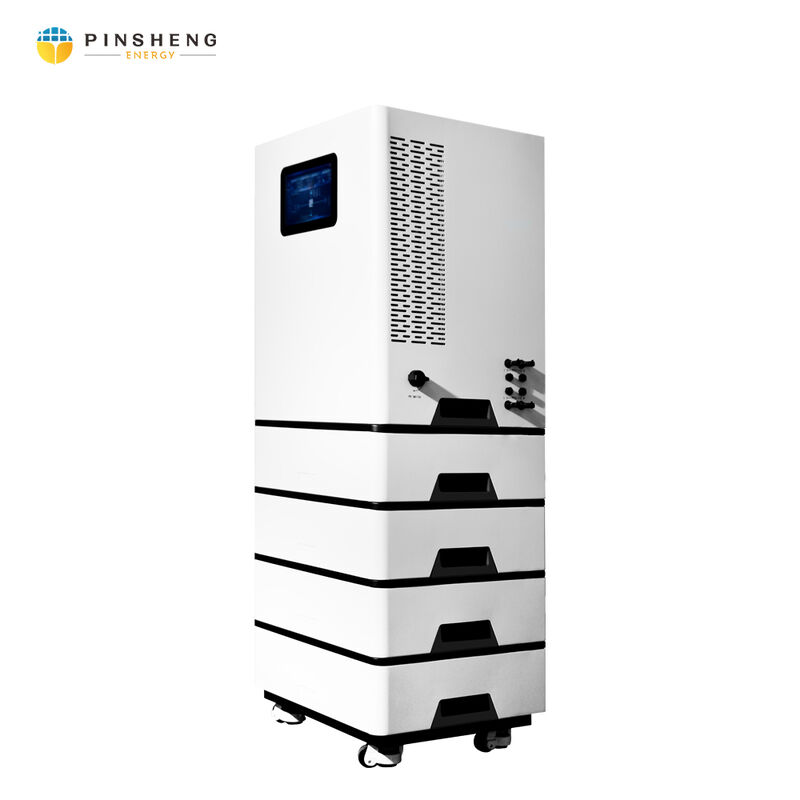

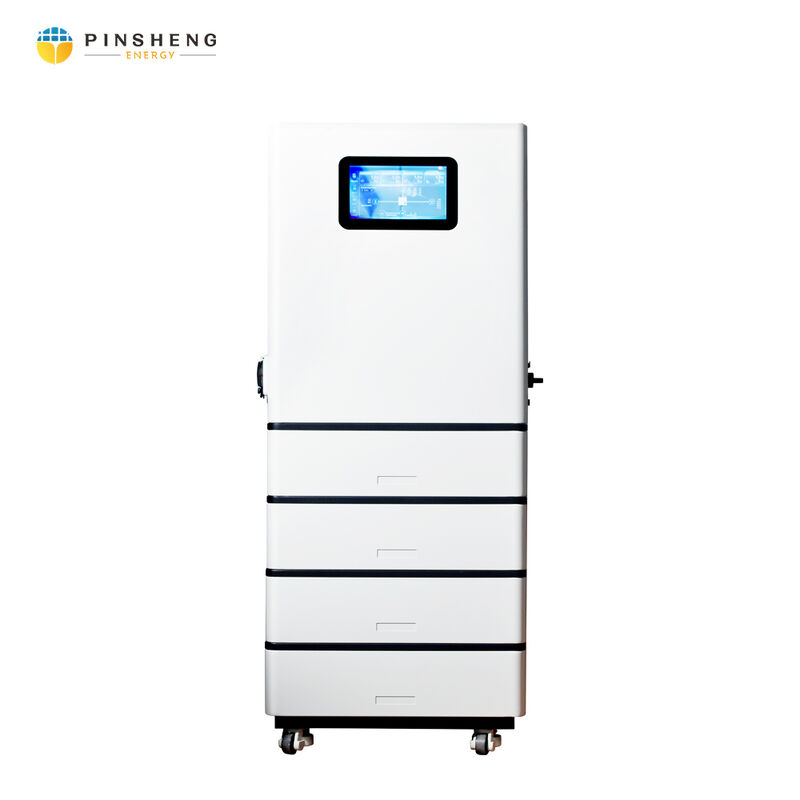

Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter

Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter

Pinsheng LiFePO4 lithium battery 10Kwh

stacked energy storage battery 20Kwh

hybrid inverter 10Kw with warranty

Place of Origin:

HUNAN

Brand Name:

Pinsheng

Model Number:

PE-ESS-03

Document:

Product Brochure PDF

Contact Us
Request A Quote
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter
Product Details
Features:
All In One ( Built In Inverter)
Application:
Home Appliances, Solar Energy Storage Systems
Weight:
CUSTOMIZED
Product Name:
All In One Battery
Battery Type:
Lifepo4/lithium Battery
Cycle Life:
6000 Cycles
Voltage:
96v/153.6v Etc Customized
Nominal Capacity:
50AH-300AH /Custom
Protection:
Smart BMS
OEM/ODM:
Accepatable
Apllication:
Household Energy Storage
MOQ:
No
Warranty:
10 Years
Anode Material:
LFP
Battery Size:
LifePO4
The Charging Ratio:
50A
The Discharge Rate:
100A-200A
Storage Type:
Dry, Cool And Ventilation
Payment & Shipping Terms
Minimum Order Quantity
2
Price
CN¥6,892.94-7,144.86
RELATED PRODUCTS
Good price Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery online

Solar Energy Storage With Long Cycle Life Power System 48v/51.2V 768v 512v 50ah 100ah 400ah 20kwh Stacked Lifepo4 Battery

Get Best Price
Good price Wholesale Price Solar 48v 5120wh 10kwh ess All in One Stackable Lithium Battery Includes Inverter Home Energy Storage System online

Wholesale Price Solar 48v 5120wh 10kwh ess All in One Stackable Lithium Battery Includes Inverter Home Energy Storage System

Get Best Price
Good price PINSHENG Wholesale Lifepo4 5kw Camping Tragbare Powerstation Solar Generator Waterproof Portable Power Station 5000w Industry online

PINSHENG Wholesale Lifepo4 5kw Camping Tragbare Powerstation Solar Generator Waterproof Portable Power Station 5000w Industry

Get Best Price
Good price Factory 5kw Camping Tragbare Power Station Lifepo4 Battery Portable Solar Generator Industry Waterproof Powerstation 5000w online

Factory 5kw Camping Tragbare Power Station Lifepo4 Battery Portable Solar Generator Industry Waterproof Powerstation 5000w

Get Best Price
Contact Us
15616151876
info@pinshengenergy.com
Contact Now
Product Description
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter
Product Overview
Advanced all-in-one energy storage solution featuring stacked LiFePO4 battery modules and hybrid inverter technology for reliable power management.
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 0 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 1 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 2 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 3 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 4 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 5
Technical Specifications
Model PE-NAIO-1010 PE-NAIO-1015 PE-NAIO-1020 PE-NAIO-1025
Battery Voltage 204.8V 153.6V 204.8V 256V
Rated Power 10kW
Current Rated 43.5A
Voltage/Range 230V/176Vac~270Vac
Frequency Ranges 50/60Hz
Efficiency 0.99lagging~0.99leading(settable)
THDI <2%
Battery Voltage Range 85v~400V
Battery Pack Rated Voltage 204.8V 153.6V 204.8V 256V
Capacity Of Battery 5.12kWh*2 5.12kWh*3 5.12kWh*4 5.12kWh*5
Charge/Discharge Current 50A/50A 80A/80A
Battery Type LiFePO4(LFP)
Max. Input Power 13kW
Max. PV Voltage 550V
MPPT Range/Nominal 125V~500V/360V
Max. Input Current 12A
MPPT Tracker/Strings 2/2
Rated Power w/VA 10kW
Max. Output Power 12.5kW 60S/15kW 1S
Rated Voltage 230V
Rated Current 43.5A
Rated Frequency 50/60Hz
Automatic Switchover Time <20ms
THDU <2%
Size (W/D/H) 640mm*490mm*1262mm 640mm*490mm*1455.5mm 640mm*490mm*1649mm 640mm*490mm*1842.5mm
Weight (approx) 210kg 230kg 291kg 357kg
DC Max. Efficiency 98.2%
MPPT Efficiency 99%
Operating Temperature -20°C~55°C
Protection Level IP21
Noise Emission (typical) <35dB
Display LCD
Interface CAN/RS485/WIFI
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 6
Company Profile
Hunan Pinsheng Energy Technology Co., LTD located in Changsha City, Hunan Province, specializes in developing and producing Li-ion battery and battery system integration. Through years of development and research, we have formed a complete industry chain from research, production to sales.
Our lithium ion batteries feature longer cycle life, enhanced security and reliability, higher energy density, and superior performance. Products are widely used in electric bikes, E-scooters, electric motorcycles, electric tricycles, golf carts, fork lifts, electric vehicles, UPS, telecommunication systems, off-grid wind & solar energy storage, and more.
Pinsheng Energy Battery products sell well both domestically and internationally. We maintain strict quality assurance systems to ensure high-quality products. We prioritize customers' needs and continuously improve our product quality and services. With our own R&D team, we offer customized solutions and are dedicated to becoming a top OEM & ODM manufacturer in China.
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 7 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 8 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 9
Packaging & Applications
Available in carton package or wooden case. This 2022 New Home Solar System Solution offers capacities of 5KWh, 8.8KWh, 10KWh, 20KWh, 22KWh, and 30KWh LiFePO4 Energy Storage Systems.
Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 10 Pinsheng All in One Stacked Modules 51.2V LiFePO4 Lithium Battery 10Kwh 20Kwh Energy Storage Battery and 10Kw Hybrid Inverter 11
