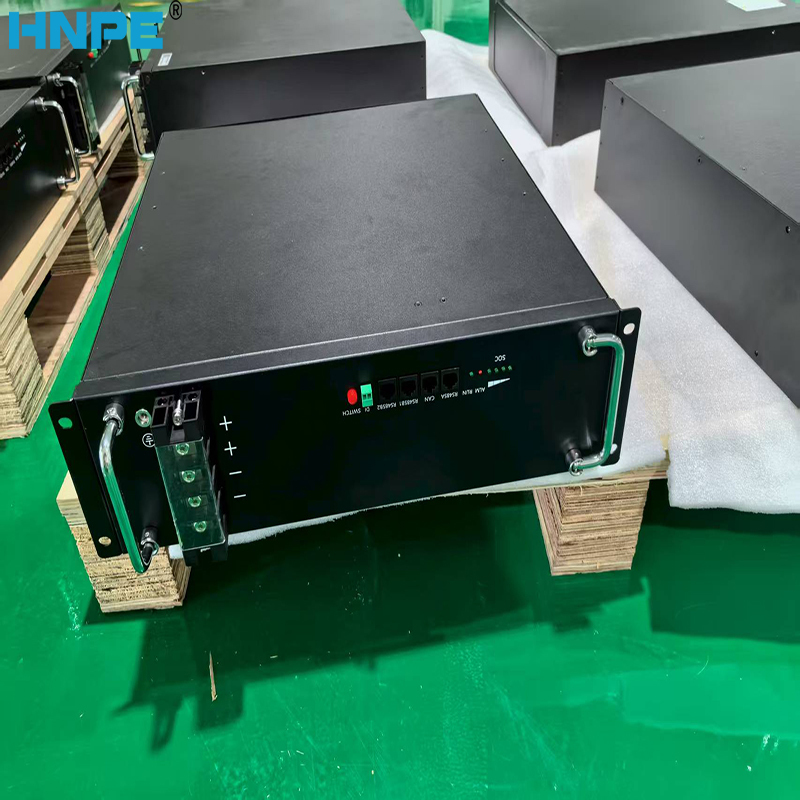

HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port

HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port

48V 200AH lifepo4 solar battery

rack-mounted lithium iron phosphate battery

10kWh off-grid energy storage system

Place of Origin:

Hunan, China

Brand Name:

PisenEner

Certification:

CE/ROHS/MSDS/UN38.3 etc

Model Number:

PE48100

Contact Us
Request A Quote
Product Details
Battery Type:
Lithium Ion, LiFePO4, Other
Product Name:
Lithium Iron Phosphate Lifepo4 Battery Pack
Nominal Voltage:
48V DC
Capacity:
50AH 100Ah 200Ah 250AH Customized
Protection:
Built-in BMS
Size:
3U 4U 5U Customization Acceptable
Apllication:
Solar Energy System Battery Cell
Key Feature 1:
6000 TIMES LIFESPAN
Key Feature 2:
Long Warranty From Supplier
Key Feature 3:
Wide Application
Port:
SHENZHEN SHANGHAI NINGBO
Payment & Shipping Terms
Minimum Order Quantity
2 units
Price
$460.00/units 2-49 units
Packaging Details
wooden box UN38.3
Supply Ability
5000 Unit/Units per Month
Product Description
HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port
HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 0
Specification
Model No PE48050 PE48100 PE48150 PE48200 PE48250
Voltage 48 V 48 V 48 V 48 V 48 V
Capacity 50Ah 100Ah 150Ah 200Ah 250Ah
Energy 2.4KWH 5.12KWH 7.68KWH 10.24KWH 12.80KWH
Operation voltage 35.25-54.75 Vdc 37.6-58.4Vdc 37.6-58.4Vdc 37.6-58.4Vdc 37.6-58.4Vdc
Max.charging voltage 54.75Vdc 58.4 Vdc 58.4 Vdc 58.4 Vdc 58.4 Vdc
Max.charging and discharging current 50A 100A 100A 100A 100A
Max Power 2400W 5120W 7680W 10240W 12800W
Life time(25°C) 10 years
Life cycles(80% DOD, 25°C) >6000 Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Enclosure protection rating IP65
Dimensions(L×W×H)mm 482*410*89 482*400*177 482*430*222 482*500*280 482*500*280
Weight 24KG 43KG 65KG 82KG 100KG
HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 1 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 2 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 3 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 4
Packing & Delivery
HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 5 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 6
WOODEN BOX
Company Profile
HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 7

Hunan Pinsheng Energy Technology Co.,LTD located in Changsha City, Hunan Province, We focus on developing and producing Li-ionbattery and battery system integration, through many years development and research.we have formed a complete industry chain from research, production to sales.

Our lithium ion battery has the characteristics of longer recycle life, more higher security and more reliability, higher energy density and other superior performance.products are widely used in electric bikes, E-scooter, electric motorcycles, electric tricycles, golf cart, fork lift, electric vehicles, UPS, telecommunication system, off grid wind & solar energy storage and etc.

Pinsheng Energy Battery products sell well at home and abroad, we has strict quality guarantee system to ensure high-quality products. We put customers' needs at the first and listen to their suggestions.We continuously improve our product quality and services. We have our own R&D team so customized products are fine for us, Pinsheng Energy has now became a competetive manufacturer in China, we are edicated to be a top OEM & ODM manufacturer in China.

HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 8 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 9 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 10 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 11 HNPE 48V 200AH Rack-Mounted Solar Energy Storage System Lifepo4 Battery 10kWh Lithium Iron Phosphate Off-Grid Connection Port 12
FAQ
  1. Who are we?
    We are based in Hunan, China, start from 2011,sell to Domestic Market(20.00%),North America(20.00%),Northern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),South America(5.00%),South Asia(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 150 people in our office.
  2. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
  3. What can you buy from us?
    Lithium Battery,Lithium Battery Pack,Solar Energy Storage Lithium Battery,Electric Vehicle Battery,Solar System
  4. Why should you buy from us not from other suppliers?
    1. We focus on lithium battery manufacturing for many years.
    2. We have advanced facilities and strong R&D strength
    3. Our battery with longer recycle life,higher security and reliability, higher energy density.
    4. We have strict quality guarantee system.
  5. What services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
