Place of Origin:
Hunan, China
Brand Name:
Pinsheng
Model Number:
PSW23080901
Document:

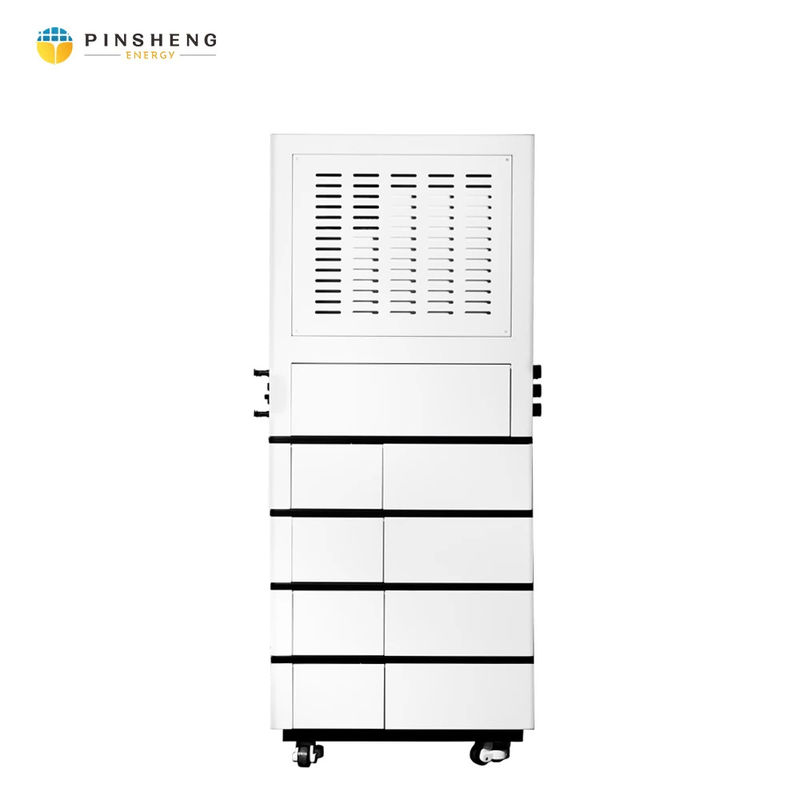

Product Name | Residential Home ESS 10kw 20kwh 30kwh stackable hybrid solar invert lifepo4 battery battery all in one ESS cabinet |
Basic parameter | ||||||
Battery Type | LiFePO4 | |||||
Communication Port | RS485 WIFI or WAN | |||||
Protection Level | IP20 | |||||
Operating Temperature | -20°C-55°C | |||||
Cooling method | Intelligent air cooling | |||||
Built-in interface | RS485 | |||||
Installation Way | Stackable | |||||
Noise | <25dB | |||||
Statement | Up to 48-112 battery packs in parallel | |||||
Battery parameter | ||||||
Power | 15kwh | 20kwh | 35kwh | |||
Battery Module Voltage Range | 48-112V/85-400V | |||||
Battery Rated Voltage | 51.2V | |||||
Battery Module Quantity | 1 | 2 | 3 | |||
All in One ESS Cabinet Dimention (excluding bottom wheel) | 620*438*475mm | 640*438*624mm | 640*438*791mm | |||
Max Charge/Discharge Current | 50A/100A | |||||
Inverter parameter | ||||||
Inverter output | 7kw | 10kw | 15kw | |||
Rated output power | 7600VA | 11000W | 16500W | |||
Rated output voltage | 230Vac(L/N/PE single-phase) | |||||
Output waveform | Pure sine wave | |||||
Rated battery voltage | 48Vdc | |||||
Voltage range | 40~60Vdc | |||||
Protection grade | IP20, indoor use | |||||
Ambient temperature | -20°C-55°C | -10°C-55°C,>45°C Derating |
