Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system

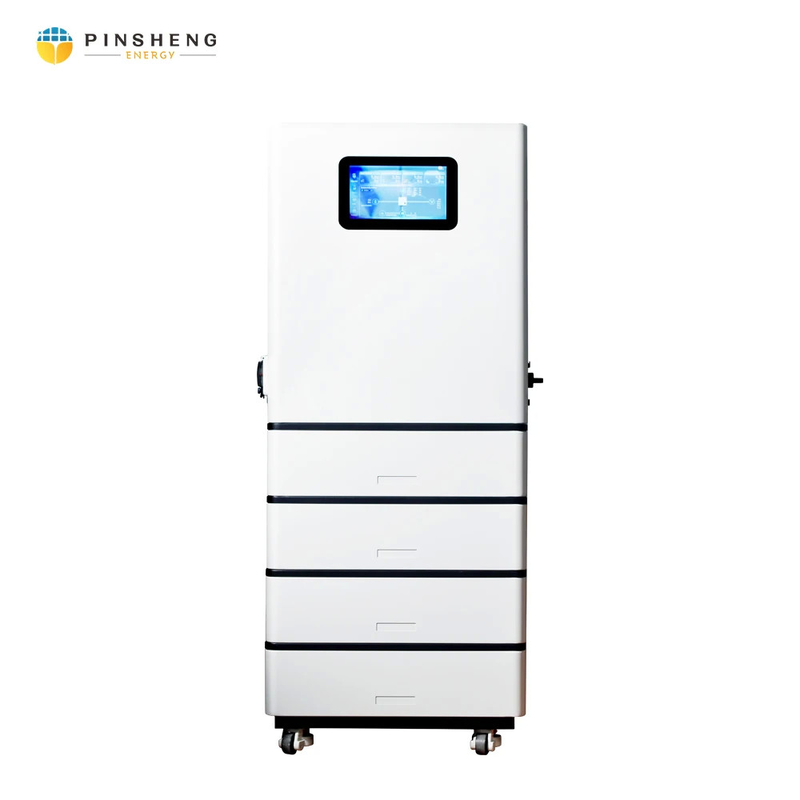

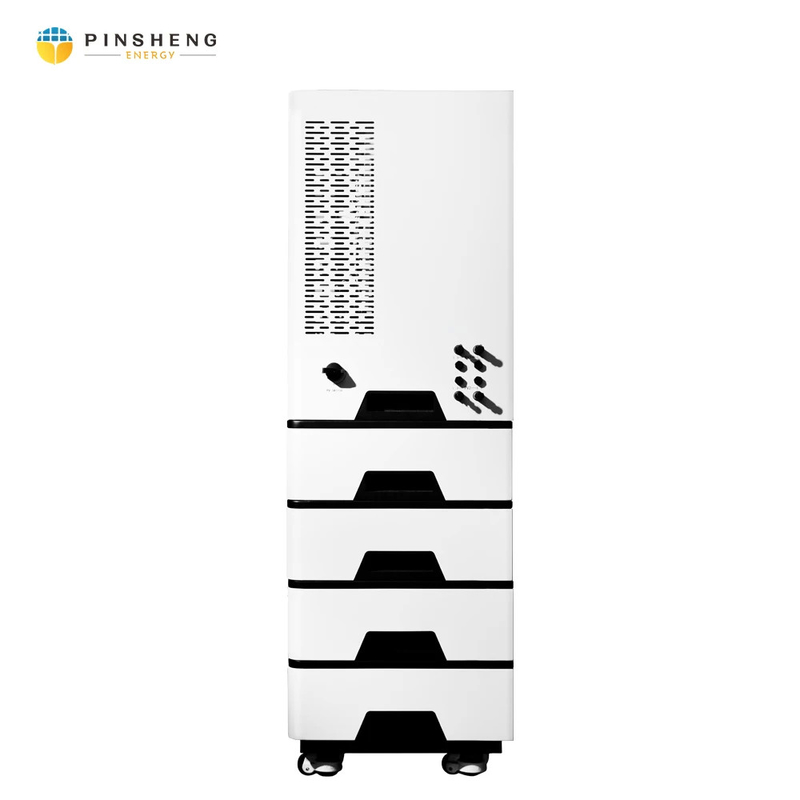

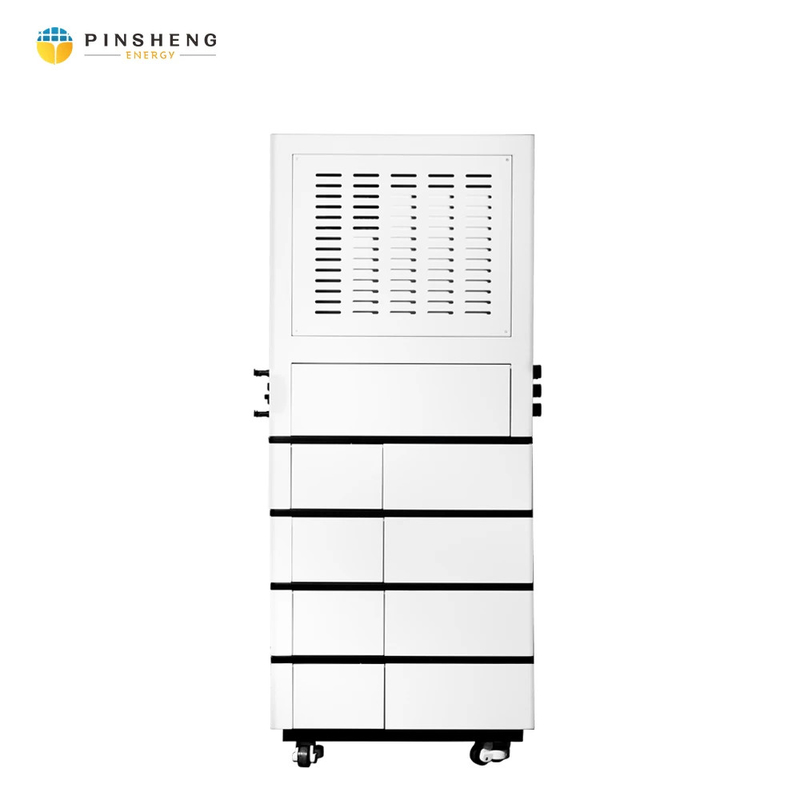

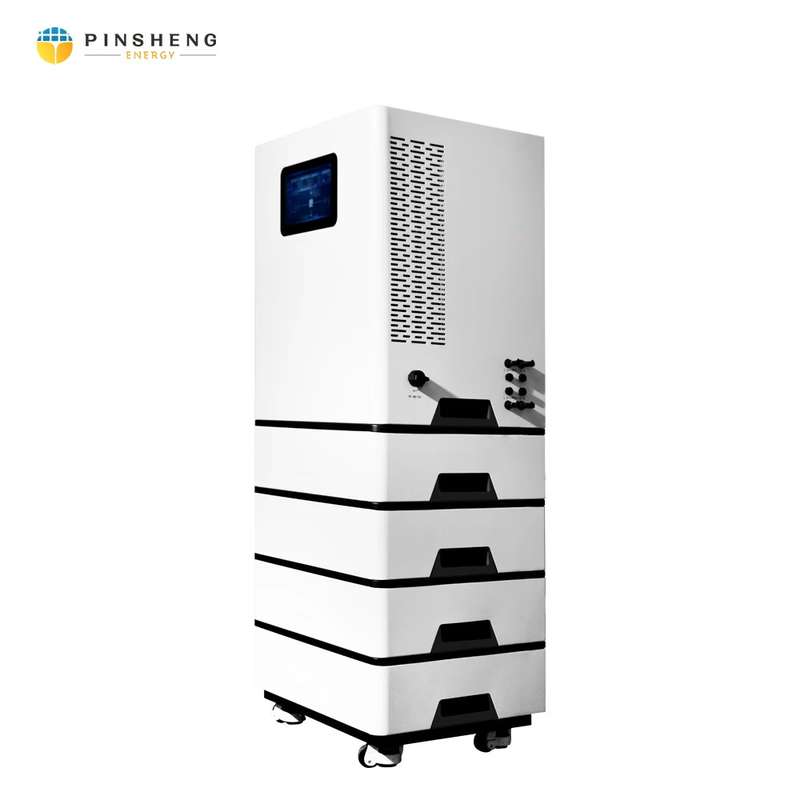

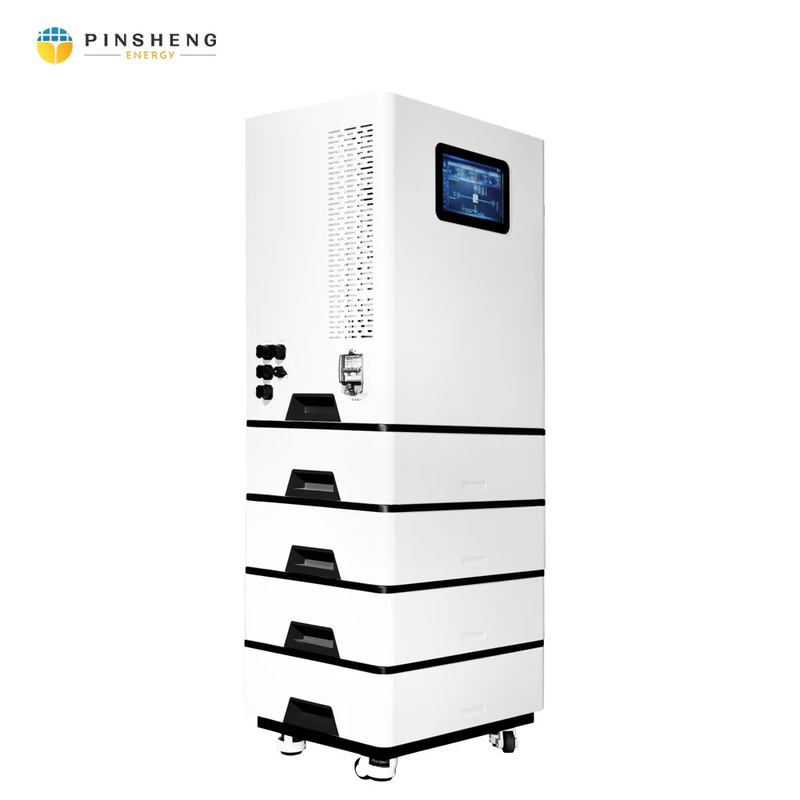

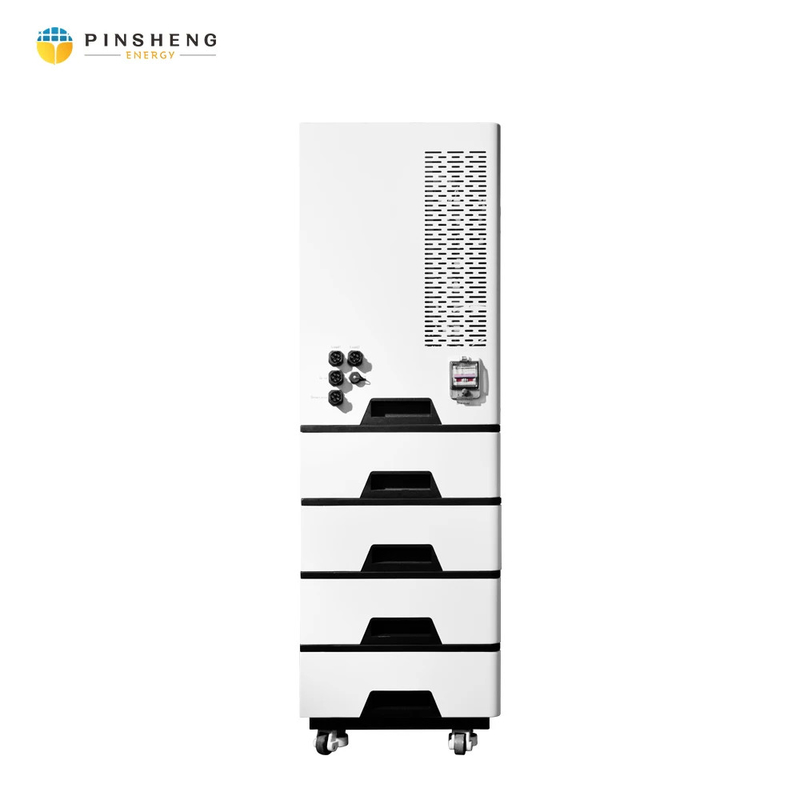

Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system

30kwh lithium ion battery cabinet

15kwh lithium ion battery cabinet

20kwh lithium ion battery cabinet

Place of Origin:

Hunan, China

Brand Name:

Pinsheng

Model Number:

PSW230809

Contact Us
Request A Quote
Product Details
Battery Type:
Lithium Ion
Output Power Range:
20-50 KWh
Dimension (L*W*H):
620*438*475mm
Weight:
6.2-10.8KG
System Type:
Stackable
Type:
All-in-one
Communication Port:
CAN, RS232, RS485
Protection Class:
IP54, IP64, IP65, IP55
Grid Connection:
Off Grid, Hybrid Grid
Model:
PS5000
Inverter Output:
5000 W
Rated Output Power:
10,000 VA
Battery Type:
Lithium Ion Battery
Max Input Power:
4400 W
Max Input Current:
50A
Protection Grade:
IP20
Noise:
<60dB
Communication Series:
RS485
External Module:
Wi-Fi
Port:
Shenzhen Shanghai Ningbo
Payment & Shipping Terms
Minimum Order Quantity
2 units
Price
$1,167.00/units 2-99 units
Packaging Details
wooden box
Supply Ability
1000 Unit/Units per Month
Product Description
Product Description
Product Name
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 0
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 1
Basic parameter
Battery Type
LiFePO4
Communication Connecter
RS485
Protection Level
IP20
Operating Temperature
-15°C-55°C
Cooling method
Intelligent air cooling
Built-in interface
RS485
Installation Way
Stackable
Noise
<60dB
Statement
Up to 16 battery packs in parallel
Battery parameter
Power
5.12kwh
10.24kwh
15.36kwh
Battery Voltage
40-58.4V
Battery Rated Voltage
51.2V
Battery Module Quantity
1
2
3
All in One ESS Cabinet
Dimention (excluding bottom wheel)
620*438*475mm
640*438*624mm
640*438*791mm
Max Charge/Discharge Current
50A/100A
Inverter parameter
Inverter output
5kw
8kw
10kw
Rated output power
10000VA
8000W
10000W
Rated output voltage
230Vac(L/N/PE single-phase)
Load bearing motor capacity
4HP
5HP
6HP
Output waveform
Pure sine wave
Rated battery voltage
48Vdc
Voltage range
40~60Vdc
Protection grade
IP20, indoor use
Ambient temperature
-15°C-55°C
-10°C-55°C,>45°C Derating
Photovoltaic input
Max Input Power
4,400W
11000W
Max input current
50A
22/22A
Max open circuit voltage
145Vdc
500Vdc
MPPT operating voltage range
60~115Vdc
125-425Vdc
MPPT paths
1
2
Mains/Generator input
Max mains/generator charging current
60A
100A
120A
Rated frequency
50Hz/60Hz
Bypass overload current
40A
63A
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 2
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 3
Company Profile
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 4
Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energyh focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehiclesetc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 5
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 6
Stackable all in one lithium ion battery cabinet 10kw 15kwh 20kwh 25kwh 30kwh residential solar power energy storage system 7
