Place of Origin:
Hunan, China
Brand Name:
Pinsheng
Model Number:
PSW230722
Document:
Product Name
|

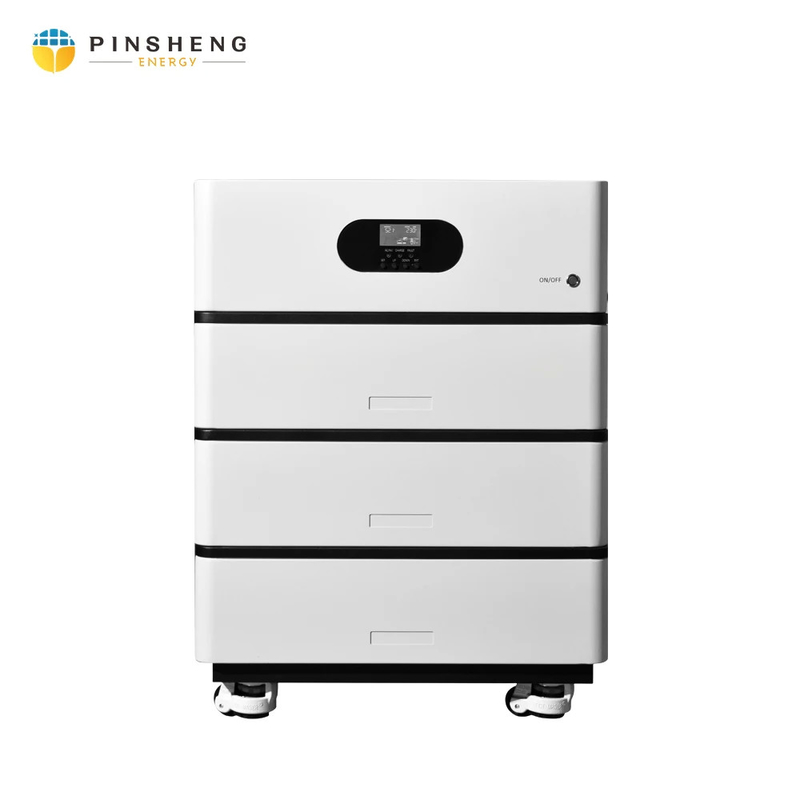

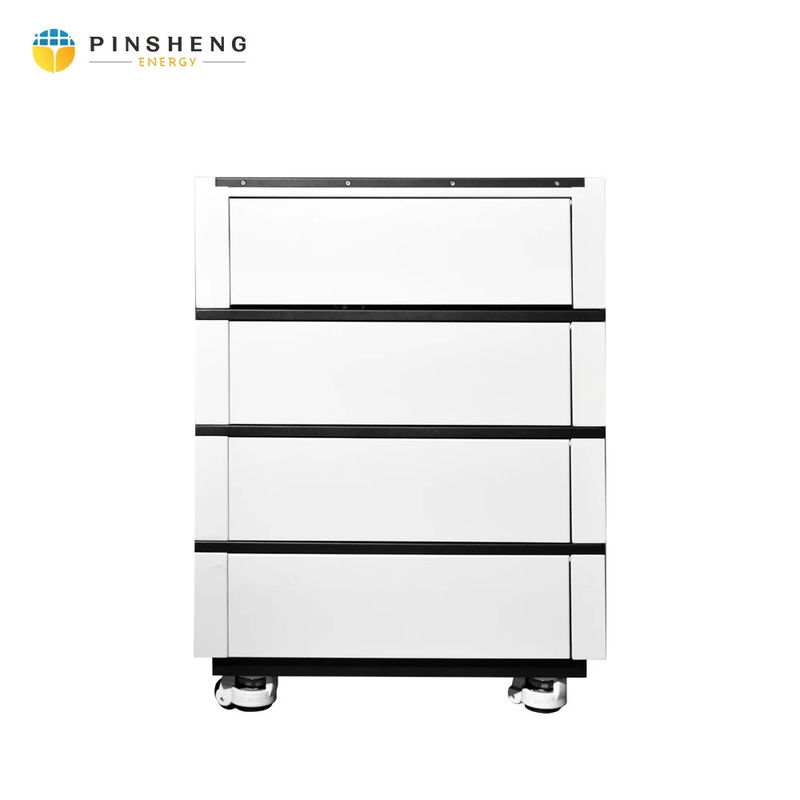

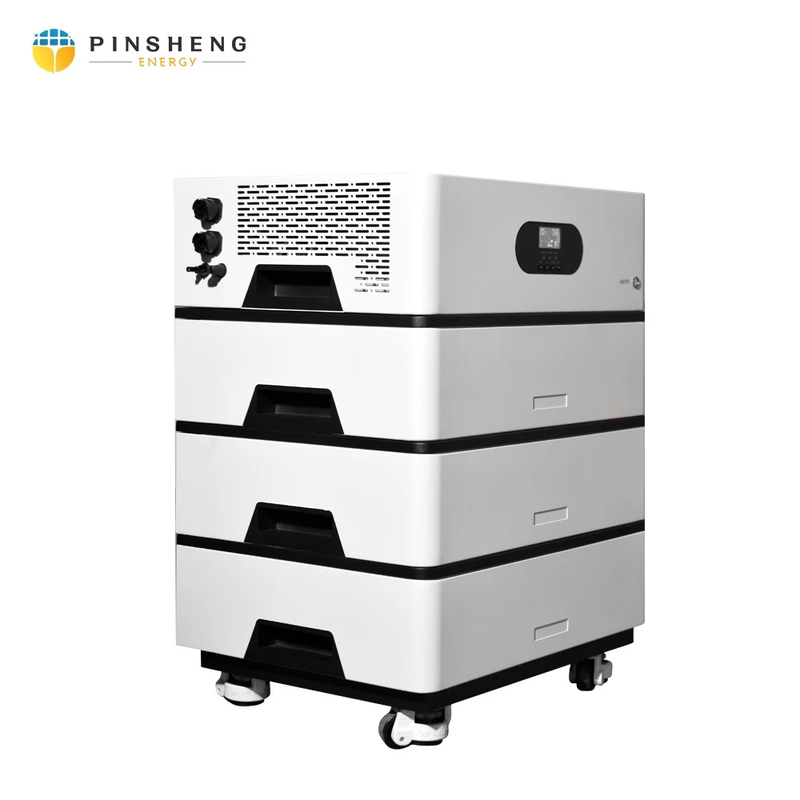

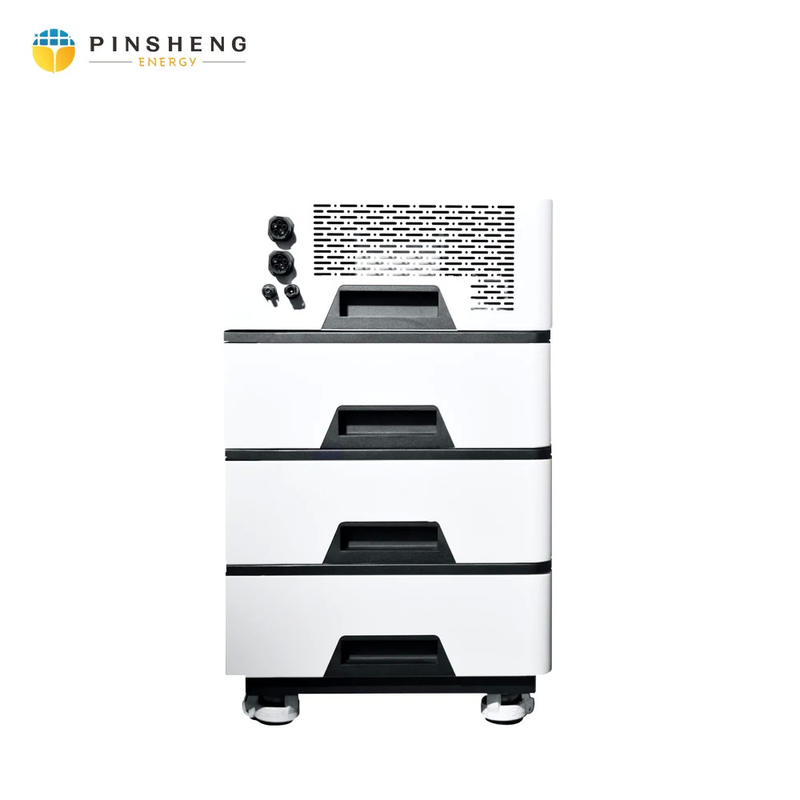

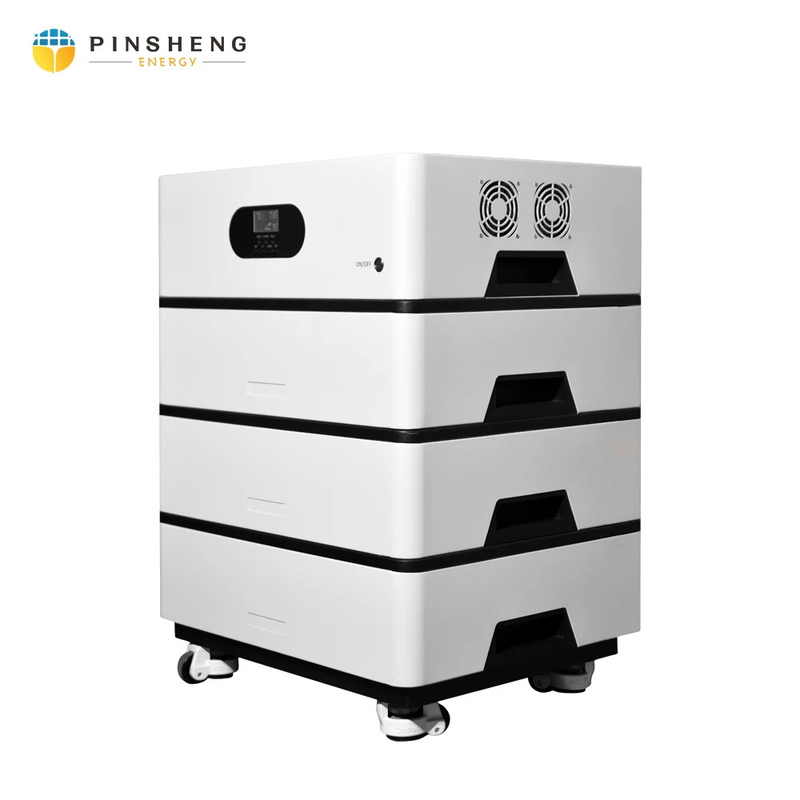

all in one lithium ion battery 10kw 15kwh 20kwh 25kwh 30kwh home use solar power energy storage system
|
|
|
|
Model
|
PS5K
|
PS3K
|
||
Inverter output
|
5,000W
|
3,000W
|
||
Rated output power
|
10,000VA
|
6,000VA
|
||
Rated output voltage
|
230Vac(L/N/PE single-phase)
|
230Vac(L/N/PE single-phase)
|
||
Load bearing motor capacity
|
4HP
|
2HP
|
||
Rated frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
||
Output waveform
|
Pure sine wave
|
Pure sine wave
|
||
switching time
|
10ms(Typical value)
|
10ms( Typical value)
|
||
Battery
|
|
|
||
Battery type
|
Lithium Ion Battery
|
Lithium Ion Battery
|
||
Rated battery voltage
|
48Vdc
|
48Vdc
|
||
Voltage range
|
40~60Vdc
|
40~60Vdc
|
||
Max PV charging current
|
80A
|
60A
|
||
Max mains/generator charging current
|
60A
|
60A
|
||
Max mixed charging current
|
140A
|
120A
|
||
MPPT paths
|
1
|
1
|
||
Max Input Power
|
4,400W
|
3,400W
|
||
Max input current
|
50A
|
40A
|
||
Max open circuit voltage
|
145Vdc
|
145Vdc
|
||
MPPT operating voltage range
|
60~115Vdc
|
60~115Vdc
|
||
Mains/generator input
|
|
|
||
Input voltage range
|
UPSmode:170~280Vac
|
UPSmode:170~280Vac
|
||
|
APL mode:90~280Vac
|
APL mode:90~280Vac
|
||
Input frequency range
|
50Hz/60Hz
|
50Hz/60Hz
|
||
Bypass overload current
|
40A
|
30A
|
||
Efficiency
|
|
|
||
MPPT tracking efficiency
|
99.90%
|
99.90%
|
||
Max efficiency of battery inverter
|
92%
|
92%
|
||
Basic parameters
|
|
|
||
Size
|
620*438*190mm
|
620*438*190mm
|
||
Weight
|
10.8kg
|
6.2kg
|
||
Protection grade
|
indoor use
|
indoor use
|
||
Ambient temperature
|
-15℃~55℃
|
-15℃~55℃
|
||
Noise
|
<60dB
|
<60dB
|
||
Cooling method
|
Intelligent air cooling
|
Intelligent air cooling
|
||
Communication
|
|
|
||
Built-in interface
|
RS485
|
RS485
|
||
External module
|
Wi-Fi
|
Wi-Fi
|
