24V 15Ah High Capacity Lithium Polymer Battery For Wind Solar Energy System

24V 15Ah High Capacity Lithium Polymer Battery For Wind Solar Energy System

large capacity lithium battery

lithium ion phosphate battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Contact Us
Request A Quote
Product Details
Name:
Special Lithium Battery
Model:
24V 15Ah
L X W X H:
172mmX60mmx125mm
Application:
Measuring Instruments, Meteorological Instruments, Etc.
Charge Cut-off Voltage:
29.4V
Weight:
2.15KG
Payment & Shipping Terms
Packaging Details
foam, wooden box / foam, carton, tray
Delivery Time
22 days
Payment Terms
L/C, T/T
Supply Ability
10,000 PCS per month
Product Description

24V 15Ah High Capacity Lithium Polymer Battery For Wind Solar Energy System



Model: 24V 15Ah

Dimension:172mmX60mmx125mm;

working temperature:-40℃;Low temperature battery core 8055112/7S3P; Charge cut-off voltage :29.4V; discharge cut-off voltage: 17.5V ;working current: 3A; maximum operating current :7.5A; weight:2.15KG; cycle life: 500 times



Applications
> Wind-Solar energy system
> Off-grid energy storage
> Solar street lights
> Household energy storage
> Telecom backup system
> Mobile base stations
> Emergency backup energy sources
> Uninterruptible power system
> Grid load shifters
> Electric Golf Car
> Electric vehicles
> Electric motorcycles
> Electric forklifts
> Electric boats, etc.



Features
1. Long cycle life
The crycle life of lead acid battery about 300 times,but lithium iron battery more better,charging at the 5 hours rate can reach 1500 times.Under the same conditions,Lead acid battery can use 1to 2 years,Lifepo4 will be 5 to 6 years.

2. Fast charge capability
The lithium iron can be fast charge and discharge, completely full at half an hour, will not affect the cycle life.

3. Resistance to high temperature stable performance
The lithium iron's electric heating peak can reach 350 ℃ to 500 ℃

4. High discharge rate capability,10C continuous, 20C pulse discharge;

5. Maintenance free;
6. Safe technology, will not catch fire or explode when being overcharged

7. Light weight,







  : HY00084
: A0

HYLF/24/15-001

Battery pack specification



:



2019-5-7

1.Basic characteristics

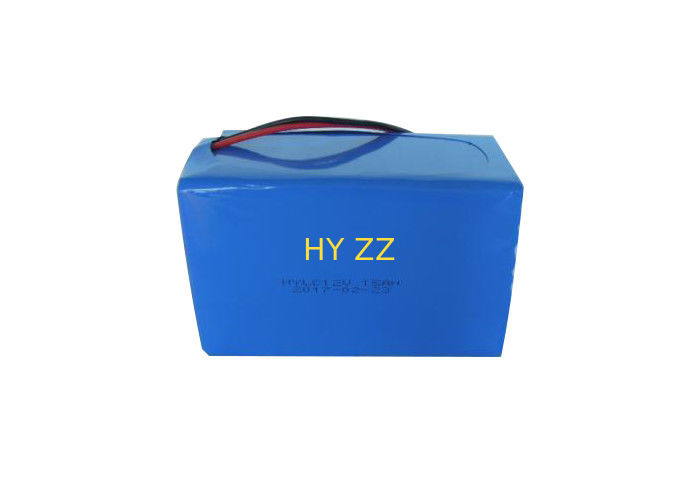

Product picture

Product name

Industrial lithium battery

Batteries:Battery: low temperature polymer lithium battery





product code

HYLF/24/15-001
L x W x H 172mmX60mmx125mm
Rated voltage 24VSeries structure
Rated Capacity 15Ah
Serialization 7S

Internal resistance

≤100mΩ
Discharge cutoff voltage 17.5V

Shell color



□ Sub black



□ Bright gray



□ +Fruit green + bright gray two-color



□ White+ black





☑ Blue thermoplastic film



Charging and discharging interface

□ Wall terminal



□ Anderson



□ Navigation plug



☑ Positive and negative lines



□ Pole



□ Hardware contact









Charging protection voltage 29.4V

Max.charging voltage

29.75V

Max. charging current

4A

Maximum discharge current

7.5A

Peak current

15±2 2S

Rated discharge current

3A
Charging method CC/CV





Low-temperature lithium battery cell discharge curve:

24V 15Ah High Capacity Lithium Polymer Battery For Wind Solar Energy System 0



weight

2.15Kg



Operating temperature



Charging

0~45℃

Discharge

-20~55℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months



-10~35℃

C1 Cycle life

Cycle life

500 Times

price RMB:¥ 00.00

Delivery period

25 Working day
