Portable Special Lithium Battery 14.8V 60000mAh Li On Rechargeable Batteries

HYLF/14.8/60-001

Battery pack specification

Date

2019-5-7

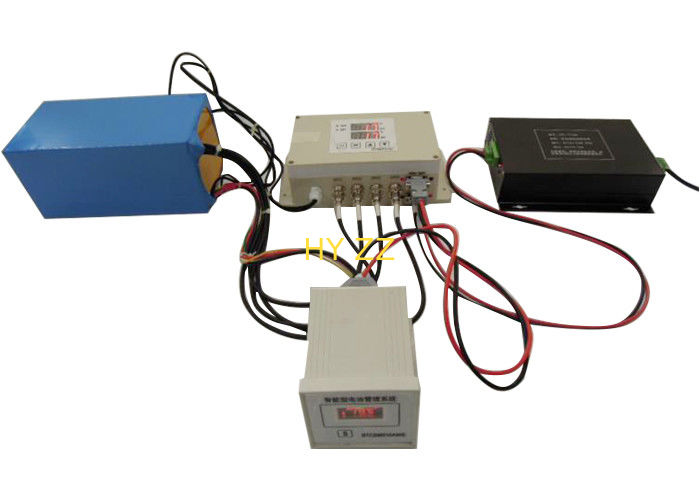

Product picture

Product name

Low temperature lithium battery

Working characteristics:HYLF/14.8/60-001SEIKO,,PIDEPC,,,,,,,RS232.,,,,,,.HYLF/14.8/60-001 adopts the current SEIKO as the protection chip, and at the same time cooperates with the low-power processor, the PID algorithm realizes the rapid temperature control of the EPC board, automatically judges the user to enter the charging state, and realizes the system sleep when the charging/discharging current is less than the threshold. When the threshold is greater than the threshold, the display alternately displays voltage, current, percentage of power, and temperature, and sends status information through the RS232 interface. Taking full consideration of its reliability and stability, the seismic design, impact, collision performance and electromagnetic compatibility are considered as a whole in the design, so that it has good adaptability and improves its resistance to harsh environments.

product code

Internal resistance

Shell color

□ Sub black

□ Bright gray

□ +Fruit green + bright gray two-color

☑ White

☑ Blue thermoplastic film

Charging and discharging interface

□ Wall terminal

□ Anderson

☑ Navigation plug

□ Positive and negative lines

□ Pole

□ Hardware contact

Max.charging voltage

17V

Max. charging current

12A

Maximum discharge current

30A

Peak current

Rated discharge current

Intelligent low temperature battery management system control strategy

:

weight

Operating temperature

Charging

Discharge

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months

-10～35℃

C1 Cycle life

Cycle life

500 Times

Delivery period

25 Working day
