Large Capacity 4.2 V Rechargeable Lithium Polymer Battery For LED Strip

large capacity lithium battery

lithium ion phosphate battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

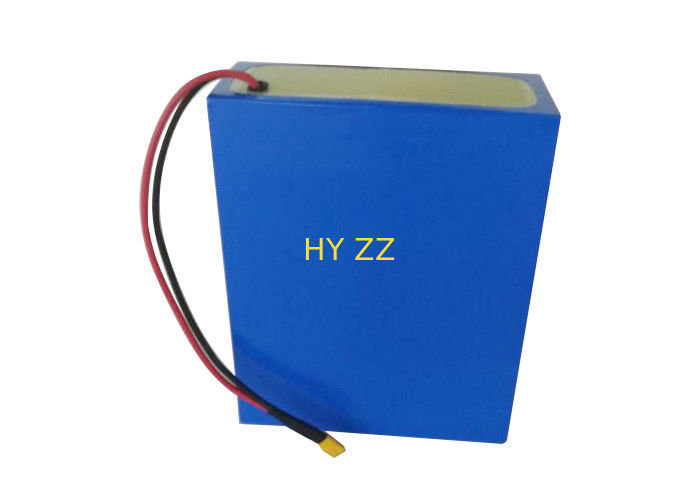

Large Capacity 4.2 V Rechargeable Lithium Polymer Battery For LED Strip

Product Details

Name:

Special Lithium Battery

Model:

24V 30000mAh

L X W X H:

295mmX148mmx74mm

Working Temperature:

Under -40°C Working Environment

Working Current:

Discharge Cutoff Voltage:

17.5V

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

High Reliable Special Lithium Battery 7.4V 400Ah Long Cycle Life Eco Friendly

Get Best Price

Portable Special Lithium Battery 14.8V 60000mAh Li On Rechargeable Batteries

Get Best Price

High Stability 7 Volt Lithium Ion Battery , Rechargeable Lithium Batteries

Get Best Price

High Density Special Lithium Battery 24V 40000mAh Fast Charge Capability

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

Large Capacity 4.2 V Rechargeable Lithium Polymer Battery For LED Strip

Model: 24V 30000mAh

Specification: 295mmX148mmx74mm

Features: effective discharge rate ≥75% under working environment of -40°C, cylindrical 18650 low temperature battery, charge cutoff voltage 29.4V, discharge cutoff voltage 17.5V, working current 6A, maximum working current 15A

Applications: Measuring instruments, meteorological instruments, polar surveys

Advantage:
1. Safety: scooter battery, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: 3C discharge Rate Cell, 30A BMS
4. Long life cycle, after 500 cycles, residual capacity is over 80% of its original
5. No memory effect,highly efficient charge anytime
6. Wide Operation temperature: -10~55°C
7. Small size and light weight
8. Low self-discharge rate: < 3% monthly
9. With single package, clear warning mark, logo. colorful printed instruction Manual

			Number	HY00047
			Version	A0
	HYLF/24/30-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Low temperature lithium battery		Internal structure:18650,,13P7SInternal structure: low temperature 18650 batteries, with bracket, 13P7S assembly structure Low temperature work protection board Environmental work temperature:-40℃-55℃Ambient operating temperature: -40℃-55℃ Working characteristics: Under the condition of low temperature 40 °C, the current is discharged to 17.5V at 0.2C, and the effective discharge rate is not lower than 70% of the normal temperature capacity.
product code	HYLF/24/30-001
L x W x H	295mmX148mmx74mm
Rated voltage	25.9VSeries structure
Rated Capacity	30Ah
Serialization	7S
Internal resistance	≤100mΩ
Discharge cutoff voltage	17.5V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	29.4V
Max.charging voltage	29.75V
Max. charging current	6A
Maximum discharge current	15A
Peak current	30±3A 2S
Rated discharge current	6A
Charging method	CC/CV		Low temperature discharge curve:
weight	5.2kg
Operating temperature	Charging	0～45℃
	Discharge	-40～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
