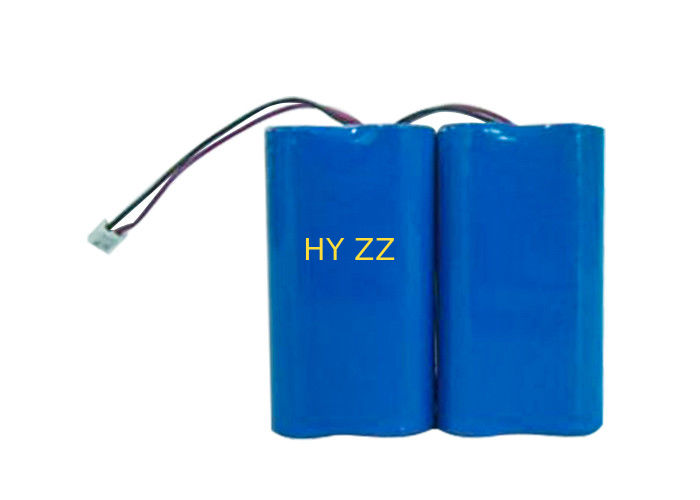

Small 4.2 Volt Rechargeable Battery Special Design Environmental Protection
Model: 14.4V 2200mAh
Specification: 38mmX38mmx72mm
Features: effective discharge rate ≥75% under working environment of -40°C, cylindrical 18650 low temperature lithium battery, charge cutoff voltage of 16.8V, discharge cutoff voltage of 10V, working current of 1.1A, maximum working current of 2.2A
Applications: Measuring instruments, meteorological instruments, polar surveys
Compared with Seal lead acid battery, lifepo4 battery has many advantages:
1. Green: Non-Toxic, comfort to RoHS.
2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)
3. Safety
The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.
4. Light weight and smaller dimension
The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.
5. Great capacity and more powerful, rechargeable battery
High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design
We can install many single cells in series and in parallel and it can fully discharge
6. Good thermal stability: - 40°C to 70°C
7. Back fast charge, good consistence, no memory effect, can equip battery charger.
Can be recharged anytime, no reduction of the capacity
8. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided.
|
|
|
Number |
HY00045 |
| Version |
A0 |
|
HYLF/14.4/2.2-001
Battery pack specification
|
Date
|
2019-5-7
|
| 1．Basic characteristics |
Product picture
|
|
Product name
|
Low temperature lithium battery
|
Internal structure:Soft pack laser welding assembly method
Low temperature work protection board
Environmental work temperature:-40℃-55℃Ambient operating temperature: -40℃-55℃
Working characteristic:40℃,0.2C10.0V,
70% Working characteristics: Under the condition of low temperature 40 °C, the current is discharged to 10.0V at 0.2C, and the effective discharge rate is not lower than 70% of the normal temperature capacity.
|
|
product code
|
HYLF/14.4/2.2-001 |
| L x W x H |
38mmX38mmx72mm |
| Rated voltage |
14.8VSeries structure |
| Rated Capacity |
2200mAh |
| Serialization |
4S |
|
Internal resistance
|
≤60mΩ |
| Discharge cutoff voltage |
10.0V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface
□ Wall terminal
□ Anderson
□ Navigation plug
□ Positive and negative lines
□ Pole
☑ Hardware contact
|
| Charging protection voltage |
16.8V |
|
Max.charging voltage
|
17.0V
|
|
Max. charging current
|
1.1A
|
|
Maximum discharge current
|
2.2A
|
|
Peak current
|
5±3A 2S |
|
Rated discharge current
|
1.1A |
| Charging method |
CC/CV |
|
|
weight
|
220g |
|
Operating temperature
|
Charging
|
0～45℃ |
|
Discharge
|
-40～55℃ |
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months
|
-10～35℃
|
|
C1 Cycle life
Cycle life
|
500 Times
|
| price |
RMB:¥ 00.00 |
|
|
Delivery period
|
25 Working day
|
|
