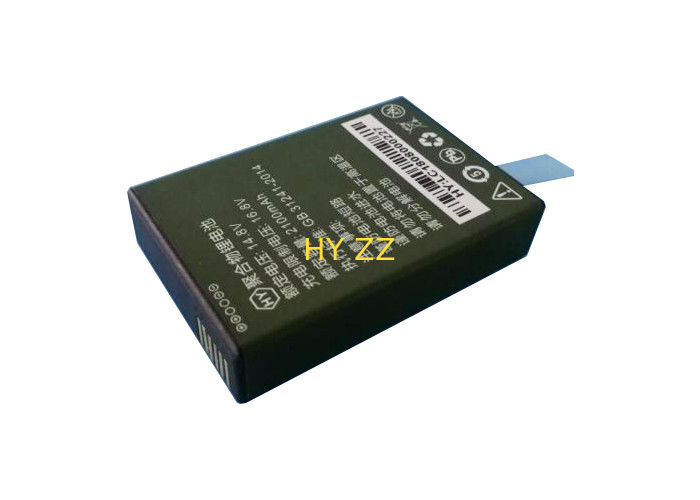

High Capacity Lithium Battery Recharge Li Ion Battery For Measuring Instruments

large capacity lithium battery

lithium ion phosphate battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

High Capacity Lithium Battery Recharge Li Ion Battery For Measuring Instruments

Product Details

Name:

Special Lithium Battery

Model:

14.4V 2100mAh

L X W X H:

20mmX60mmx90mm

Working Temperature:

Under -40°C Working Environment

Working Current:

0.5A

Discharge Cutoff Voltage:

10V

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

High Reliable Special Lithium Battery 7.4V 400Ah Long Cycle Life Eco Friendly

Get Best Price

Portable Special Lithium Battery 14.8V 60000mAh Li On Rechargeable Batteries

Get Best Price

High Stability 7 Volt Lithium Ion Battery , Rechargeable Lithium Batteries

Get Best Price

High Density Special Lithium Battery 24V 40000mAh Fast Charge Capability

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

High Capacity Lithium Battery Recharge Li Ion Battery For Measuring Instruments

Model: 14.4V 2100mAh

Specification: 20mmX60mmx90mm

Features: effective discharge rate ≥75% under -40°C working environment, polymer square low temperature lithium battery, charge cutoff voltage 16.8V, discharge cutoff voltage 10V, working current 0.5A, maximum working current 2A

Applications: Measuring instruments, meteorological instruments, polar surveys

			Number	HY00043
			Version	A0
	HYLF/14.4/2.1-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Low temperature lithium battery		Soft pack laser welding assembly method Low temperature work protection board -40℃-55℃Ambient operating temperature: -40℃-55℃ 40℃,0.2C10.0V,70%.Working characteristics: Under the condition of low temperature 40 °C, the current is discharged to 10.0V at 0.2C, and the effective discharge rate is not lower than 70% of the normal temperature capacity.
product code	HYLF/14.4/2.1-001
L x W x H	20mmX60mmx90mm
Rated voltage	14.4VSeries structure
Rated Capacity	2100mAh
Serialization	4S
Internal resistance	≤100mΩ
Discharge cutoff voltage	10.0V		Shell color □ Matt black □ Bright gray □ Fruit green + bright gray (two colors) ☑ Black Charging and discharging interface □ Wall terminal □ Anderson □ Air plug □ Positive and negative lines ☑Hardware contact
Charging protection voltale	16.8V
Max.charging voltage	17V
Max. charging current	1A
Maximum discharge current	2A
Peak current	5±3A 2S
Rated discharge current	0.5A
Charging method	CC/CV
weight	99g
Operating temperature	Charging	0～45℃
	Discharge	-40～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day

FAQ

Q1: Are you battery manufacturer or simply trading company?

Re: We are battery manufacturer, and we sincerely welcome you to visit our factory!

Q2: How do you make sure the quality?
Re: We will do the following works before assembling the pack:
a. Select capacity, same capacities cells for one pack
b. Measure the voltage, same voltage cells for one pack(difference is under 0.02v per cell)
c. Measure the inner resistance,same IR cells for one pack (difference is under 1m Ohm)
All above steps are very strict to make sure the pack performance is perfect.
Q3: What battery packs do you have ?

Re: Our main productus are 18650 battery pack, e-bike battery, lifepo4 storage battery, polymer battery, or any customized battery projects.
Q4: Do you accept OEM/ODM for battery?

Re: yes, please don’t hesitate to contact our sales team for more details.
