High Power Rechargeable Batteries 7.4V 1700mAh Long Cycle Life 500 Times

large capacity lithium battery

eco ion battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

High Power Rechargeable Batteries 7.4V 1700mAh Long Cycle Life 500 Times

Product Details

Name:

Special Lithium Battery

Model:

7.4V1700mAh

L X W X H:

20mmX68mmx70mm

Working Temperature:

Under -40°C Working Environment

Working Current:

0.5A

Applications:

Meteorological Instruments, Polar Surveys,etc.

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

High Reliable Special Lithium Battery 7.4V 400Ah Long Cycle Life Eco Friendly

Get Best Price

Portable Special Lithium Battery 14.8V 60000mAh Li On Rechargeable Batteries

Get Best Price

High Stability 7 Volt Lithium Ion Battery , Rechargeable Lithium Batteries

Get Best Price

High Density Special Lithium Battery 24V 40000mAh Fast Charge Capability

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

High Power Rechargeable Batteries 7.4V 1700mAh Long Cycle Life 500 Times

Model: 7.4V1700mAh

Specification: 20mmX68mmx70mm

Features: effective discharge rate ≥75% under -40°C working environment, polymer square low temperature lithium battery, charge cut-off voltage 8.4V, discharge cut-off voltage 5V, working current 0.5A, maximum working current 3A

Application

♦ Wheelchairs and scooters
♦ Solar/wind energy storage
♦ Back-up power for small UPS
♦ Golf trolleys & buggies
♦ Electric bikes

Advantage:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price&High quality
9, Good consistency, low self discharge
10, Light weight, small and customized size

			Number	HY00041
			Version	A0
	HYLF/7.4/1.7-001 Battery pack specification		Date	2019-5-7

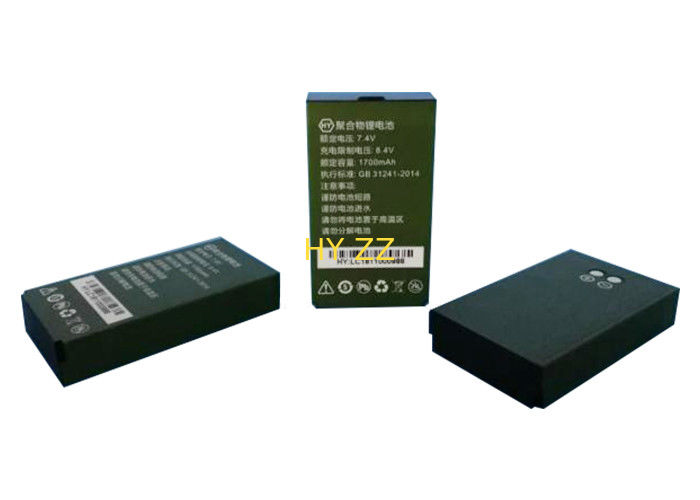

1．Basic characteristics			Product picture
Product name	Low temperature lithium battery		Soft pack laser welding assembly method Low temperature work protection board -40℃-55℃Ambient operating temperature: -40℃-55℃ 40℃,0.2C5.0V,70%.Working characteristics: Under the condition of low temperature 40 °C, the current is discharged to 5.0V at 0.2C, and the effective discharge rate is not lower than 70% of the normal temperature capacity.
product code	HYLF/7.4/1.7-001
L x W x H	20mmX68mmx70mm
Rated voltage	7.4VSeries structure
Rated Capacity	1700mAh
Serialization	2S
Internal resistance	≤60mΩ
Discharge cutoff voltage	5.0V		Shell color □ Matt black □ Bright gray □ Fruit green + bright gray (two colors) ☑ Black Charging and discharging interface □ Wall terminal □ Anderson □ Air plug □ Positive and negative lines ☑Hardware contact
Charging protection voltage	8.4V
Max.charging voltage	8.5V
Max. charging current	3A
Maximum discharge current	3A
Peak current	6±3A 2S
Rated discharge current	0.5A
Charging method	CC/CV
weight	87.3g
Operating temperature	Charging	0～45℃
	Discharge	-40～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life=	500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
