Place of Origin:
Changsha, China
Brand Name:
HYZZ
Certification:
ISO9001, CE, CB, UN38.3
Document:

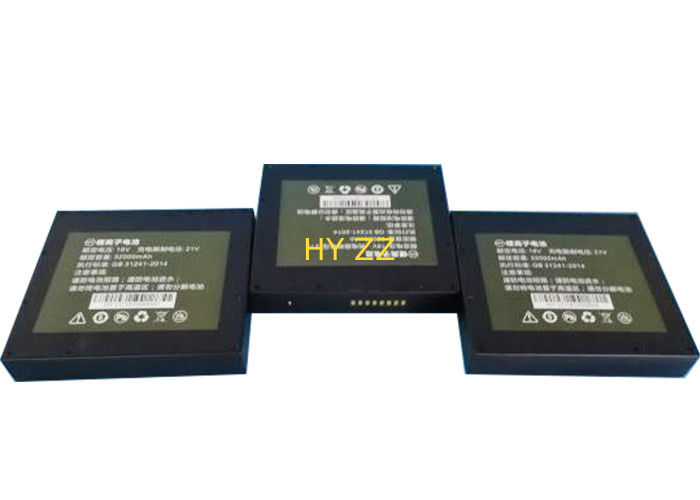

Energy Saving Lithium Ion Phosphate Battery , 18V 30Ah Hi Power Battery
Model: 18V30Ah
Specification: 230mmX210mmx42mm
Features: effective discharge rate ≥75% under -40°C working environment, polymer square low temperature lithium battery, charge cut-off voltage 21V, discharge cut-off voltage 12.5V working current 5A, maximum working current 10A, SMBus communication
Typical Application
l Camper Vans: Camping car/Recreational Vehicles/motorhome
l Marine: boats/Yachting
l Electrical Car: Floor Machines/motorbike/electric golf car/forklift
l Power Tools: Electrical cropper/Electric drill/Electric Saw/Electric Hammer.
l Energy storage: backup power supply/solar energy storage
l LED light: Miner’s lamp/Led lighting/small home application/Party lights.
Key Features
♦ Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦ Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦ Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦ Wider Temperature Range : -20℃~60℃
♦ Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
|
|
Number | HY00040 | ||
| Version | A0 | |||
|
HYLF/18/30-001 Battery pack specification |
Date
|
2019-5-7 |
||
| 1.Basic characteristics |
Product picture |
|||
|
Product name |
Low temperature lithium battery |
Soft pack laser welding assembly method
Low temperature work protection board
SMBusSMBus communication
-40℃-55℃Ambient operating temperature: -40℃-55℃
40℃,0.2C2.5V,70%.Working characteristics: Under the condition of low temperature 40 °C, the current is discharged to 2.5V at 0.2C, and the effective discharge rate is not lower than 70% of the normal temperature capacity.
|
||
|
product code |
HYLF/18/30-001 | |||
| L x W x H | 230mmX210mmx42mm | |||
| Rated voltage | 18VSeries structure | |||
| Rated Capacity | 30Ah | |||
| Serialization | 5S | |||
|
Internal resistance |
≤120mΩ | |||
| Discharge cutoff voltage | 12.5V |
Shell color
□ Matt black □ Bright gray □ Fruit green + bright gray (two colors) ☑ Balck
Charging and discharging interface □ Wall terminal □ Anderson □ Air plug □ Positive and negative lines ☑ Hardware contact
|
||
| Charging protection voltage | 21V | |||
|
Max.charging voltage |
21.25V |
|||
|
Max. charging current |
3A
|
|||
|
Max. sustained discharge current |
5A |
|||
|
Peak current |
10±3A 2S | |||
|
Rated discharge current |
4A | |||
| Charging method | CC/CV |
|
||
|
weight |
1280g | |||
|
Operating temperature |
Charging |
0~45℃ | ||
|
Discharge |
-40~55℃ | |||
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months |
-10~35℃ |
|||
|
C1 Cycle life |
500 Times |
|||
| price | RMB:¥ 00.00 | |||
|
Delivery period |
25 Working day |
|||
