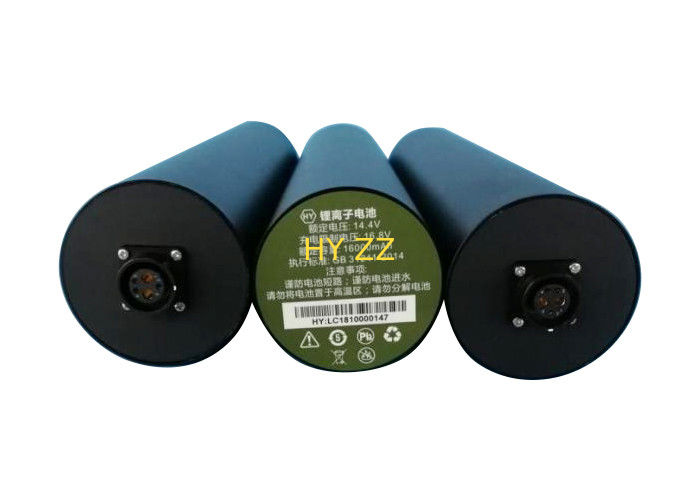

14.4V 15.4Ah Special Lithium Battery Lithium Ion Lifepo4 Low Internal Resistance

large capacity lithium battery

lithium ion phosphate battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

14.4V 15.4Ah Special Lithium Battery Lithium Ion Lifepo4 Low Internal Resistance

Product Details

Name:

Special Lithium Battery

Model:

14.4V 15.4Ah (columnar)

L X W X H:

Ф60mmX310mm

Working Temperature:

Under -40°C Working Environment

Working Current:

Applications:

Asuring Instruments, Meteorological Instruments, Polar Surveys

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

High Reliable Special Lithium Battery 7.4V 400Ah Long Cycle Life Eco Friendly

Get Best Price

Portable Special Lithium Battery 14.8V 60000mAh Li On Rechargeable Batteries

Get Best Price

High Stability 7 Volt Lithium Ion Battery , Rechargeable Lithium Batteries

Get Best Price

High Density Special Lithium Battery 24V 40000mAh Fast Charge Capability

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

14.4V 15.4Ah Special Lithium Battery Lithium Ion Lifepo4 Low Internal Resistance

Model: 14.4V15.4Ah (columnar)

Specification: Ф60mmX310mm

Features: effective discharge rate ≥75% under -40°C working environment, cylindrical 18650 low temperature lithium battery, charge cutoff voltage 16.8V, discharge cutoff voltage 10V, working current 3A, maximum discharge current 5A, aluminum alloy casing, matt black

Application:

1. Electric bicycle, Motorbike, balance scooter, golf cart.
2. Emergency power supply, LED light and flashlight.
3. Consumer applications.
4. Electrical tools.
5. Solar lawn, Remote control.
6. Backup power supply, Medical Device.

Advantages:

1. High capacity and high output and reliable

2. Friendly to the environment:No Cadmium, Mercury effect, Lead

3. Low internal resistance, No memory effect

4. Long cycle life:more than 500 cycles under normal use

5. Low self-discharge character

6. UL,CE,ROHS,EN62133,IEC ,SGS certificated

			Number	HY00039
			Version	A0
	HYLF/14.4/15.4-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Low temperature lithium battery		Internal structure: column assembly Low temperature work protection board
product code	HYLF/14.4/15.4-001
L x W x H	Ф60mmX310mm
Rated voltage	14.4VSeries structure
Rated Capacity	15.4Ah
Serialization	7P4S
Internal resistance	≤120mΩ
Discharge cutoff voltage	10V		Shell color ☑ Matt black □ Bright gray □ Fruit green + bright gray (two colors) □ White Charging and discharging interface □ Wall terminal □ Anderson ☑ Air plug □ Positive and negative lines Batteries:3.7V/2200mAH-18650
Charging protection voltage	16.8V
Max.charging voltage	17V
Max. charging current	3A
Max. sustained discharge current	5A
Peak current	10±3A 2S
Rated discharge current	3A
Charging method	CC/CV		Low temperature cell discharge performance
weight	1280g
Operating temperature	Charging	0～45℃
	Discharge	-40～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life	500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
