Place of Origin:
China
Brand Name:
Pinsheng energy
Certification:
CE , MSDS , UN38.8 , ISO9001
Model Number:
WL8006
Document:
Attribute | Value |
---|---|
Model No.: | FU-ID-21700 |
Nominal Voltage: | 36V/48V/52V/60V/72V (Optional voltage) |
Max Configuration: | 21700: 10S6P 13S5P |
Standard Charge Current: | 5A |
Max Charge Current: | 15A |
Fit for Motor: | 750W 1000W |
Continouns Discharge Current: | 40A-80A optional, can be customized |
BMS Protection Function: | Over charge, Over discharge,Over current, Short circuit, Teperature, Balance act. |
BMS Communication protocol: | Need additional requirements--- RS485/RS232/CAN BUS/APP/GPS positioning) |
Battery Size: | L458/393*W84*H109mm |
Cell Brand | 3.7V Japan Korea brand optional |
Cell Brand-China | 3.7V Chinese Brand Grade A cell |
Battery Resistance | ≤100mΩ |
Discharge Cut-Off Voltage | upon request (Please consult customer service) |
Charge Voltage: | upon request (Please consult customer service) |
Cycle Life: | 80% capacity after 800-1000 cycles |
Cell Type: | LI(NiCoMn)O2 18650/21700 Cell |
Cell Capacity: | 4500mAh,4800mAh,5000mAh |
Warranty: | 12 months |
Cell Weight: | 21700-75g |
Battery Pack Weight: | as required |
Charging Working Temperature: | 0~45℃ |
Discharge Working Temperature: | -20~60℃ |
Storage Temperature: | -10~40°℃ |
Fit Motor: | Gear motor, Gearless motor, Brushless DC motor, bafang motor, Tongsheng motor, Golden motor, etc. |
Fit for bike: | Electric bike, E-scooters, Folding bike, City bike, Mountain bike, Fat bike, Cruiser bike, Trike bike, ect |
Type | Rechargeable Li-Ion Battery |
Material | LiNiMnCoO2 |
Cell Weight | 21700-75g |
Capacity | 4500mAh,4800mAh,5000mAh |
Storage Temperature | -10~40°℃ |
Recharge Cycles | 1000 |
Safety Certification | CE/RoHS/UN38.3 |
Rechargeable | Yes |
Applications | E-Bike |
!!!How to choose or upgrade a suitable Dorado battery?
Step 1:

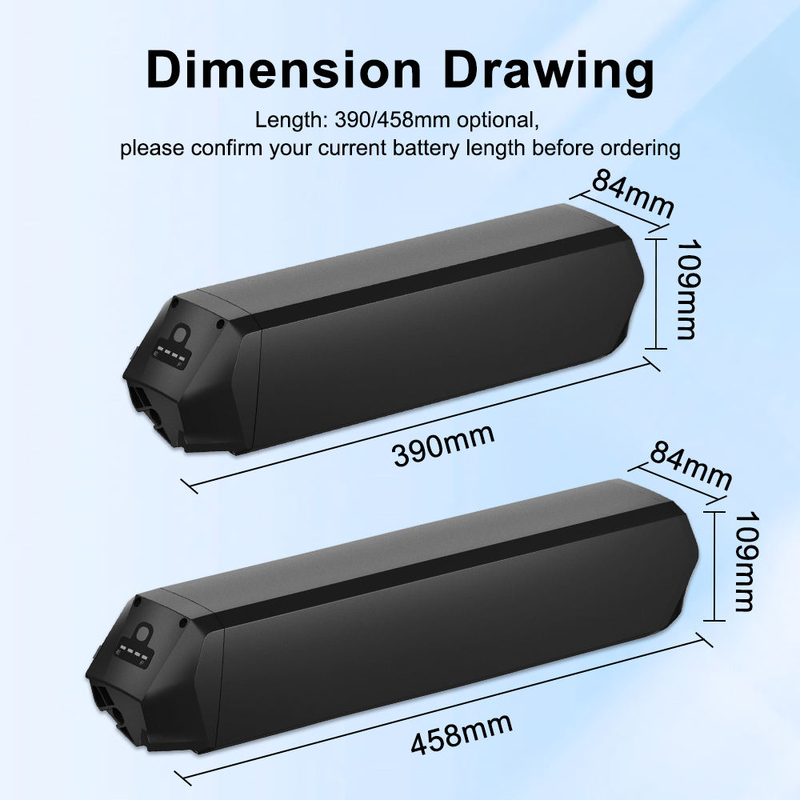

All Dorado batteries have 2 lengths, L460mm or L390mm, please confirm and choose your original battery length before purchasing:
Step 2:
Confirm and select your original battery voltage, 36V or 48V, which can be seen on the battery label or charger label, the charger output voltage is 42V=36V battery, 54.6V=48V battery
Step 3:

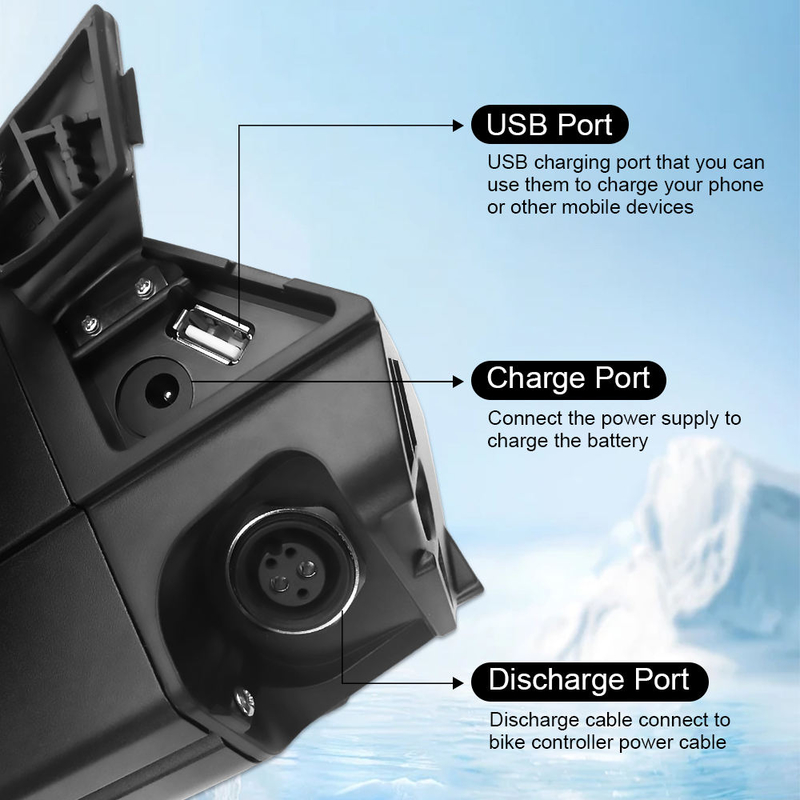

Check the discharge port of your original battery, whether it is a 2pin discharge port, we provide 2pin by default, if your original battery is 6pin, please contact customer service.
Step 4:
Select the battery capacity (Ah) and model(pro plus max 2170)you need, the larger the Ah, the longer the riding mileage, without
any other impact on the bike.
NCM Moscow Milano Aspen Venice Electric Bike Battery 48V13Ah 16Ah 17.5Ah Reention Dorado Battery for DEHAWK i5 Yukon750 Fitifito EBike
The Rechargeable Li Ion Battery should be packaged in a sturdy box or container with the appropriate cushioning material to prevent shifting and ensure safe delivery. The package should be sealed with waterproof tape.
Shipping is done using reliable carriers like FedEx, UPS, or DHL. The package is clearly labeled with the recipient's address and contact information.
