High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
Model: 60V/37AH
Specification: 148mm*160mm*270mm
Parameters: working temperature -20°C-60°C, ternary lithium battery 17S, continuous working current 32A, maximum working current 50A, 8A charging, charging upper limit 71.4V, discharge cutoff 47.6V, epoxy resin board packaging, optional sheet metal , plastic case, aluminum alloy and other shell packaging status, weight 11.5KG.
Lithium battery protection Short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection application area Industrial machinery and equipment, UPS system
Features& Advantage:
1. Safety: scooter battery, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: 3C discharge Rate Cell, 30A BMS
4. Long life cycle, after 500 cycles, residual capacity is over 80% of its original
5. No memory effect,highly efficient charge anytime
6. Wide Operation temperature: -10~55°C
7. Small size and light weight
8. Low self-discharge rate: < 3% monthly
9. With single package, clear warning mark, logo. colorful printed instruction Manual
|
|
|
Number |
HY00067 |
| Version |
A0 |
|
HYLF/60/37-001
Battery pack specification
|
Date
|
2019-5-7
|
| 1．Basic characteristics |

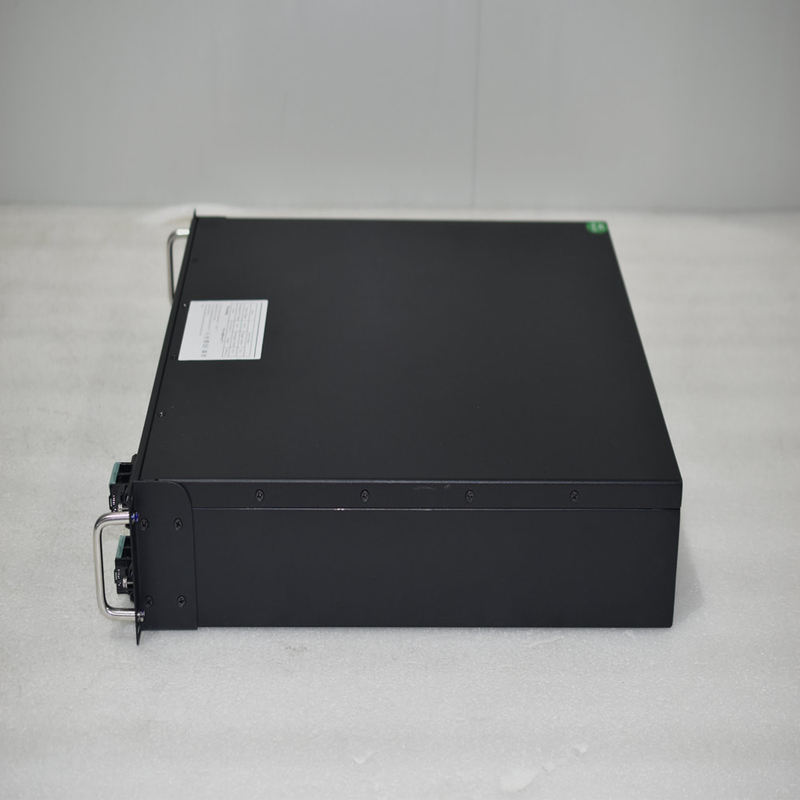

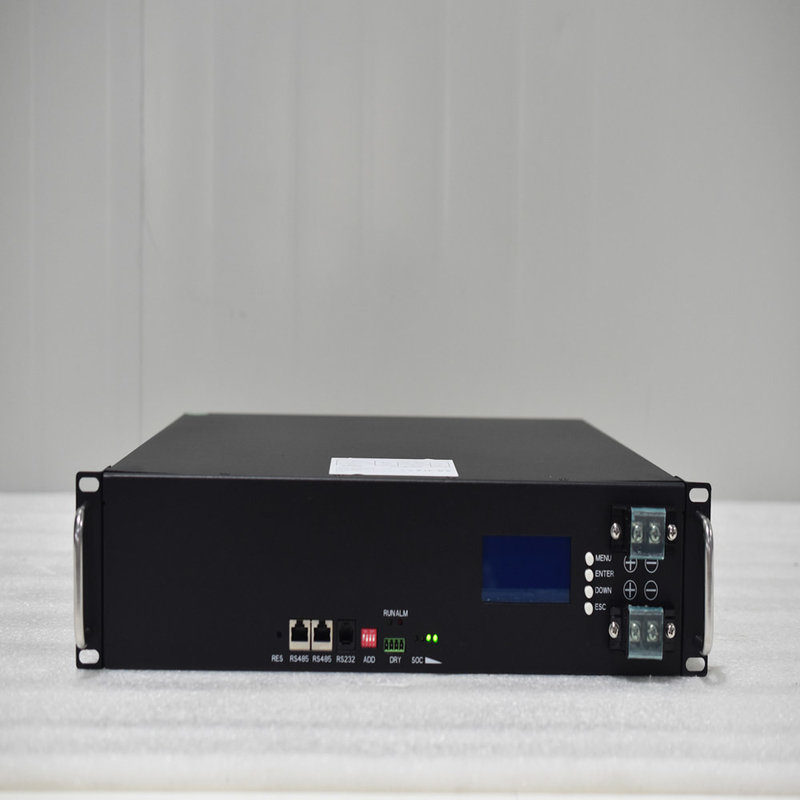

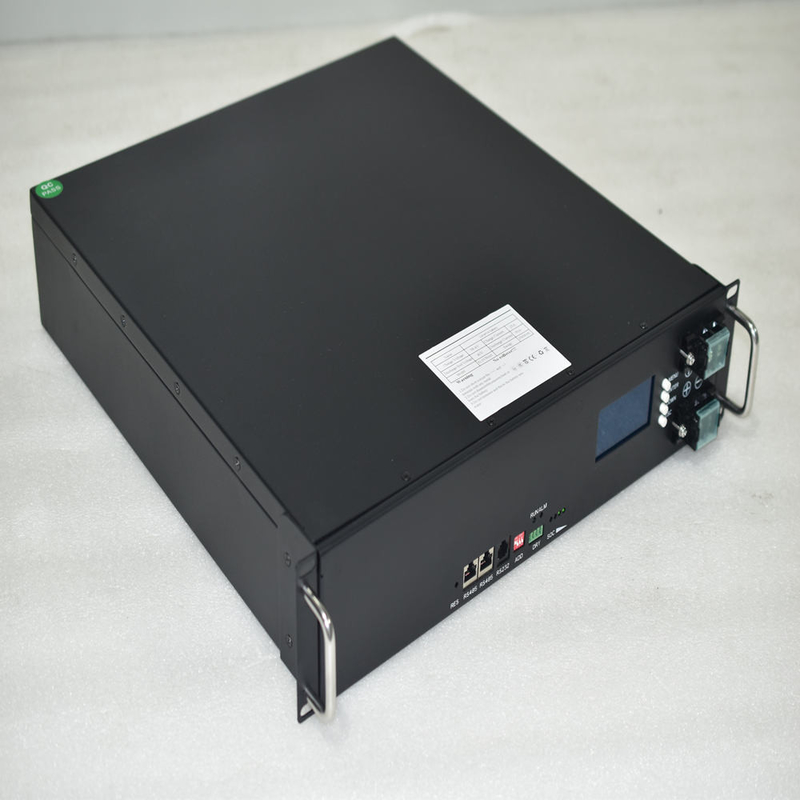

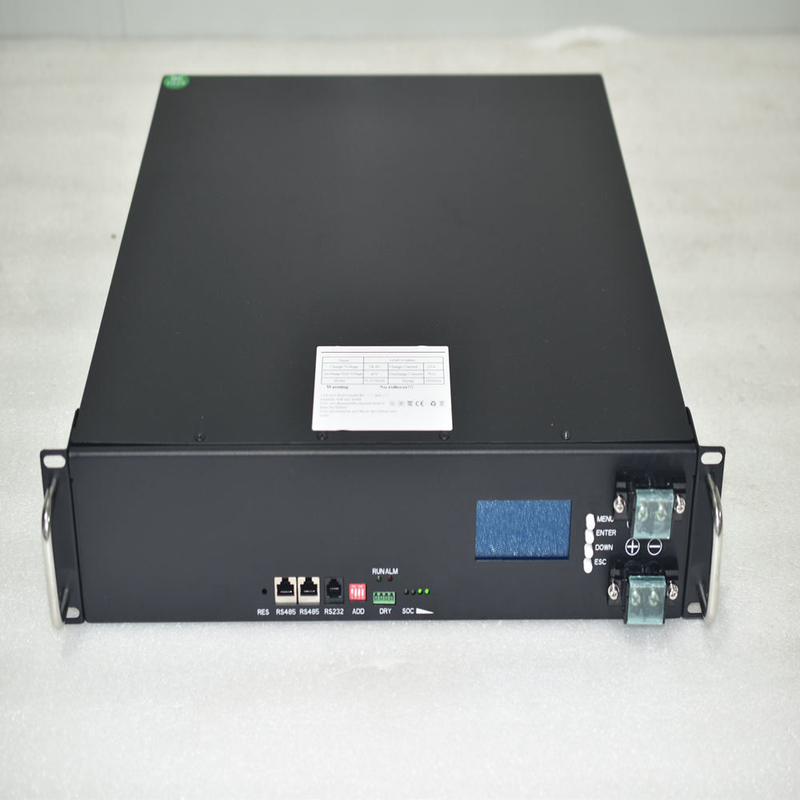

Product picture
|
|
Product name
|
Industrial lithium battery
|
Batteries:-3.6V37AHTernary lithium polymer battery -3.6V37AH
Shell material: epoxy resin board packaging, optional sheet metal, plastic shell, aluminum alloy, etc.
|
|
product code
|
HYLF/60/37-001 |
| L x W x H |
148mm*160mm*270mm |
| Rated voltage |
60VSeries structure |
| Rated Capacity |
37Ah |
| Serialization |
17S |
|
Internal resistance
|
≤100mΩ |
| Discharge cutoff voltage |
47.6V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface
□ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
| Charging protection voltage |
71.4V |
|
Max.charging voltage
|
72.25V
|
|
Max. charging current
|
8A
|
|
Maximum discharge current
|
50A
|
|
Peak current
|
80±5A 2S |
|
Rated discharge current
|
30A |
| Charging method |
CC/CV |
Different temperature discharge curves:
|
|
weight
|
11.5Kg |
|
Operating temperature
|
Charging
|
0～45℃ |
|
Discharge
|
-20～55℃ |
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months
|
-10～35℃
|
|
C1 Cycle life
Cycle life
|
1500 Times
|
| price |
USD:399 |
|
Delivery period
|
25 Working day
|
High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
High voltage 350W 500W 800W Motor 60v 30ah lithium ion battery pack for electric scooter electric city bike
Company
Hunan Pinsheng Energy Technology Co.,LTD located in Changsha City, Hunan Province, We focus on developing and producing Li-ion battery and battery
system integration ,through many years development and research.we have formed a complete industry chain from research, production to sales. Our
lithium ion battery has the characteristics of longer recycle life,more higher security and more reliability, higher energy density and other superior performance.
products are widely used in electric bikes, E-scooter, electric motorcycles, electric tricycles, golf cart,fork lift,electric vehicles, UPS,telecommunication system,
off grid wind &solar energy storage and etc .Pinsheng Energy Battery products sell well at home and abroad ,we has strict quality guarantee system to
ensure high-quality products. We put customers' needs at the first and listen to their suggestions.We continuously improve our product quality and services.
We have our own R&D team so customized products are fine for us,Pinsheng Energy has now became a competetive manufacturer in China, we are edicated
to be a top OEM &ODM manufacturer in China .
