Place of Origin:
China
Brand Name:
Pinsheng Energy
Certification:
CE , MSDS , UN38.8 , ISO9001
Model Number:
PE7230-1

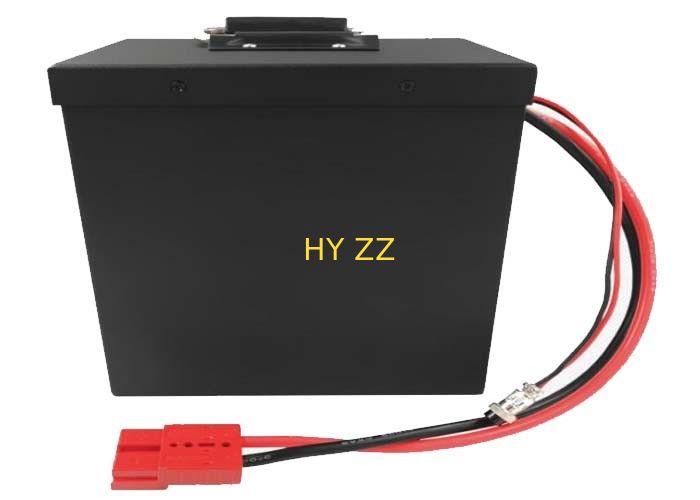

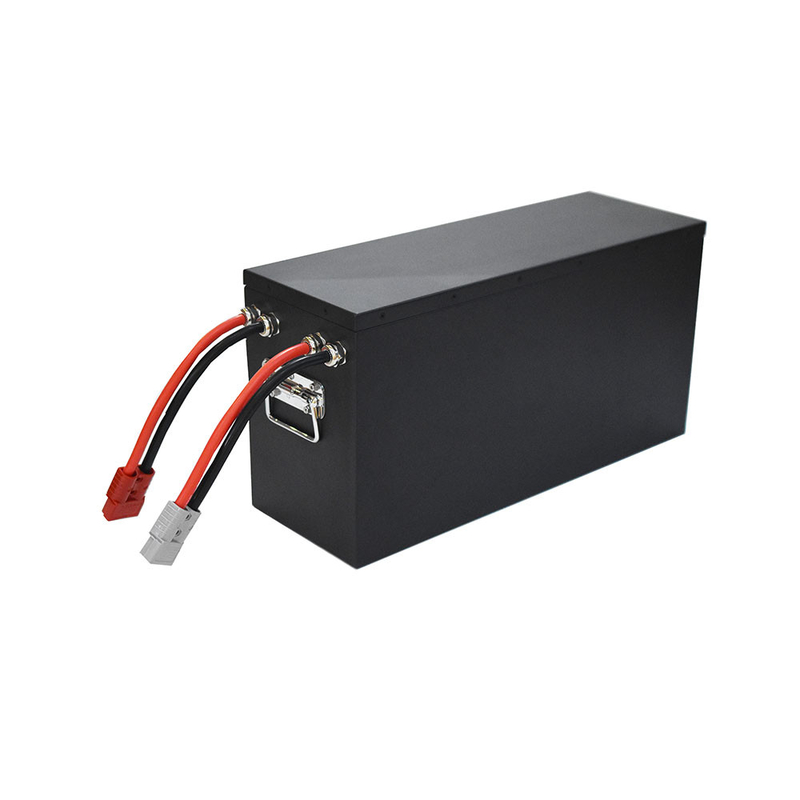

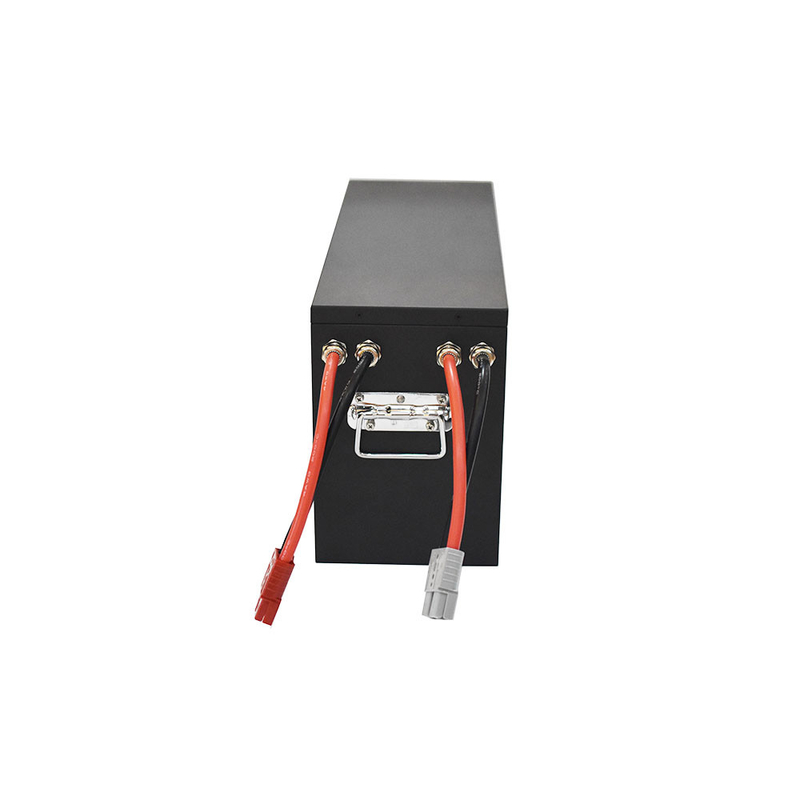

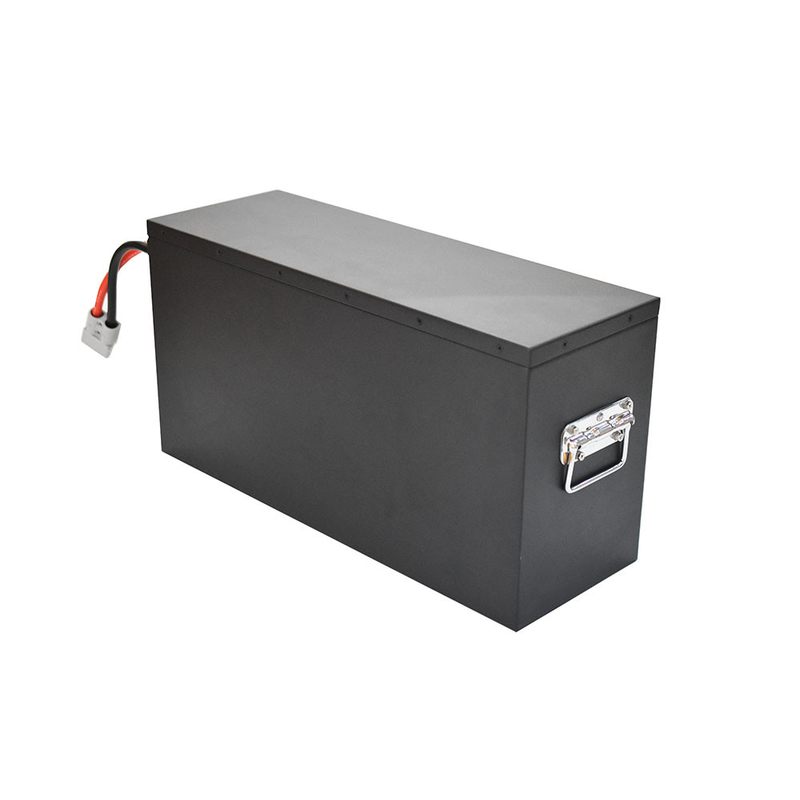

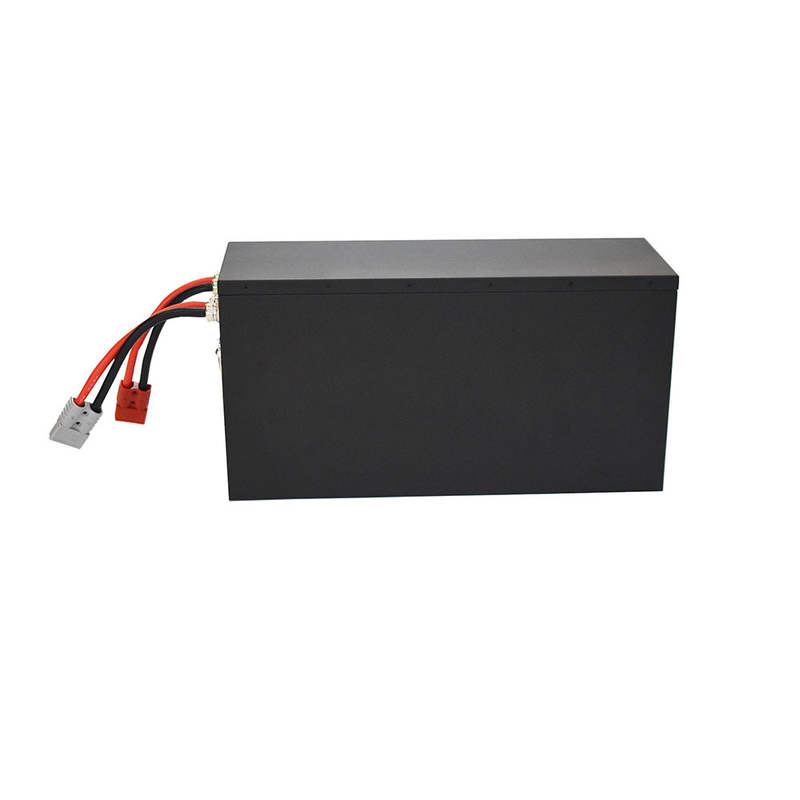

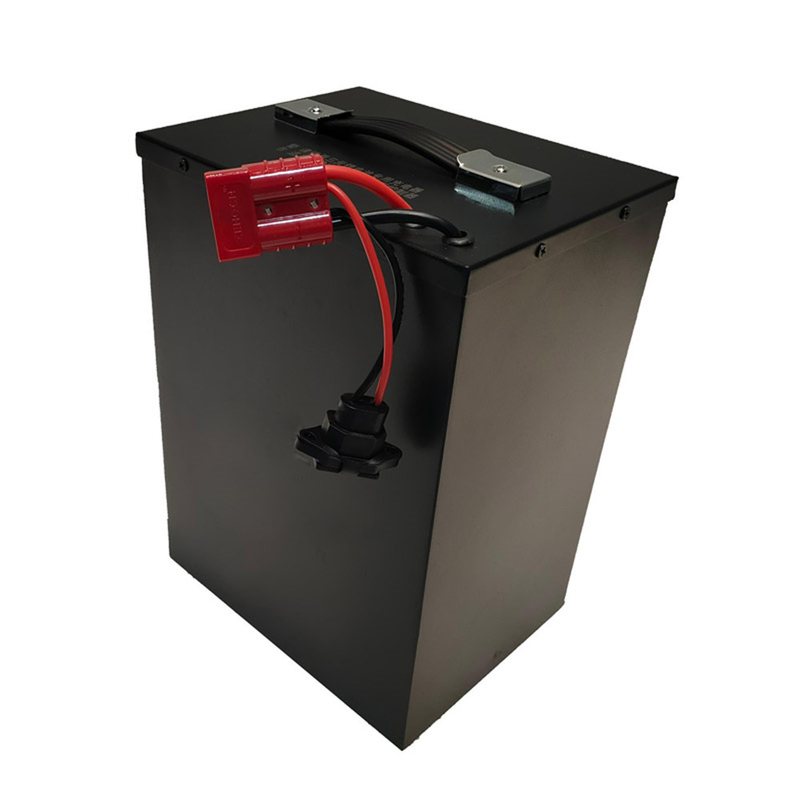

E-Scooter Battery 48V 72V 30Ah 40Ah 50Ah LiFePO4 NCM Electric Bike Lithium ion Battery Pack
Model: PE7230-1
Parameters:
1. Product Name: 72V 30Ah Ebike Battery
2. Dimension: 220 (L) * 170 (W) * 300 (T) mm
3. Weight: 21.9Kgs
4. Material: Steel
5. Color: Black/Customized
6. Working Voltage: 72V
7. Capacity: 30Ah
8. Charging Cut Off Voltage: 60V
9. Discharging Limit Voltage: 84V
10. Battery Cell: NCM or LFP
11. Working Temperature: -20°C ~ 60°C
12. Charging Temperature: 0°C ~ 55°C
Application
Widely use for E-bike , Electric Bicycle , E-scooter , Electric Scooter , Electric Motorbicycle , EV , RV , AGV .
Advantage
1. Green - Environmental friendly
2. Safe - We Just do A Grade Quality
3. High Performance - High density of energy
4. Longer cycle life - 3,500 Cycle Life
5. Low internal resistance - ＜1mΩ
6. Zero memory effect
| Item | Detail |
|---|---|
| Product Name | 72V E-scooter Battery |
| Series - Parallel Mode | 14S4P |
| Cycle Life | 3500 Times 100% DOD |
| Dimension | 220 (L) * 170 (W) * 300( H ) mm |
| Weight | 21.9Kgs |
| Battery Box Material | Steel |
| Color | Black / Customized |
| Working Voltage | 72V |
| Capacity | 30Ah |
| Charging Cut Off Voltage | 60V |
| Discharging Limit Voltage | 84V |
| Battery Cell | NCM or LFP ( 18650 21650 32700 ) Polymer Battery |
| Working Temperature | -20°C ~ 60°C |
| Charging Temperature | 0℃ ~ 55℃ |
| Working Humidity | ＜80 % |
| Internal Resistance | 1mΩ |
| Self Discharging Rate | 3% Per Month |
| OEM / ODM | Support |
| Charging / Discharging Interface | Customized |
