24 Volt 20Ah LifePO4 Lithium Battery Lightweight For E Bike / Power Tools

24 Volt 20Ah LifePO4 Lithium Battery Lightweight For E Bike / Power Tools

lithium iron phosphate battery

lifepo4 rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Model Number:

HY00085

Contact Us
Request A Quote
Product Details
Name:
LifePO4 Lithium Battery
Model:
24V 20Ah
L X W X H:
264mmX164mmx64mm
Application:
E-bike, Power Tools, New Energy Vehicles
Charging Protection Voltage:
28.8V
Discharge:
-20~55℃
Payment & Shipping Terms
Packaging Details
foam, wooden box / foam, carton, tray
Delivery Time
22 days
Payment Terms
L/C, T/T
Supply Ability
10,000 PCS per month
Product Description

 24 Volt 20Ah LifePO4 Lithium Battery Lightweight For E Bike / Power Tools



Model: 24V20Ah

Dimension: 264mmX164mmx64mm

Features: iron lithium 81160227/8S; charge cut-off voltage:29.2V; discharge cut-off voltage: 20V; working current:10A; weight:5.6KG



Key advantages
High energy density: more energy with less weight and footprint.
High charge currents (short charge period)
High discharge currents
Ultra-high cycling performance (up to six times the battery life of a conventional battery)
High effciency between charging and discharging
Higher continual power available
Wide operating temperature
Predictable end of life due BMS controller
The loweat possible TCO






Application Lithium battery pack:
E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.
Tips: If you see our products and have questions about the products, please contact our account manager to send your specific needs, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!







  Number HY00085
Version A0

HYLF/24/20-001

Battery pack specification

Date

2019-5-7

1.Basic characteristics

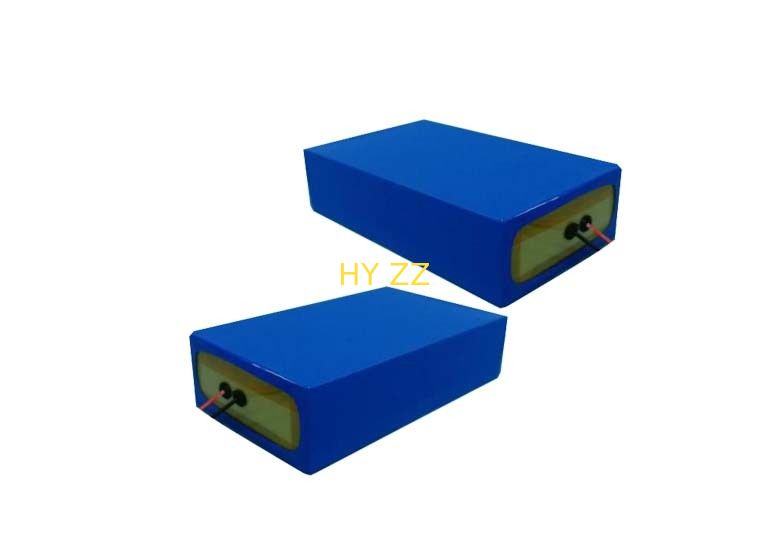

Product picture

Product name

Industrial lithium battery

Batteries:Lithium iron phosphate battery





product code

HYLF/24/20-001
L x W x H 264mmX164mmx64mm
Rated voltage 24VSeries structure
Rated Capacity 20Ah
Serialization 8S

Internal resistance

≤100mΩ
Discharge cutoff voltage 18.4V

Shell color



□ Sub black



□ Bright gray



□ +Fruit green + bright gray two-color



□ White+ black





☑ Blue thermoplastic film



Charging and discharging interface

□ Wall terminal



□ Anderson



□ Navigation plug



☑ Positive and negative lines



□ Pole



□ Hardware contact









Charging protection voltage 28.8V

Max.charging voltage

29.2V

Max. charging current

10A

Maximum discharge current

10A

Peak current

20±2 2S

Rated discharge current

5A
Charging method CC/CV











weight

5.6Kg



Operating temperature



Charging

0~45℃

Discharge

-20~55℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months



-10~35℃

C1 Cycle life

Cycle life

1500 Times

price RMB:¥ 00.00

Delivery period

25 Working day
