Customized Li Ion Battery Management System Protection Circuit Control

BI5116G
BI5116G integrated electric
Pool Management System Specification


Date


2019-5-7

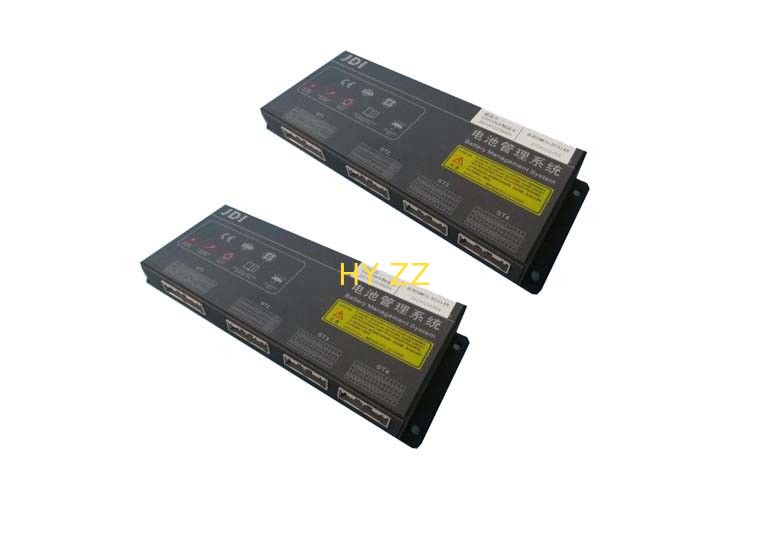

Product picture

Product name

BMSIntegrated BMS battery management system

system structure:



The battery management system is an important part of the electric vehicle system. The BIU series integrated BMS is designed for medium and low speed vehicles, using automotive grade components and IP54 protection. The product has strong scalability, which can complete the collection, management and control functions of a single box. It can also externally extend the application scenario of BMU to adapt to multiple cabinets. It is widely used in low-speed vehicles to meet the system management requirements of automotive-grade power battery packs. It is suitable for ternary lithium-ion batteries, lithium iron phosphate, lithium manganate, titanium. A secondary battery such as lithium acid having a cell voltage in the range of 0 to 5V.
This product is mainly composed of a battery integrated management module BIU (BIU), display screen, shunt, wiring harness and other accessories. BIU can separately collect and manage 16/32/48 string batteries, and support up to 10 16-string slaves. Expansion. The system is extended with a daisy-chain topology to obtain battery sampling information in real time. When the electric vehicle system works, BIU communicates with the vehicle controller, intelligent charging device, instrument and other equipment through the CAN bus to display the status information, power, SOC, etc. of the battery pack. After the vehicle controller reads the BMS data, the motor is controlled by the intelligent motor controller. BMS can also communicate with on-board chargers and fast charging stations, and has connection confirmation functions such as charging port temperature detection, CC, CP, CC2 and other national standards.

product code

BMS:16S32S48S,BMS integrated battery management system is divided into: 16S32S48S, weight and specifications are as follows
:




System topology:







Delivery period

25 Working day
