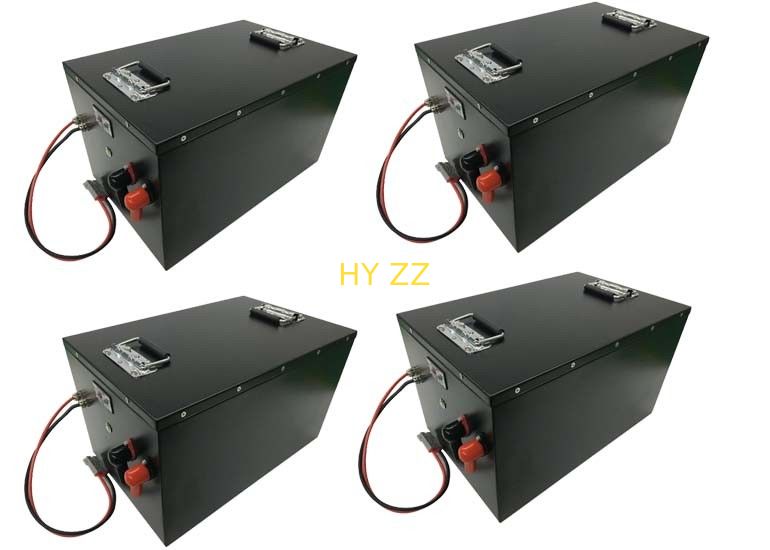

Lithium 12v Automotive Battery Lighter Weight High Voltage Rechargeable Batteries

Lithium 12v Automotive Battery Lighter Weight High Voltage Rechargeable Batteries

lithium ion car battery

lightweight automotive battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Contact Us
Request A Quote
Product Details
Features:
Lighter Weight
Name:
Rechargeable Li Ion Battery
Model:
12V 500AH
L X W X H:
480mm*311.5mm*282.5mm
Working Temperature:
-20°C ~ 60°C
Charging:
50A
Payment & Shipping Terms
Packaging Details
foam, wooden box / foam, carton, tray
Delivery Time
22 days
Payment Terms
L/C, T/T
Supply Ability
10,000 PCS per month
Product Description

Lithium 12v Automotive Battery Lighter Weight High Voltage Rechargeable Batteries





Model: 12V 500AH

Dimension: 480mm*311.5mm*282.5mm;

Parameter:

working environment:-20℃-60℃;Lithium iron phosphate battery 4S;Charge cutoff voltage:14.4V;Discharge cutoff voltage:9.6V;

Continuous 240A discharge;50A Charging; Wall terminal with protective cover and LCD display



Application:
flashlight ,power tools, electric screw driver,drill, wrench, etc.



Key Features :
♦ Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦ Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦ Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦ Wider Temperature Range : -20℃~60℃
♦ Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation







  Number HY00078
Version A0

HYLF/12/500-001

Battery pack specification

Date

2019-5-7

1.Basic characteristics

Product picture

Product name

Industrial lithium battery

Batteries:3.2V100AHLithium iron phosphate battery 3.2V100AH







product code

HYLF/12/500-001
L x W x H 480mm*311.5mm*282.5mm
Rated voltage 12.8VSeries structure
Rated Capacity 500Ah
Serialization 4S

Internal resistance

≤100mΩ
Discharge cutoff voltage 9.6V

Shell color



☑ Sub black



□ Bright gray



□ +Fruit green + bright gray two-color



□ White



□ Blue thermoplastic film



Charging and discharging interface

□ Wall terminal



□ Anderson



□ Navigation plug



☑ Positive and negative lines



□ Pole



□ Hardware contact









Charging protection voltage 14.4V

Max.charging voltage

14.6V



Max. charging current

50A



Maximum discharge current

240A



Peak current

400±2 2S

Rated discharge current

240A
Charging method CC/CV



LCD.Front panel content: through-wall terminal with protective cover and LCD display.

weight

56.5Kg



Operating temperature



Charging

0~45℃

Discharge

-20~55℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months



-10~35℃

C1 Cycle life

Cycle life

1500 Times

price RMB:¥ 00.00

Delivery period

25 Working day
