Light Weight Li Ion Battery Explosion Proof 18650 Battery High Discharge
Model: 3.7V 1500mAh
Specification: 10mmX34.2mmx54mm
Features: -20°C ~ 60°C working environment, lithium manganese oxide battery, charge cut-off voltage 4.2V, discharge cut-off voltage 3.0V, working current 0.5A, maximum operating current 1.1A
Features:
Lithium Ion Polymer batteries provide the performance of the Li-ion in a thin or moldable package.They do not use a volatile liquid electrolyte and can sustain significant abuse without explosion or fire.
The lithium polymer uses a polymer gel electrolyte to replace the traditional liquid electrolyte.Lithium-polymer finds its market niche in wafer-thin geometries, such as batteries for credit cards and other such applications.Expected cycle life is about 500+cycles.
Advantages:
1. Safe and reliable, environmentally friendly,no memory effect
2. Improved safety
3. Very thin profile. Thickness can be less than 1 mm, can be stuffed into the credit card
4. Light weight & High capacity
5. Lower internal impedance
6. Flexible size, customized cell size
Applicitions:
1. Portable DVD, Laptops,MP3, MP4, MD, digital cameras, mobile phone,Camera, PHSphone
2. Communication devices, Instrumentation, Power tools
3. Aircraft model, Car model, Electric toys
4. Miner's lamp, Small UPS, GPS,wireless mouse, calculators, pagers, PDA
|
|
|
Number |
HY00053 |
| Version |
A0 |
|
HYLF/3.7/1.5-001
Battery pack specification
|
Date
|
2019-5-7
|
| 1．Basic characteristics |

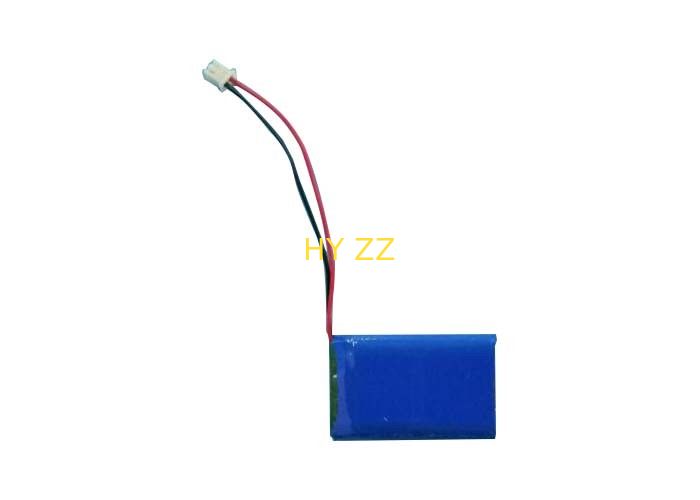

Product picture
|
|
Product name
|
Explosion-proof lithium battery
|
Working characteristics: cathode material lithium manganate, intrinsically safe mine explosion-proof lithium battery, mainly used in mining and underground operation areas, such as lithium batteries for miners' lamps equipped with workers, and lithium batteries for small instruments. |
|
product code
|
HYLF/3.7/1.5-001 |
| L x W x H |
10mmX34.2mmx54mm |
| Rated voltage |
3.7VSeries structure |
| Rated Capacity |
1.5Ah |
| Serialization |
1S |
|
Internal resistance
|
≤50mΩ |
| Discharge cutoff voltage |
2.8V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface
□ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
| Charging protection voltage |
4.2V |
|
Max.charging voltage
|
4.25V
|
|
Max. charging current
|
0.5A
|
|
Maximum discharge current
|
2A
|
|
Peak current
|
5±2A 2S |
|
Rated discharge current
|
0.2A |
| Charging method |
CC/CV |
Test Report:
|
|
weight
|
55g |
|
Operating temperature
|
Charging
|
0～45℃ |
|
Discharge
|
-20～55℃ |
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months
|
-10～35℃
|
|
C1 Cycle life
Cycle life
|
500 Times
|
| price |
RMB:¥ 00.00 |
|
Delivery period
|
25 Working day
|
