High Discharge Lithium Polymer Battery Blue Thermoplastic Film Shell Color

li polymer battery

lithium ion polymer rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

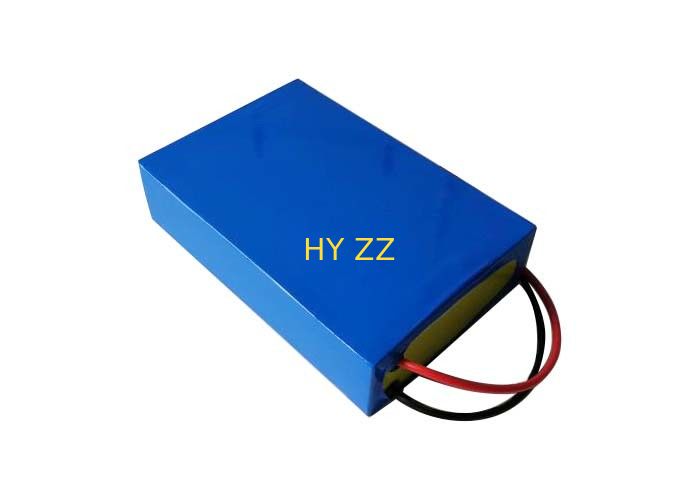

High Discharge Lithium Polymer Battery Blue Thermoplastic Film Shell Color

Product Details

Name:

Lithium Ion Polymer Battery

Model:

48V 36Ah

L X W X H:

280mmX160mmx124mm

Application:

Electric Car, Tricycle, Four-wheeled Vehicle, Electric Motorcycle

Shell Color:

Blue Thermoplastic Film

C1 Cycle Life Cycle Life:

1200 Times

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

Pinsheng A Grade NMC 3.7V 10Ah 20Ah Lithium Battery Pouch Cell for Energy Storage

Get Best Price

Video

PINSHENG A Grade NMC 3.7V 10Ah 20Ah Pouch Cell Lithium Battery for Energy Storage

Get Best Price

Video

3.7V 10Ah 20Ah Lithium-ion Pouch Cell A Grade 2000-6000 Times for Battery Module

Get Best Price

Video

Long Cycle Life Lithium Ion Polymer Battery NMC 3.7V 10Ah 20Ah Lithium-Ion Pouch Cell

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

High Discharge Lithium Polymer Battery Blue Thermoplastic Film Shell Color

Model: 48V 36Ah

Dimension: 280mmX160mmx124mm

Features:

ternary soft pack lithium battery, 14S; charge cut-off voltage :58.8V; discharge cut-off voltage :39.2V; rated current :30A ; electric large working current :50A ; weight :9KG

Applications: electric car, electric vehicles, tricycles, Four-wheeled vehicle, electric motorcycles

Advantage of li-ion battery:

long cycle life
low weight ,small size
fast charge/discharge with large current
high temperature resistant
large capacity
no memory effect
enviroment-friendly

			Number	HY00091
			Version	A0
	HYLF/48/36-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Electric car battery		Three yuan soft pack power battery Description: The battery pack is an epoxy resin plate heating plastic sleeve package.
product code	HYLF/48/36-001
L x W x H	280mmX160mmx124mm
Rated voltage	48VSeries structure
Rated Capacity	36Ah
Serialization	14S
Internal resistance	≤100mΩ
Discharge cutoff voltage	39.2V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White+ black □ light blue ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact □ socket
Charging protection voltage	58.8V
Max.charging voltage	59.5V
Max. charging current	7A
Maximum discharge current	50A
Peak current	100±5 2S
Rated discharge current	30A
Charging method	CC/CV		Different rate discharge curves:
weight	9.0Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1200 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
