Place of Origin:
Changsha, China
Brand Name:
HYZZ
Certification:
ISO9001, CE, CB, UN38.3
Document:
Video
Video
Video

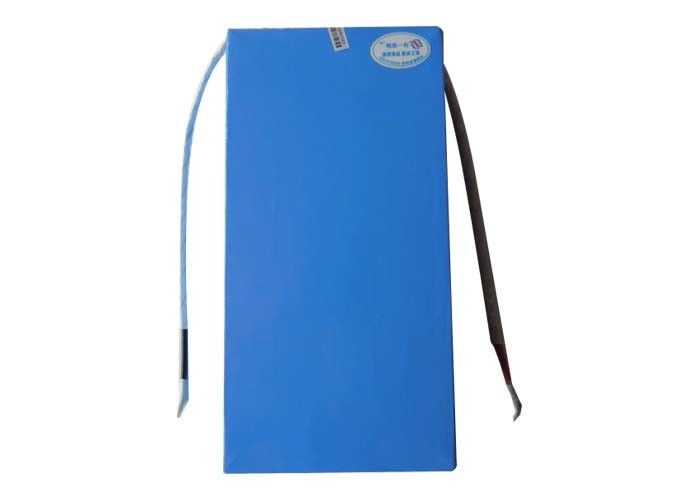

High Current Discharge Lithium Ion Polymer Battery 48V 48Ah Electric Car Battery
Model: 48V 48Ah
Dimension: 355mmX174mmx104mm
Features: ternary soft pack lithium battery, 14S; charge cut-off voltage :58.8V; discharge cut-off voltage: 39.2V; rated current:30A; electric large working current :50A; weight: 11KG
Applications:
Golf trolleys, Golf carts,
UPS backup
Fire alarm and security systems
Telecommunication equipment
Electric equipment and telemeter equipment
Light equipment,
Wireless lawn movers vacuum cleaner and washing machine
Toys and consumer electronics
Solar systems
Portable power tools measuring and medical equipment Portable video camera portable personal computer
Garden lighting
Sound systems
And etc.
|
|
Number | HY00090 | ||
| Version | A0 | |||
|
HYLF/48/48-001 Battery pack specification |
Date |
2019-5-7 |
||
| 1．Basic characteristics |
Product picture |
|||
|
Product name |
Electric car battery |
Three yuan soft pack power battery
Description: The battery pack is an epoxy resin plate heating plastic sleeve package.
|
||
|
product code |
HYLF/48/60-001 | |||
| L x W x H | 355mmX174mmx104mm | |||
| Rated voltage | 48VSeries structure | |||
| Rated Capacity | 48Ah | |||
| Serialization | 14S | |||
|
Internal resistance |
≤100mΩ | |||
| Discharge cutoff voltage | 39.2V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White+ black
□ light blue
☑ Blue thermoplastic film
Charging and discharging interface □ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
□ socket
|
||
| Charging protection voltage | 58.8V | |||
|
Max.charging voltage |
59.5V |
|||
|
Max. charging current |
9A |
|||
|
Maximum discharge current |
50A |
|||
|
Peak current |
100±5 2S | |||
|
Rated discharge current |
30A | |||
| Charging method | CC/CV |
Different rate discharge curves:
|
||
|
weight |
11.0Kg | |||
|
Operating temperature
|
Charging |
0～45℃ | ||
|
Discharge |
-20～55℃ | |||
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months |
-10～35℃ |
|||
|
C1 Cycle life Cycle life |
1200 Times |
|||
| price | RMB:¥ 00.00 | |||
|
Delivery period |
25 Working day |
|||
