Portable LifePO4 Lithium Battery 12V 50AH For Electric Wheelchair / Power

Portable LifePO4 Lithium Battery 12V 50AH For Electric Wheelchair / Power

lithium iron phosphate battery

lifepo4 rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Contact Us
Request A Quote
Product Details
Name:
LifePO4 Lithium Battery
Model:
12V 50AH
L X W X H:
350mm*152mm*83mm
Application:
Electric Wheelchair, Power
Peak Current:
30±5A 2S
Rated Discharge Current:
10A
Payment & Shipping Terms
Packaging Details
foam, wooden box / foam, carton, tray
Delivery Time
22 days
Payment Terms
L/C, T/T
Supply Ability
10,000 PCS per month
Product Description

Portable LifePO4 Lithium Battery 12V 50AH For Electric Wheelchair / Power



Model: 12V 50AH

Dimension: 350mm*152mm*83mm

Parameter:

working environment:-20℃-60℃;Lithium iron phosphate battery 4S

Charge cutoff voltage:14.4V;Discharge cutoff voltage:9.6V;

Output:12V5A; Male:DC5.5-2.1; connector:5V1A USB;charging port:Weipu WS24-2 core socket; 1 pin is positive, 2 pin is negative, sheet metal shell



Features
1. Different capacity battery cells for options.
2. Green product, long standby time, one year wrranty, excellent safety performance.
3. Short circuit testing passed, overcharge testing passed.
4. Best sale service and good price.
5. High capacity, high level platform, long working hours, long cycle life,



Application : widely used in li-ion battery, 18650 li-ion battery, polymer lithium battery,lifepo4 battery.
1) Communication device: communication base station, handheld road test instruments, portable communication tester, portable radio station.
2) Medical instruments: monitor, electrocardiogram machine, portable type-B ultrasonic, defibrillator, breathing machine.
3) Industrial instrument:water quality testing meter, geotechnical tester, laser orientation instrument car arrester.
4) Electric tools: handheld electric drill, moped, golf carts.









  Number HY00074
Version A0

HYLF/12/50-001

Battery pack specification

Date

2019-5-7

1.Basic characteristics

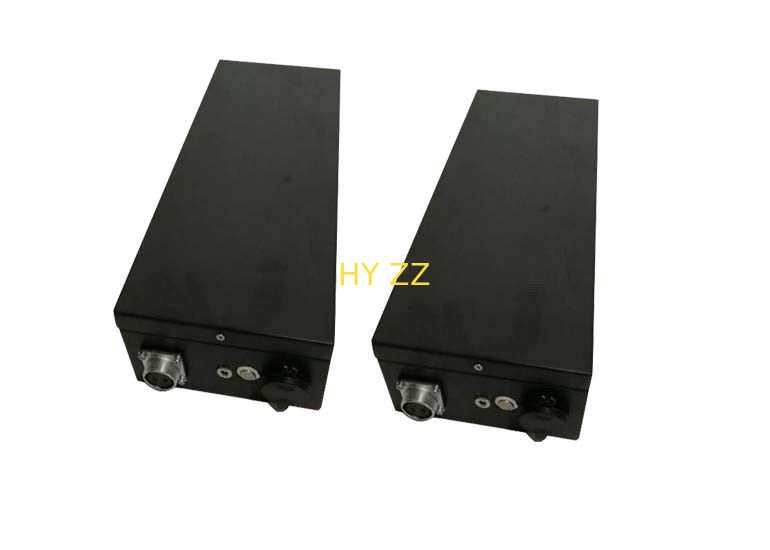

Product picture

Product name

Industrial lithium battery

Batteries:3.2V6.5AHLithium iron phosphate cylinder 3.2V6.5AH



Shell material: epoxy resin board packaging, optional sheet metal, plastic shell, aluminum alloy, etc.

product code

HYLF/12/50-001
L x W x H 350mm*152mm*83mm
Rated voltage 12VSeries structure
Rated Capacity 50Ah
Serialization 8P4S

Internal resistance

≤100mΩ
Discharge cutoff voltage 9.6V

Shell color



☑ Sub black



□ Bright gray



□ +Fruit green + bright gray two-color



□ White



□ Blue thermoplastic film



Charging and discharging interface

□ Wall terminal



□ Anderson



☑ Navigation plug



□ Positive and negative lines



□ Pole



□ Hardware contact



Charging protection voltage 14.4V

Max.charging voltage

14.6V

Max. charging current

10A

Maximum discharge current

20A

Peak current

30±5A 2S

Rated discharge current

10A
Charging method CC/CV



12V5A,DC5.5-2.1,5V1A USB ,WS24-2;1,2.Front panel content: 12V5A output, DC5.5-2.1 male, 5V1A USB interface, charging port is Weipu WS24-2 core socket; 1 pin is positive, 2 pin is negative.



weight

6.3Kg



Operating temperature



Charging

0~45℃

Discharge

-20~55℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months



-10~35℃

C1 Cycle life

Cycle life

1500 Times

price RMB:¥ 00.00

Delivery period

25 Working day
