Home > products > LifePO4 Lithium Battery >

Small Size LifePO4 Lithium Battery 12Volt 50AH High Temperature Resistance

lithium iron phosphate battery

lifepo4 rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Document:

Product Brochure PDF

Request A Quote

Small Size LifePO4 Lithium Battery 12Volt 50AH High Temperature Resistance

Product Details

Name:

LifePO4 Lithium Battery

Model:

12V 50AH

L X W X H:

350mm*152mm*83mm

Working Temperature:

-20°C ~ 60°C

Discharge Cutoff Voltage:

9.6V

Charging Protection Voltage:

14.4V

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

Pinsheng Lithium Battery 15kWh 51.2V 280Ah 300Ah LiFePO4 Battery Pack Solar Energy Storage Battery for Home Use

Get Best Price

Video

Pinsheng Lithium Battery 15kWh 51.2V 280Ah 300Ah Home LiFePO4 Battery Pack Solar Energy Storage Battery

Get Best Price

Video

PINSHENG Lithium Battery 15kWh 51.2V 280Ah 300Ah Home LiFePO4 Battery Pack Solar Energy Storage Battery for Home Use

Get Best Price

Video

Pinsheng 51.2V 280Ah Solar Lithium Battery Pack 10kwh 14Kwh 15kwh Solar Energy System 48V 280Ah LiFePO4 Energy Storage Battery

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

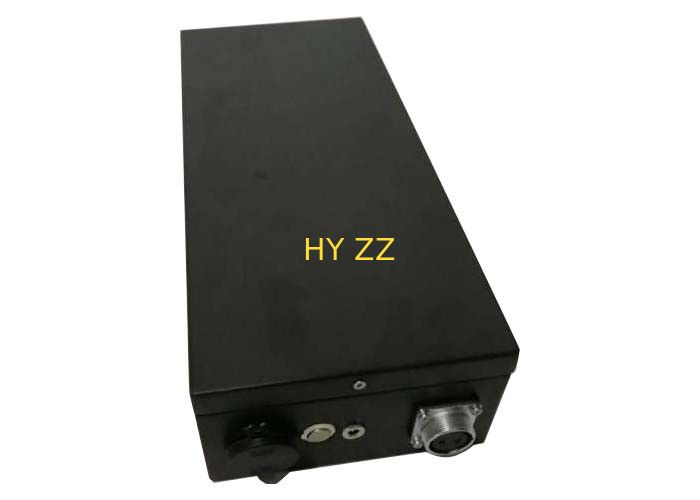

Small Size LifePO4 Lithium Battery 12Volt 50AH High Temperature Resistance

Model: 12V 50AH

Dimension: 350mm*152mm*83mm

Parameter:

working environment:-20℃-60℃;Lithium iron phosphate battery 4S

Charge cutoff voltage:14.4V;Discharge cutoff voltage:9.6V;

Output:12V5A; Male:DC5.5-2.1; connector:5V1A USB;charging port:Weipu WS24-2 core socket; 1 pin is positive, 2 pin is negative, sheet metal shell

Application: Electric car, electric wheelchair, power

			Number	HY00074
			Version	A0
	HYLF/12/50-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Industrial lithium battery		Batteries:3.2V6.5AHLithium iron phosphate cylinder 3.2V6.5AH Shell material: epoxy resin board packaging, optional sheet metal, plastic shell, aluminum alloy, etc.
product code	HYLF/12/50-001
L x W x H	350mm152mm83mm
Rated voltage	12VSeries structure
Rated Capacity	50Ah
Serialization	8P4S
Internal resistance	≤100mΩ
Discharge cutoff voltage	9.6V		Shell color ☑ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White □ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson ☑ Navigation plug □ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	14.4V
Max.charging voltage	14.6V
Max. charging current	10A
Maximum discharge current	20A
Peak current	30±5A 2S
Rated discharge current	10A
Charging method	CC/CV		12V5A,DC5.5-2.1,5V1A USB ,WS24-2；1,2.Front panel content: 12V5A output, DC5.5-2.1 male, 5V1A USB interface, charging port is Weipu WS24-2 core socket; 1 pin is positive, 2 pin is negative.
weight	6.3Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day

Features

1. High temperature resistance

2. High working voltage for single battery cells

3. Pollution-free

4. Long cycle life(≥1800 times)

5. No memory effect

7. With short-circuit production function, safe and reliable

8. Factory price& High quality

9. No self discharge

10. Light weight, small size
