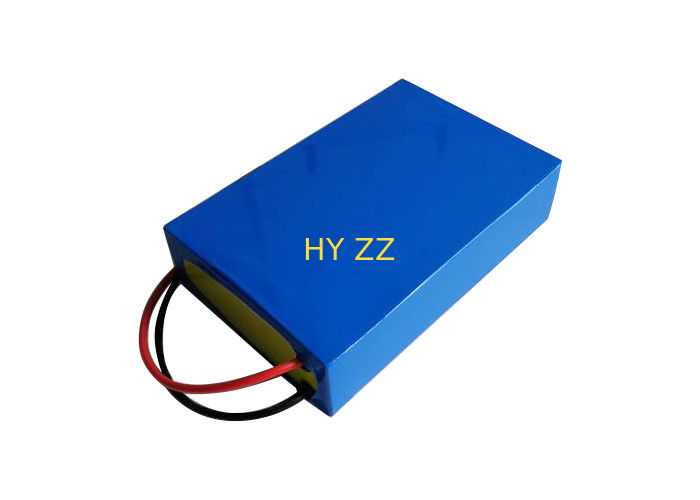

Name: 48V 36Ah Lithium Ion Polymer Battery , High Voltage Lithium Polymer Batteries
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: HY00091
Price: 3,841.00 USD
Availability: InStock

Home > products > Lithium Ion Polymer Battery >

48V 36Ah Lithium Ion Polymer Battery , High Voltage Lithium Polymer Batteries

li polymer battery

lithium ion polymer rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Model Number:

HY00091

Document:

Product Brochure PDF

Request A Quote

48V 36Ah Lithium Ion Polymer Battery , High Voltage Lithium Polymer Batteries

Product Details

Name:

Rechargeable Li Ion Battery

Model:

48V 36Ah

L X W X H:

280mmX160mmx124mm

Application:

Electric Car, Tricycle, Four-wheeled Vehicle, Electric Motorcycle

Charge Cut-off Voltage:

58.8V

Weight:

9KG

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

Pinsheng A Grade NMC 3.7V 10Ah 20Ah Lithium Battery Pouch Cell for Energy Storage

Get Best Price

Video

PINSHENG A Grade NMC 3.7V 10Ah 20Ah Pouch Cell Lithium Battery for Energy Storage

Get Best Price

Video

3.7V 10Ah 20Ah Lithium-ion Pouch Cell A Grade 2000-6000 Times for Battery Module

Get Best Price

Video

Long Cycle Life Lithium Ion Polymer Battery NMC 3.7V 10Ah 20Ah Lithium-Ion Pouch Cell

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

48V 36Ah Lithium Ion Polymer Battery , High Voltage Lithium Polymer Batteries

Model: 48V 36Ah

Dimension: 280mmX160mmx124mm

Features:

ternary soft pack lithium battery, 14S; charge cut-off voltage :58.8V; discharge cut-off voltage :39.2V; rated current :30A ; electric large working current :50A ; weight :9KG

Advantage of li-ion battery:

long cycle life
low weight ,small size
fast charge/discharge with large current
high temperature resistant
large capacity
no memory effect
enviroment-friendly

Applications:

Golf trolleys, Golf carts,
UPS backup
Fire alarm and security systems
Telecommunication equipment
Electric equipment and telemeter equipment
Light equipment,
Wireless lawn movers vacuum cleaner and washing machine
Toys and consumer electronics
Solar systems
Portable power tools measuring and medical equipment Portable video camera portable personal computer
Garden lighting
Sound systems
And etc

			Number	HY00091
			Version	A0
	HYLF/48/36-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Electric car battery		Three yuan soft pack power battery Description: The battery pack is an epoxy resin plate heating plastic sleeve package.
product code	HYLF/48/36-001
L x W x H	280mmX160mmx124mm
Rated voltage	48VSeries structure
Rated Capacity	36Ah
Serialization	14S
Internal resistance	≤100mΩ
Discharge cutoff voltage	39.2V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White+ black □ light blue ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact □ socket
Charging protection voltage	58.8V
Max.charging voltage	59.5V
Max. charging current	7A
Maximum discharge current	50A
Peak current	100±5 2S
Rated discharge current	30A
Charging method	CC/CV		Different rate discharge curves:
weight	9.0Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1200 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
