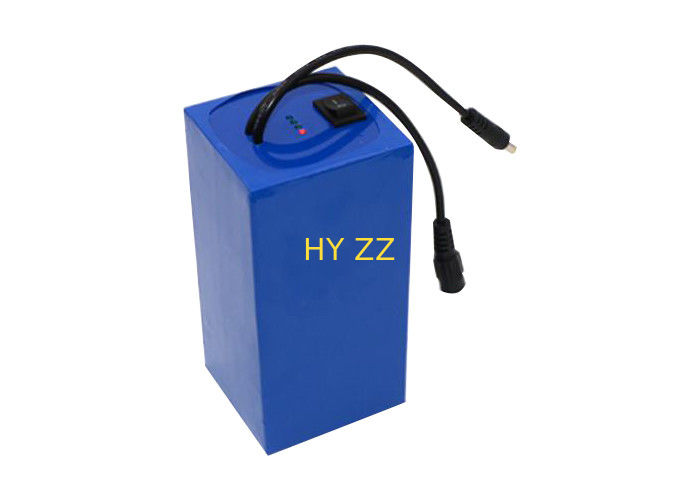

Rechargeable 18650 Lithium Ion Battery 24V 12Ah For Measuring Instruments
Model: 24V 12Ah
Dimension:148mmX82mmx80mm;
Feature:
Cylinder 18650/7S3P; Charge cut-off voltage:29.4V, discharge cut-off voltage :19.6V, operating current :12A, maximum 30A, DC terminal, weight:1.9KG.
Application Lithium battery:
Mobile phones, tablets, Bluetooth headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.
Application Lithium battery pack:
E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.
Tips: If you see our products and have questions about the products, please contact our account manager to send your specific needs, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!
|
|
|
Number |
HY00083 |
| Version |
A0 |
|
HYLF/24/12-001
Battery pack specification
|
Date
|
2019-5-7
|
| 1．Basic characteristics |
Product picture
|
|
Product name
|
Industrial lithium battery
|
Batteries:Battery: Ternary lithium battery
:,,DCBattery pack: battery indicator, output switch, DC head
|
|
product code
|
HYLF/24/12-001 |
| L x W x H |
148mmX82mmx80mm |
| Rated voltage |
24VSeries structure |
| Rated Capacity |
12Ah |
| Serialization |
7S |
|
Internal resistance
|
≤100mΩ |
| Discharge cutoff voltage |
19.6V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White+ black
☑ Blue thermoplastic film
Charging and discharging interface
□ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
| Charging protection voltage |
29.4V |
|
Max.charging voltage
|
29.75V
|
|
Max. charging current
|
4A
|
|
Maximum discharge current
|
25A
|
|
Peak current
|
40±2 2S |
|
Rated discharge current
|
12A |
| Charging method |
CC/CV |
|
|
weight
|
1.9Kg |
|
Operating temperature
|
Charging
|
0～45℃ |
|
Discharge
|
-20～55℃ |
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months
|
-10～35℃
|
|
C1 Cycle life
Cycle life
|
1500 Times
|
| price |
RMB:¥ 00.00 |
|
Delivery period
|
25 Working day
|
