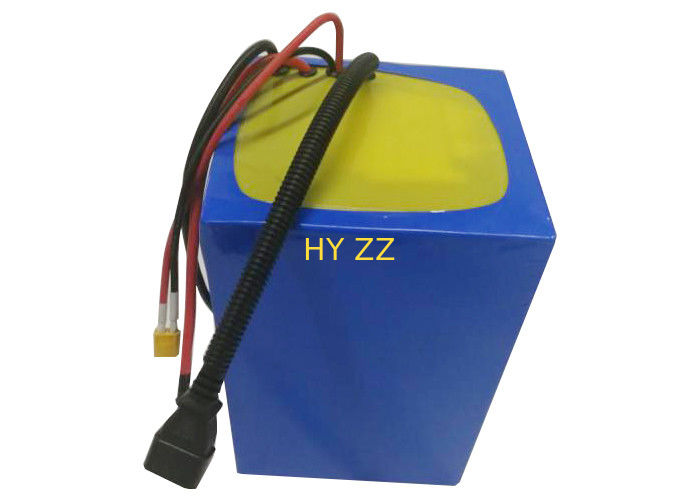

Name: High Capacity Lithium Ion Polymer Battery 72V 40AH For Electric Wheelchair
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: HY00077
Price: 3,841.00 USD
Availability: InStock

Home > products > Lithium Ion Polymer Battery >

High Capacity Lithium Ion Polymer Battery 72V 40AH For Electric Wheelchair

lithium ion polymer rechargeable battery

rechargeable lithium polymer battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Model Number:

HY00077

Document:

Product Brochure PDF

Request A Quote

High Capacity Lithium Ion Polymer Battery 72V 40AH For Electric Wheelchair

Product Details

Name:

Lithium Ion Polymer Battery

Model:

72V 40AH

L X W X H:

350mm*200mm*158mm

Working Temperature:

-20°C ~ 60°C

Charge Cutoff Voltage:

84V

Discharge Cutoff Voltage:

56V

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

Pinsheng A Grade NMC 3.7V 10Ah 20Ah Lithium Battery Pouch Cell for Energy Storage

Get Best Price

Video

PINSHENG A Grade NMC 3.7V 10Ah 20Ah Pouch Cell Lithium Battery for Energy Storage

Get Best Price

Video

3.7V 10Ah 20Ah Lithium-ion Pouch Cell A Grade 2000-6000 Times for Battery Module

Get Best Price

Video

Long Cycle Life Lithium Ion Polymer Battery NMC 3.7V 10Ah 20Ah Lithium-Ion Pouch Cell

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

High Capacity Lithium Ion Polymer Battery 72V 40AH For Electric Wheelchair

Model: 72V 40AH

Dimension: 350mm*200mm*158mm；

Parameter:

working environment:-20℃-60℃;Ternary battery 20S;

Charge cutoff voltage:84V;Discharge cutoff voltage:56V;

Continuous 50A discharge;Discharge is 50A red bipolar Anderson terminal, charging for XT60 female,USB5V2A output

Application: Electric car, electric wheelchair, power

Main Features:

High Capacity and Stable Discharge Voltage
stable performance
Small internal resistance
Safety and reliable(with BMS)
Pollution free, long cycle life
No memory effect
Never explosion,stable performance,environment friendly
Capacity and size could be customized
OEM /ODM orders are available

			Number	HY00077
			Version	A0
	HYLF/72/40-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Industrial lithium battery		Batteries:3.6V40AHTernary lithium battery 3.6V40AH
product code	HYLF/72/40-001
L x W x H	350mm200mm158mm
Rated voltage	72VSeries structure
Rated Capacity	40Ah
Serialization	20S
Internal resistance	≤100mΩ
Discharge cutoff voltage	56V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	84V
Max.charging voltage	85V
Max. charging current	8A
Maximum discharge current	50A
Peak current	100±2 2S
Rated discharge current	50A
Charging method	CC/CV		50A,XT60,USB5V2A.Front panel content: discharge is 50A red bipolar Anderson terminal, charging is XT60 female, USB5V2A output
weight	19.5Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
