Place of Origin:
Changsha, China
Brand Name:
HYZZ
Certification:
ISO9001, CE, CB, UN38.3

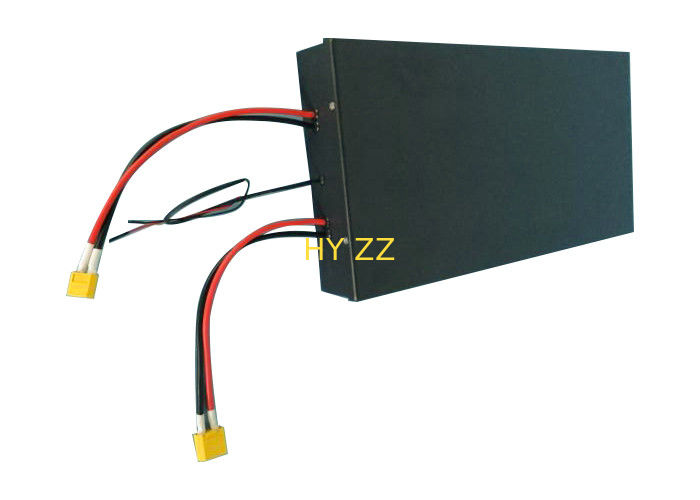

High Discharge Industrial Lithium Batteries 72V For Engineering Equipment
Model: 72V 12.5AH
Specification: 380mm*208mm*30mm
Parameters: -20°C-60°C working environment, ternary lithium battery, charge cut-off voltage 84V, discharge cut-off voltage 56V, operating current 12.5A, maximum operating current 25A, discharge port is XT90, charging port 5557 2Pin terminal, metal case
Application:
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system
Matters Needing Attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 3.2V-3.3V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevant connection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above. It won’t be within our company warranty.
|
|
Number | HY00069 | ||
| Version | A0 | |||
|
HYLF/72/12.5-001 Battery pack specification |
Date |
2019-5-7 |
||
| 1．Basic characteristics |
Product picture |
|||
|
Product name |
Industrial lithium battery |
Batteries:-3.6V12.5AHTernary lithium battery -3.6V12.5AH
Shell material: epoxy resin board packaging, optional sheet metal, plastic shell, aluminum alloy, etc.
|
||
|
product code |
HYLF/72/12.5-001 | |||
| L x W x H | 380mm*208mm*30mm | |||
| Rated voltage | 72VSeries structure | |||
| Rated Capacity | 12.5Ah | |||
| Serialization | 20S | |||
|
Internal resistance |
≤100mΩ | |||
| Discharge cutoff voltage | 56V |
Shell color
☑ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
□ Blue thermoplastic film
Charging and discharging interface □ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
||
| Charging protection voltage | 84V | |||
|
Max.charging voltage |
85V |
|||
|
Max. charging current |
6A
|
|||
|
Maximum discharge current |
25A
|
|||
|
Peak current |
50±2A 2S | |||
|
Rated discharge current |
12.5A | |||
| Charging method | CC/CV |
|
||
|
weight |
11Kg | |||
|
Operating temperature
|
Charging |
0～45℃ | ||
|
Discharge |
-20～55℃ | |||
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months |
-10～35℃ |
|||
|
C1 Cycle life Cycle life |
1500 Times |
|||
| price | RMB:¥ 00.00 | |||
|
Delivery period |
25 Working day |
|||
