Energy Saving Industrial Grade Battery Li Ion Battery For Electric Vehicle
Model: 24V/200AH
Specification: 286mm*192mm*246mm
Parameters: working temperature -20°C-60°C, ternary lithium battery 7S, continuous working current 150A, 40A charging, protection board external (built-in height increased 25mm), charging upper limit 29.2V, discharge cut-off 19.2V, epoxy resin board Packing, optional sheet metal, plastic shell, aluminum alloy and other shell packaging status, weight 26KG.
As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.
Applications:
1. Golf trolleys, Golf carts,
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Toys and consumer electronics
9. Solar systems 12v
10. Portable power tools measuring and medical equipment
11. Portable video camera portable personal computer
12. Garden lighting
13. Sound systems
|
|
|
Number |
HY00066 |
| Version |
A0 |
|
HYLF/24/200-001
Battery pack specification
|
Date
|
2019-5-7
|
| 1．Basic characteristics |

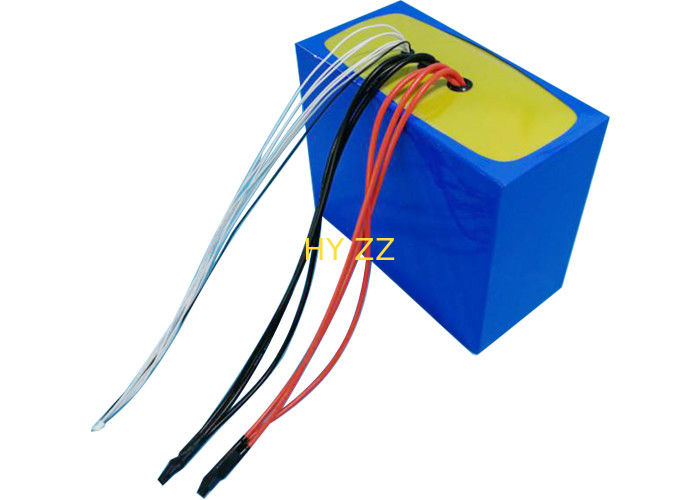

Product picture
|
|
Product name
|
Industrial lithium battery
|
Batteries:-3.6V32AHTernary lithium polymer battery -3.6V32AH
Shell material: epoxy resin board packaging, optional sheet metal, plastic shell, aluminum alloy, etc.
|
|
product code
|
HYLF/24/200-001 |
| L x W x H |
286mm*192mm*246mm |
| Rated voltage |
25.6VSeries structure |
| Rated Capacity |
10Ah |
| Serialization |
6P7S |
|
Internal resistance
|
≤100mΩ |
| Discharge cutoff voltage |
19.6V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface
□ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole
□ Hardware contact
|
| Charging protection voltage |
29.4V |
|
Max.charging voltage
|
29.75V
|
|
Max. charging current
|
40A
|
|
Maximum discharge current
|
150A
|
|
Peak current
|
280±5A 2S |
|
Rated discharge current
|
100A |
| Charging method |
CC/CV |
|
|
weight
|
26Kg |
|
Operating temperature
|
Charging
|
0～45℃ |
|
Discharge
|
-20～55℃ |
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months
|
-10～35℃
|
|
C1 Cycle life
Cycle life
|
1500 Times
|
| price |
RMB:¥ 00.00 |
|
Delivery period
|
25 Working day
|
