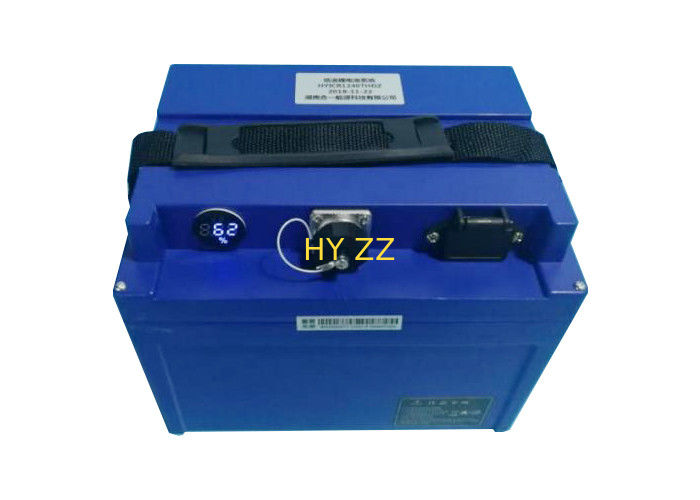

Name: Blue Rechargeable Industrial Lithium Batteries 12V 40Ah For Medical Device
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: HY00059
Price: 3,841.00 USD
Availability: InStock

Home > products > Industrial Lithium Batteries >

Blue Rechargeable Industrial Lithium Batteries 12V 40Ah For Medical Device

industrial lithium ion battery

industrial grade battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Model Number:

HY00059

Document:

Product Brochure PDF

Request A Quote

Blue Rechargeable Industrial Lithium Batteries 12V 40Ah For Medical Device

Product Details

Name:

Industrial Lithium Batteries

Model:

12V 40Ah

L X W X H:

235mm*158mm*175mm

Weight:

11.4Kg

Charge Cut-off Voltage:

16.8V

Working Current:

20A

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

300-1200V ESS Container With IEC Certification And Reliability

Get Best Price

Battery Power 20-100KWh Power Supply Cabinet with High Voltage Charge Limit Voltage

Get Best Price

Sturdy 20-100KWh Lithium Ion Battery Cell High Voltage Telecom Base Station

Get Best Price

>6000 Cycle Life Industrial Lithium Batteries High Voltage For Industrial

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

Blue Rechargeable Industrial Lithium Batteries 12V 40Ah For Medical Device

Model: 12V40Ah

Specification: 235mm*158mm*175mm

Parameters: -20°C ~ 60°C working environment, charge cut-off voltage 16.8V, discharge cut-off voltage 10V, working current 10A, maximum operating current 20A, power display (four colors and 50 different specifications for users to choose)

Application:

1. Electric bicycle, Motorbike, balance scooter, golf cart.
2. Emergency power supply, LED light and flashlight.
3. Consumer applications.
4. Electrical tools.
5. Solar lawn, Remote control.
6. Backup power supply, Medical Device.

			Number	HY00059
			Version	A0
	HYLF/12/40-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Industrial lithium battery		32700-3.2V6AHBattery: lithium iron phosphate 32700-3.2V6AH Configuration: lead-acid battery box, multi-standard and multi-color optional, charging port, discharge port, with power display.
product code	HYLF/12/40-001
L x W x H	235mm158mm175mm
Rated voltage	12.8VSeries structure
Rated Capacity	40Ah
Serialization	7P4S
Internal resistance	≤100mΩ
Discharge cutoff voltage	9.2V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White □ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson ☑ Navigation plug □ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	14.4V
Max.charging voltage	14.6V
Max. charging current	8A
Maximum discharge current	20A
Peak current	50±2A 2S
Rated discharge current	10A
Charging method	CC/CV		Discharge curve:
weight	5.3Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1000 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
