Place of Origin:
Changsha, China
Brand Name:
HYZZ
Certification:
ISO9001, CE, CB, UN38.3
Model Number:
HY00057
Explosion Proof Industrial Lithium Batteries Lithium Ion Battery Pack
Model: 9.6V 6Ah
Specification: 82mm*54mm*72mm
Parameters: -20°C ~ 60°C working environment, charge cut-off voltage 10.95V, discharge cut-off voltage 7.35V, working current 200mA, maximum operating current 4000mA, charging current 1200mA, weight 550g, PVC blue heat shrinkable film
Applications: Measuring instruments, meteorological instruments, power grids, engineering equipment
Features: Safe and reliable, non-explosive under piercing, non-incinerated under over voltage
No memory effect, more than 2000 times cycle-life
Prefect for energy storage and power tool use
About 1/3 the weight of lead-acid batteries
Have no environment pollution
Long cycle-life,high capacity
High energy density
|
|
Number | HY00057 | ||
| Version | A0 | |||
|
HYLF/9.6/6-001 Battery pack specification |
Date |
2019-5-7 |
||
| 1．Basic characteristics |

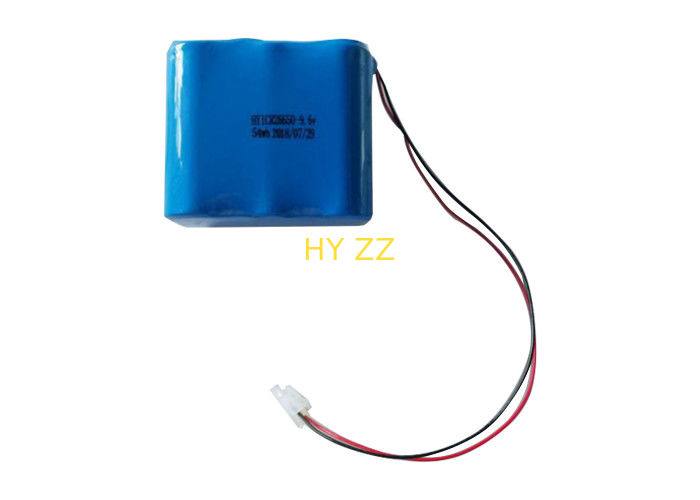

Product picture |
|||
|
Product name |
Industrial lithium battery |
26650-3.2V3AHBattery: lithium iron phosphate, 26650-3.2V3AH | ||
|
product code |
HYLF/9.6/6-001 | |||
| L x W x H | 82mm*54mm*72mm | |||
| Rated voltage | 9.6VSeries structure | |||
| Rated Capacity | 6Ah | |||
| Serialization | 2P3S | |||
|
Internal resistance |
≤100mΩ | |||
| Discharge cutoff voltage | 6.9V |
Shell color
□ Sub black
□ Bright gray
□ +Fruit green + bright gray two-color
□ White
☑ Blue thermoplastic film
Charging and discharging interface □ Wall terminal
□ Anderson
□ Navigation plug
☑ Positive and negative lines
□ Pole □ Hardware contact
|
||
| Charging protection voltage | 10.8V | |||
|
Max.charging voltage |
10.95V |
|||
|
Max. charging current |
3A |
|||
|
Maximum discharge current |
4A |
|||
|
Peak current |
10±2A 2S | |||
|
Rated discharge current |
0.2A | |||
| Charging method | CC/CV |
Discharge curve:
|
||
|
weight |
550g | |||
|
Operating temperature
|
Charging |
0～45℃ | ||
|
Discharge |
-20～55℃ | |||
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months |
-10～35℃ |
|||
|
C1 Cycle life Cycle life |
1200 Times |
|||
| price | RMB:¥ 00.00 | |||
|
Delivery period |
25 Working day |
|||
