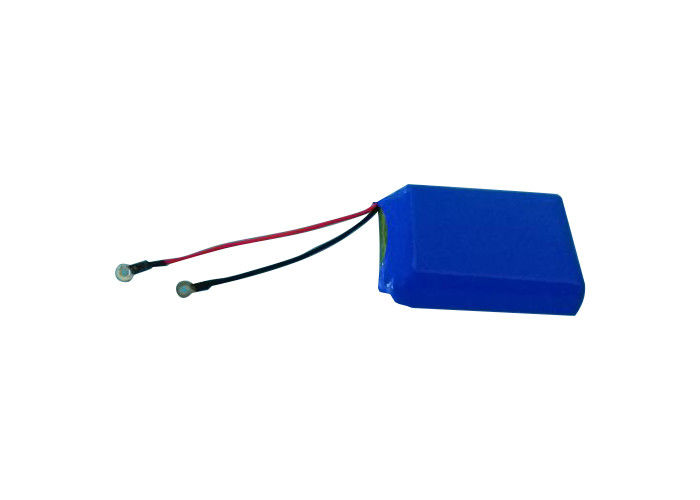

Name: High Density Explosion Proof Battery 3.7V 5000mAh 500 Times Cycle Life
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: HY00056
Price: 3,841.00 USD
Availability: InStock

Home > products > Explosion Proof Battery >

High Density Explosion Proof Battery 3.7V 5000mAh 500 Times Cycle Life

18650 type rechargeable battery

18650 3.7 rechargeable battery

Place of Origin:

Changsha, China

Brand Name:

HYZZ

Certification:

ISO9001, CE, CB, UN38.3

Model Number:

HY00056

Document:

Product Brochure PDF

Request A Quote

High Density Explosion Proof Battery 3.7V 5000mAh 500 Times Cycle Life

Product Details

Name:

Explosion-proof Lithium Battery

Model:

3.7V 5000mAh

L X W X H:

17.5mmX55.3mmx70mm

Working Temperature:

Under -40°C Working Environment

Charge Cut-off Voltage:

4.2V

Aximum Operating Current:

1.1A

Payment & Shipping Terms

Packaging Details

foam, wooden box / foam, carton, tray

Delivery Time

22 days

Payment Terms

L/C, T/T

Supply Ability

10,000 PCS per month

Explosion Proof 18650 Li On Rechargeable Battery For Smart Electronics

Get Best Price

Portable 2000mAh Explosion Proof Battery 18650 3.7 Rechargeable Battery

Get Best Price

4.2V Rechargeable Lithium Ion Battery Used In Electric Cars Explosion Proof

Get Best Price

Small Explosion Proof Battery Lithium Polymer Rechargeable Battery 3 7v 5000mAh

Get Best Price

15616151876

info@pinshengenergy.com

Contact Now

Product Description

High Density Explosion Proof Battery 3.7V 5000mAh 500 Times Cycle Life

Model: 3.7V 5000mAh

Specification: 17.5mmX55.3mmx70mm

Features: -20°C ~ 60°C working environment, lithium manganese oxide battery, charge cut-off voltage 4.2V, discharge cut-off voltage 3.0V, working current 0.5A, maximum operating current 1.1A

Applications: Measuring instruments, meteorological instruments, miner's lamps, mining equipment

Key advantages
High energy density: more energy with less weight and footprint.
High charge currents (short charge period)
High discharge currents
Ultra-high cycling performance (up to six times the battery life of a conventional battery)
High effciency between charging and discharging
Higher continual power available
Wide operating temperature
Predictable end of life due BMS controller
The loweat possible TCO

			Number	HY00056
			Version	A0
	HYLF/3.7/5-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Explosion-proof lithium battery		Working characteristics: cathode material lithium manganate, intrinsically safe mine explosion-proof lithium battery, mainly used in mining and underground operation areas, such as lithium batteries for miners' lamps equipped with workers, and lithium batteries for small instruments.
product code	HYLF/3.7/5-001
L x W x H	17.5mmX55.3mmx70mm
Rated voltage	3.7VSeries structure
Rated Capacity	5000mAh
Serialization	1S
Internal resistance	≤50mΩ
Discharge cutoff voltage	2.8V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	4.2V
Max.charging voltage	4.25V
Max. charging current	0.5A
Maximum discharge current	2A
Peak current	5±2A 2S
Rated discharge current	0.2A
Charging method	CC/CV		Test Report:
weight	55g
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
