Rechargeable High Power Lithium Ion Battery 50A Environmental Friendly

Rechargeable High Power Lithium Ion Battery 50A Environmental Friendly

Model: 48V/60AH

Specifications L x W x H: 340mmX236mmx168mm

Parameters: working temperature -20°C ~ 60°C, ternary lithium battery 14S, BMS system, RS485 communication, continuous working current 50A, instantaneous maximum current 100A, charging upper limit 58.8V, lower discharge limit 39.2V, cold rolled plate shell, spray

Applications: AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts, sweepers, power

environmentally friendly backup power system focus on short-time and high-rate
discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a
wide range of performance and application advantages compared with conventional battery.

Advantages

1. It is high integrated with less installation space.

2. Long life cycle, >3000 times at 80% DOD.

3. It without heavy metals and environment friendly.

4. Maintenance free,there is no memory effect.

5. Internal BMS with full protection,battery has high voltage protection with higher reliability.

Safety

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

			Number	HY.NO0003
			Version	A0
	HYLF/48/60-001 Battery pack specification		Date	2019-5-8

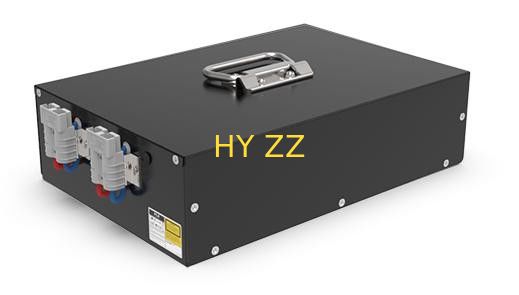

1．Basic characteristics			Product picture
Product name	Lithium battery pack
product code	HYLF/48/60-001
L x W x H	340mmX236mmx168mm
Rated voltage	48V
Rated Capacity	60AH
Serialization	2P14SSoft polymer
Internal resistance	≤120mΩ
Discharge cutoff voltage	42V		Shell color   ☑ Matt black □ Bright gray □ Fruit green + bright gray (two colors) □ Stainless steel     Charging and discharging interface □ Wall terminal ☑ Anderson □ Air plug □ Positive and negative lines   Batteries:3.6v/30Ah
Charging protection voltage	58.8V
Max.charging voltage	59.5V
Max. charging current	12A 0.2C
Max. sustained discharge current	50A
Peak current	100±3A 2S
Rated discharge current	30A
Charging method	CC/CV		Cell discharge curve
weight	23.0Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～45℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life	1500 Times
price	RMB:¥ 00.00		Cycle graph
Delivery period	25 Working day
