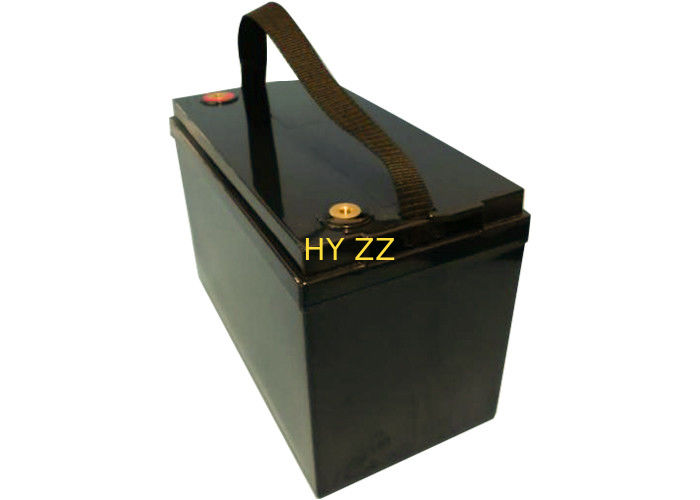

High Voltage Lithium Polymer Batteries , Commercial Lithium Ion Battery

High Voltage Lithium Polymer Batteries , Commercial Lithium Ion Battery

Model: 48V/40AH

Specification L x W x H: 330mm*173mm*216mm

Parameters: working temperature -20°C ~ 60°C, ternary lithium 3S, continuous working current 80A, 50A charging, instantaneous maximum current 150A (2S), M8 pure copper stud interface, charging upper limit 12.6V, discharge cut-off 9V, lead acid outer casing ,weight 12.5KG. (There are four colors and 50 different sizes for users to choose)

Applications
electrical motorcycle,ebike, e-scooter, e-wheelchair, e-golf cart, medical equipment, power tool, electric unicycle etc.

CELLS:
Quality Lithium-ion cells with high power and energy density;
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
No memory effect, low self-discharge rate;
Environment-friendly;
Long cycle life to over 800 times or 2-3 years

			Number	HY00012
			Version	A0
	HYLF/48/40-001 Battery pack specification		Date	2019-5-8
1．Basic characteristics			Product picture
Product name	Lithium battery pack
product code	HYLF/48/40-001
L x W x H	330mm*173mm*216mm
Rated voltage	48V
Rated Capacity	60AH
Serialization	14SSoft polymer
Internal resistance	≤100mΩ
Discharge cutoff voltage	39.2V		Shell color     Shell color   □ Matt black ☑ Bright gray □ Fruit green + bright gray (two colors) □ Stainless steel     Charging and discharging interface □ Wall terminal □ Anderson □ Air plug □ Positive and negative lines ☑ Terminal post     Batteries:3.7v/40Ah
Charging protection voltage	58.8V
Max.charging voltage	59.5V
Max. charging current	8A 0.2C
Max. sustained discharge current	50A
Peak current	100±3A 2S
Rated discharge current	20A
Charging method	CC/CV		Cell discharge curve
weight	11.5Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～45℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life	1500 Times
price	RMB:¥ 00.00		Cycle graph
Delivery period	25 Working day
